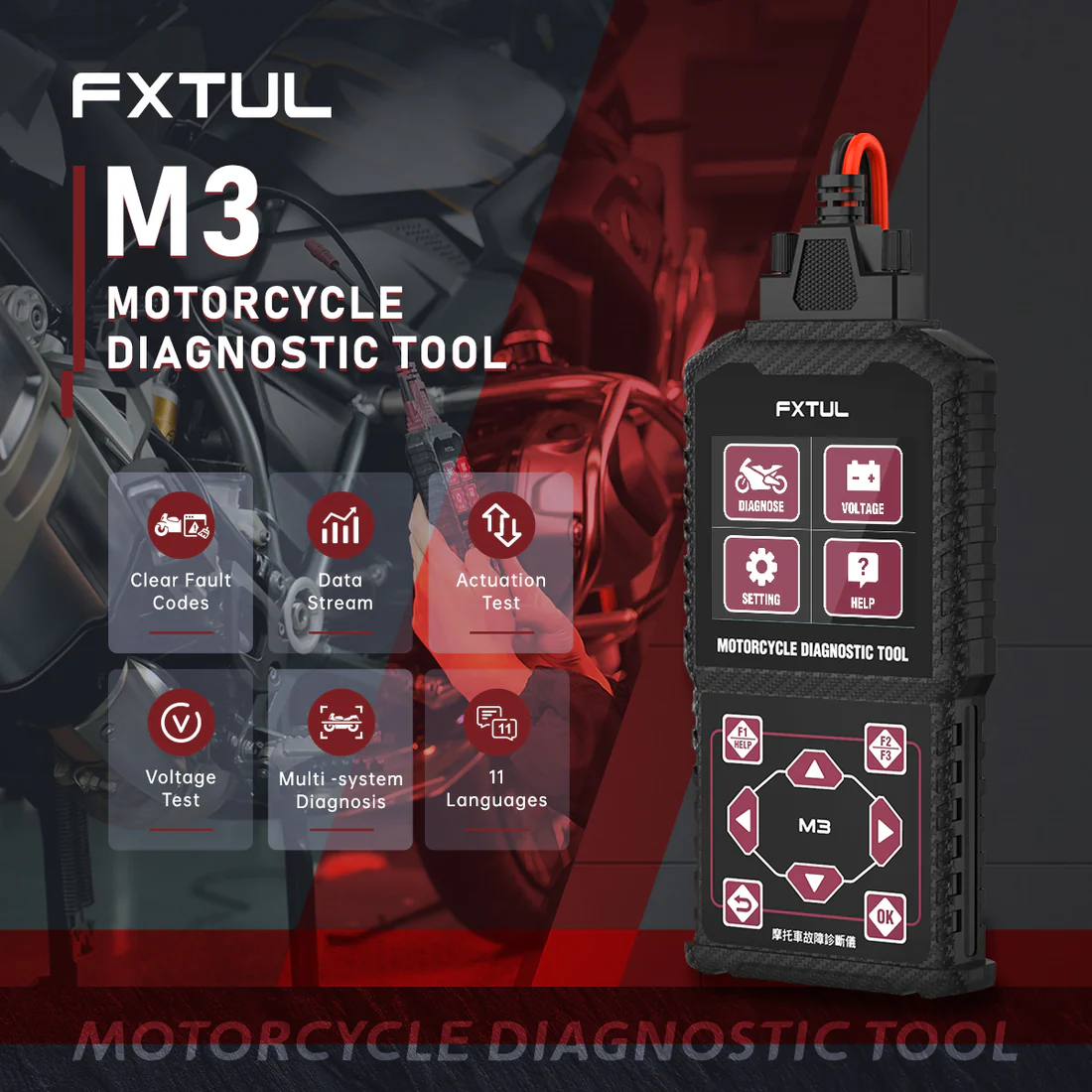

FXTUL M3 Motorcycle Diagnostic Tool OBD2 Code Reader Scan Tool For Honda Yamaha Motorcycle

PRODUCT OVERVIEW

FXTUL M3 is a handheld motorcycle diagnostic tool for mainstream motorcycle brands and can help technicians diagnose problems faster and make repairs. This tool has functions such as voltage detection, multi-language selection, and unit switching. It has a clear interface and is easy to operate. It is a good helper for motorcycle maintenance.

DIAGNOSE

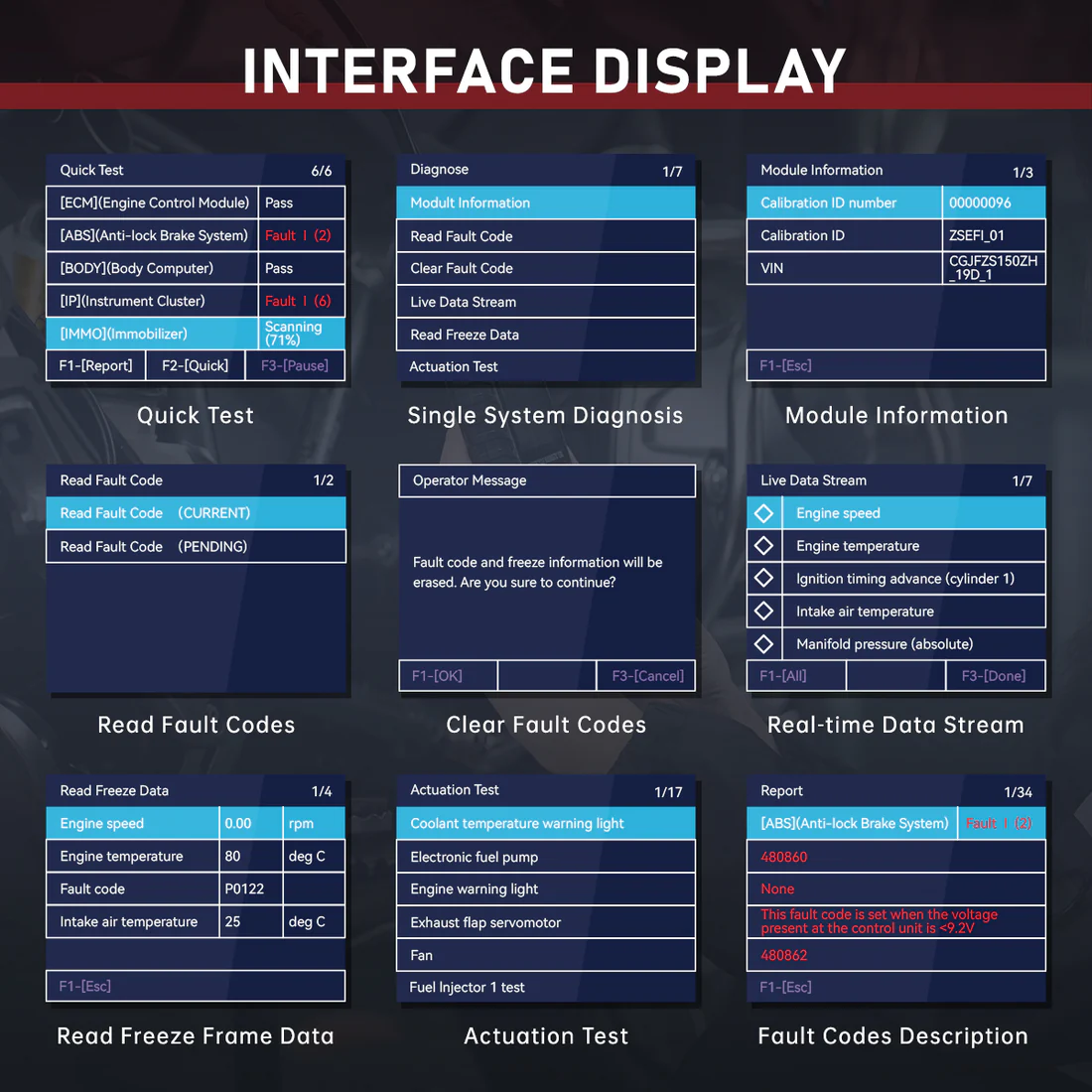

System Diagnosis Features

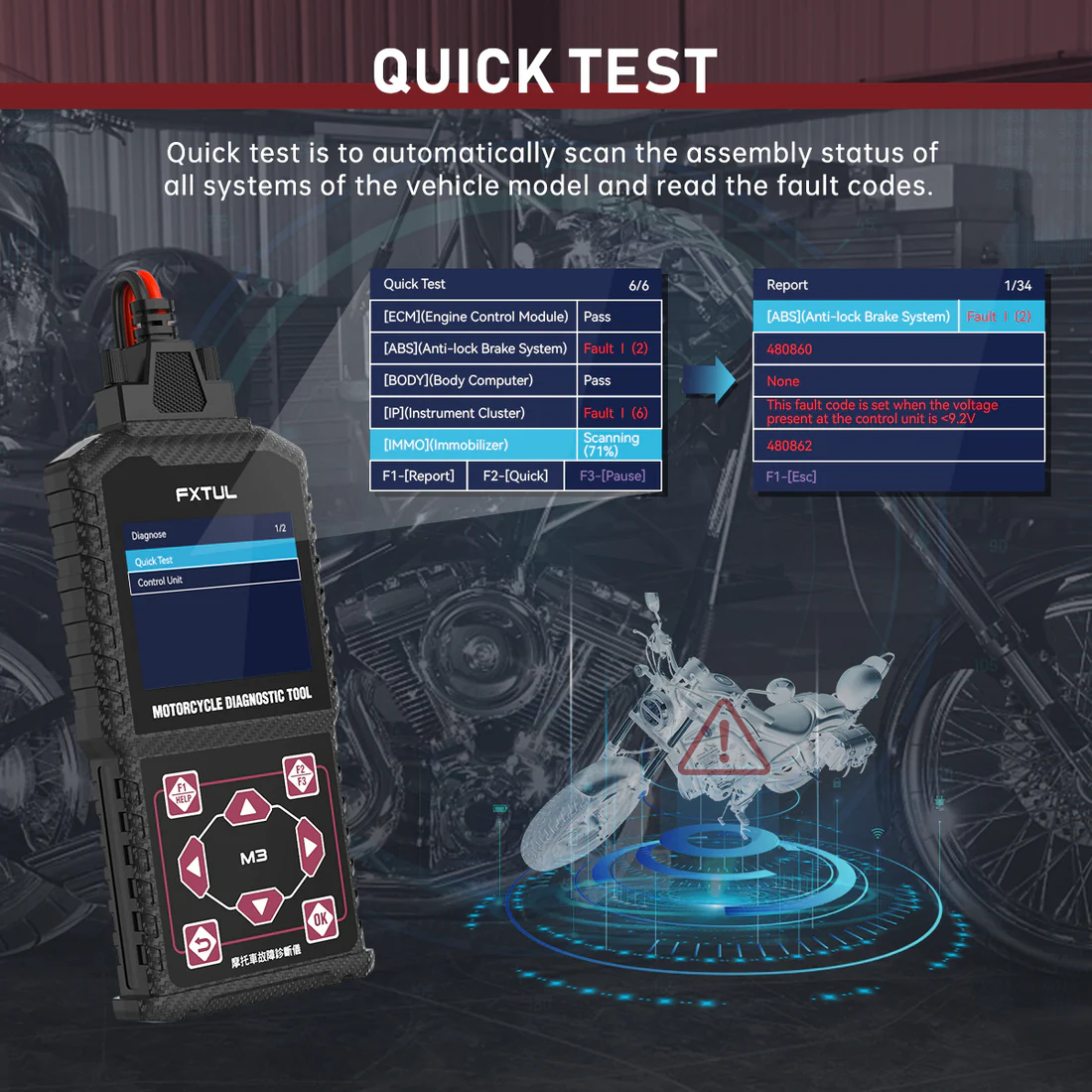

• Supports scanning, identification, and code reading of all systems of the current model, and reports the assembly status of all systems and whether there are fault codes for each system.
• Support to browse the assembly status and fault code description of all systems of the vehicle model.
• Support one-click code clearing of all systems.
• Display data stream with oscillogram.

Functions

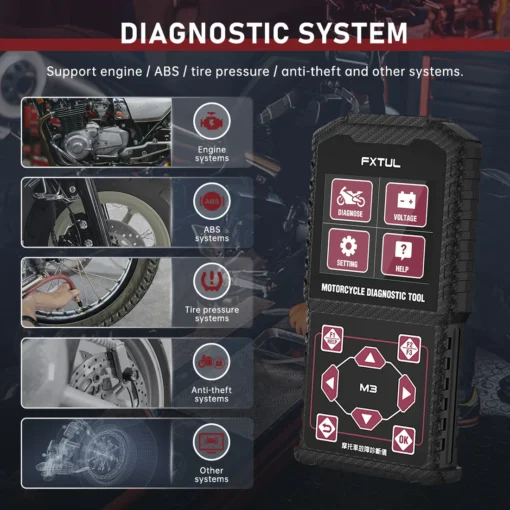

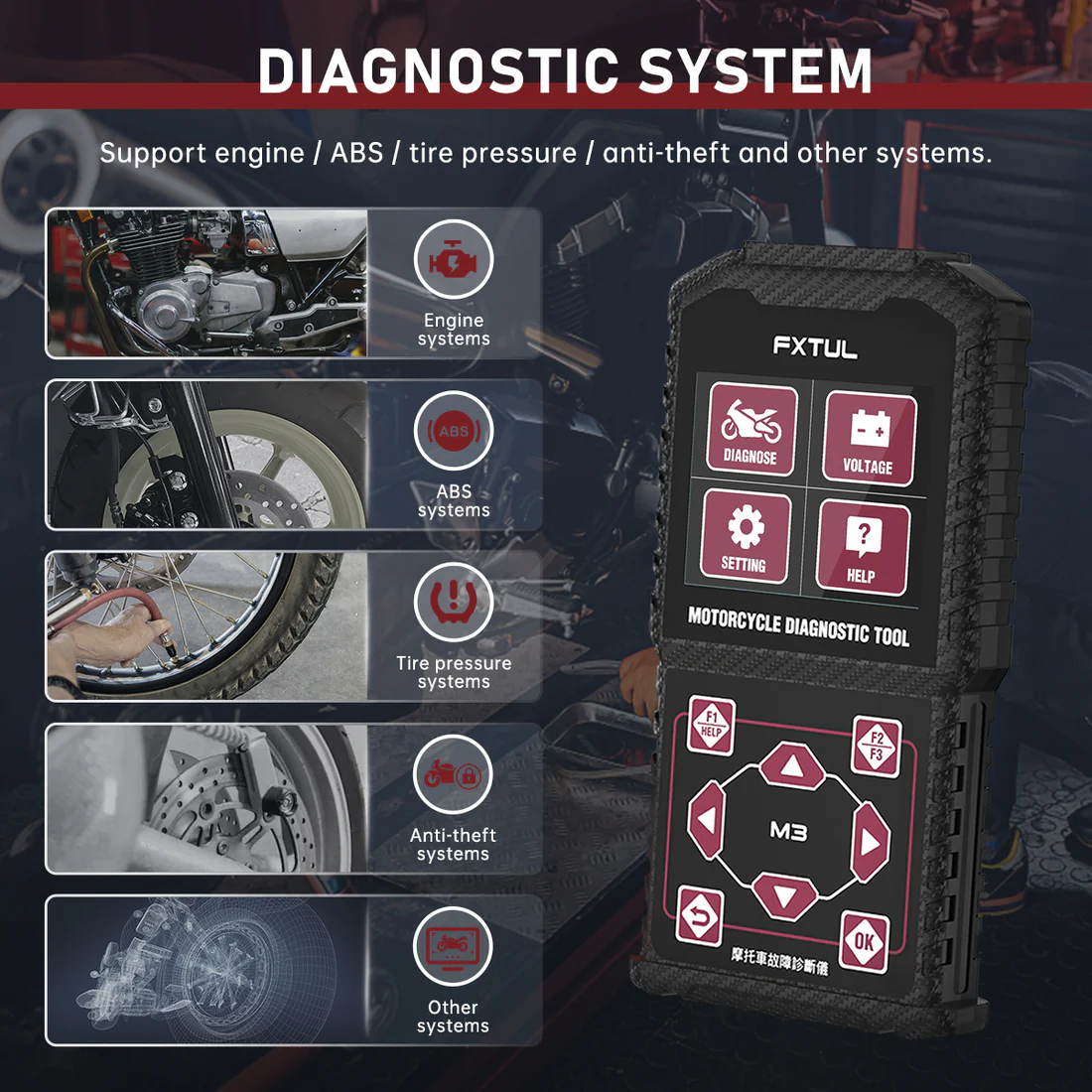

• Support engine / ABS / Tire pressure / Anti-theft and other systems
• Read system information
• Read fault code
• Clear fault code
• Read data stream
• Read freeze frame data
• Actuator test
• Action test
• Service function (including idle speed regulation/throttle position learning, etc.)

Advantages of FXTUL M3 OBD2 Scanner

• No internet connection or setup required
• Lightweight one-handed operation
• Small enough to take it anywhere
• It has an easy-to-view screen and is easy to operate
• Multi-brand compatibility: support the diagnosis of Asian, European, and American multi-brand motorcycles

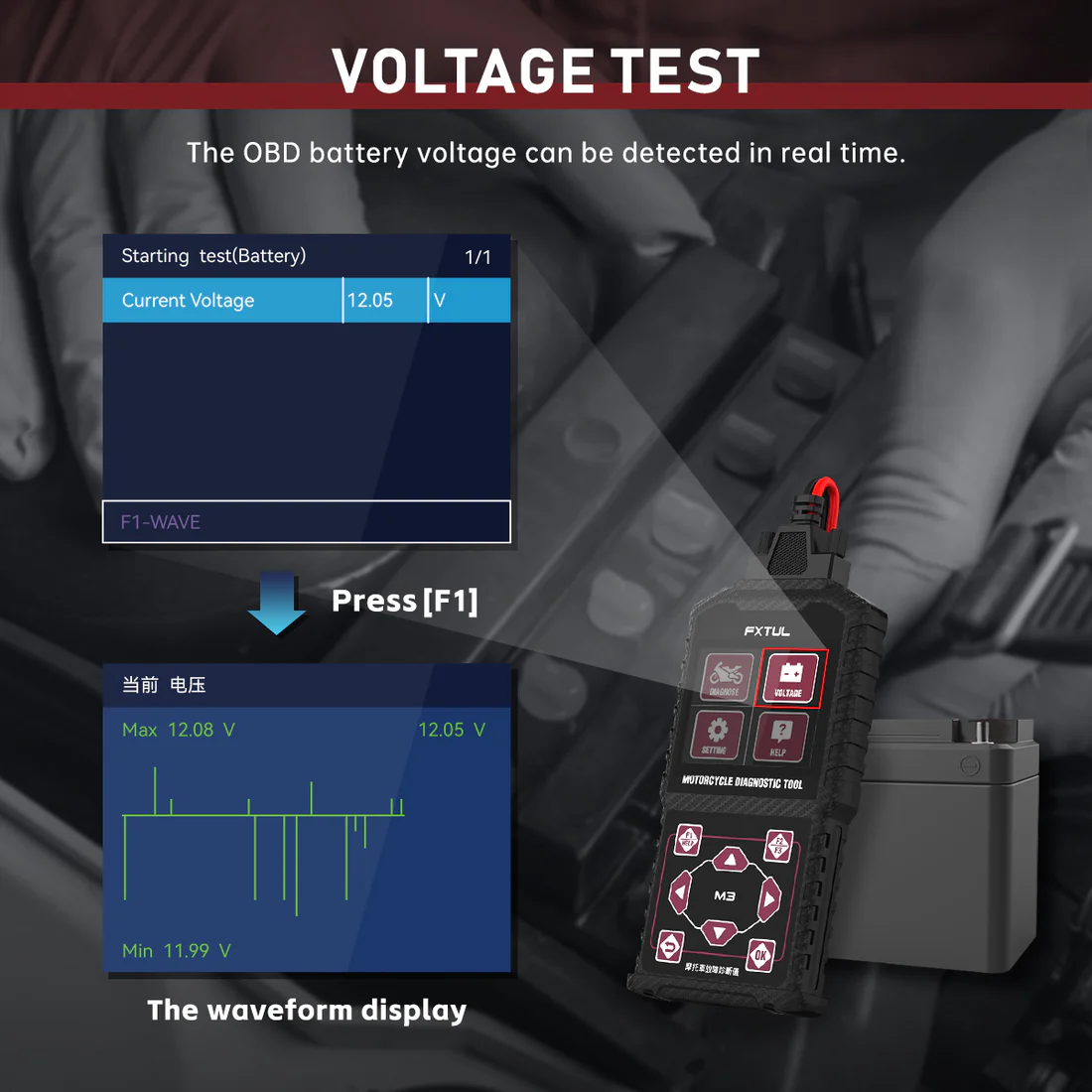

• Support a variety of diagnostic tests such as reading fault codes and voltage detection, etc.
• Support ECU reset
• High data accuracy
• With real-time data

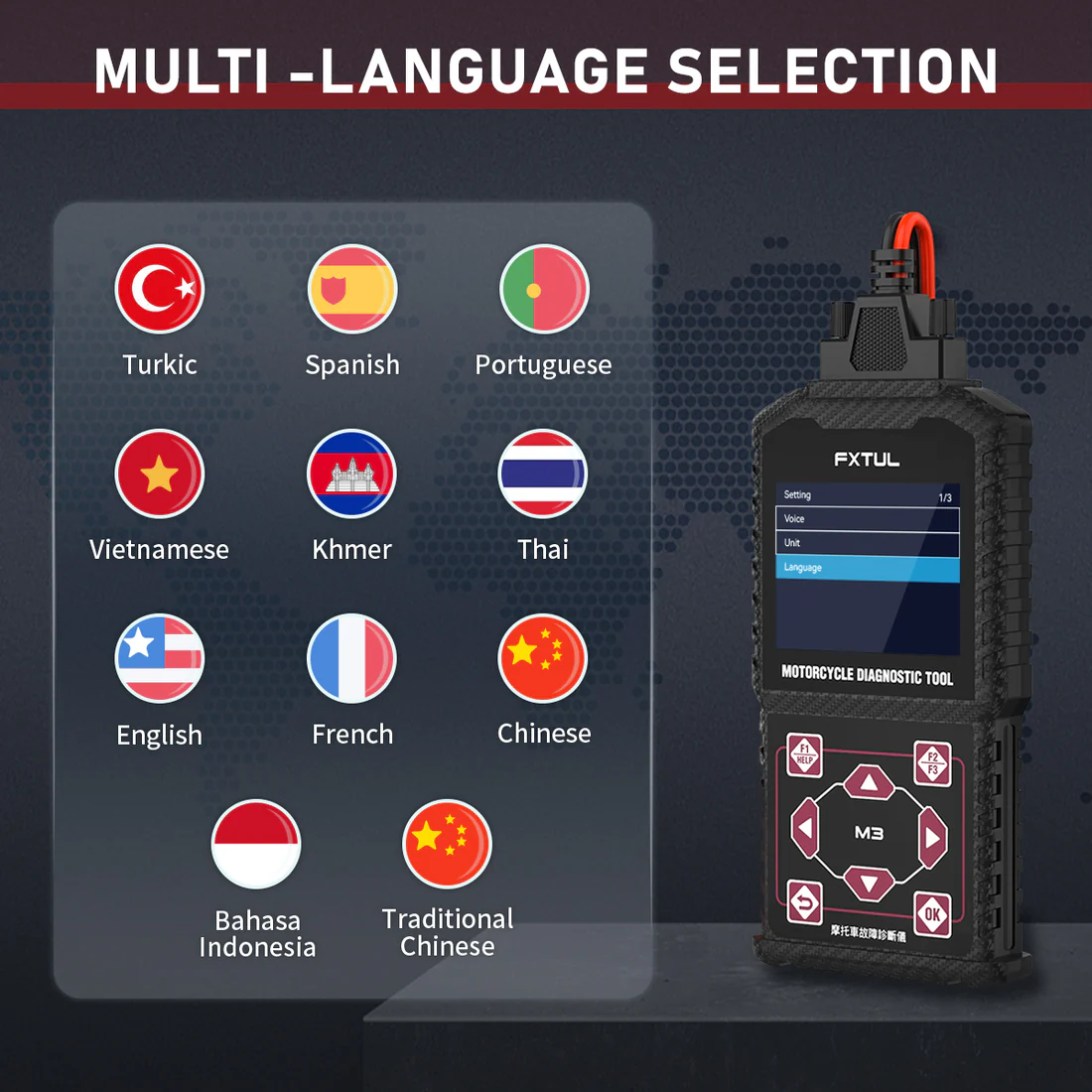

• Support 11 languages
• Cost Effective: Just $56 saves a lot of money and time on repairs. If you are a repair shop mechanic, you will also experience higher customer satisfaction and increased income.

Technical Parameters

• Voltage: DC10-15V
• Display: 2.8 “color screen

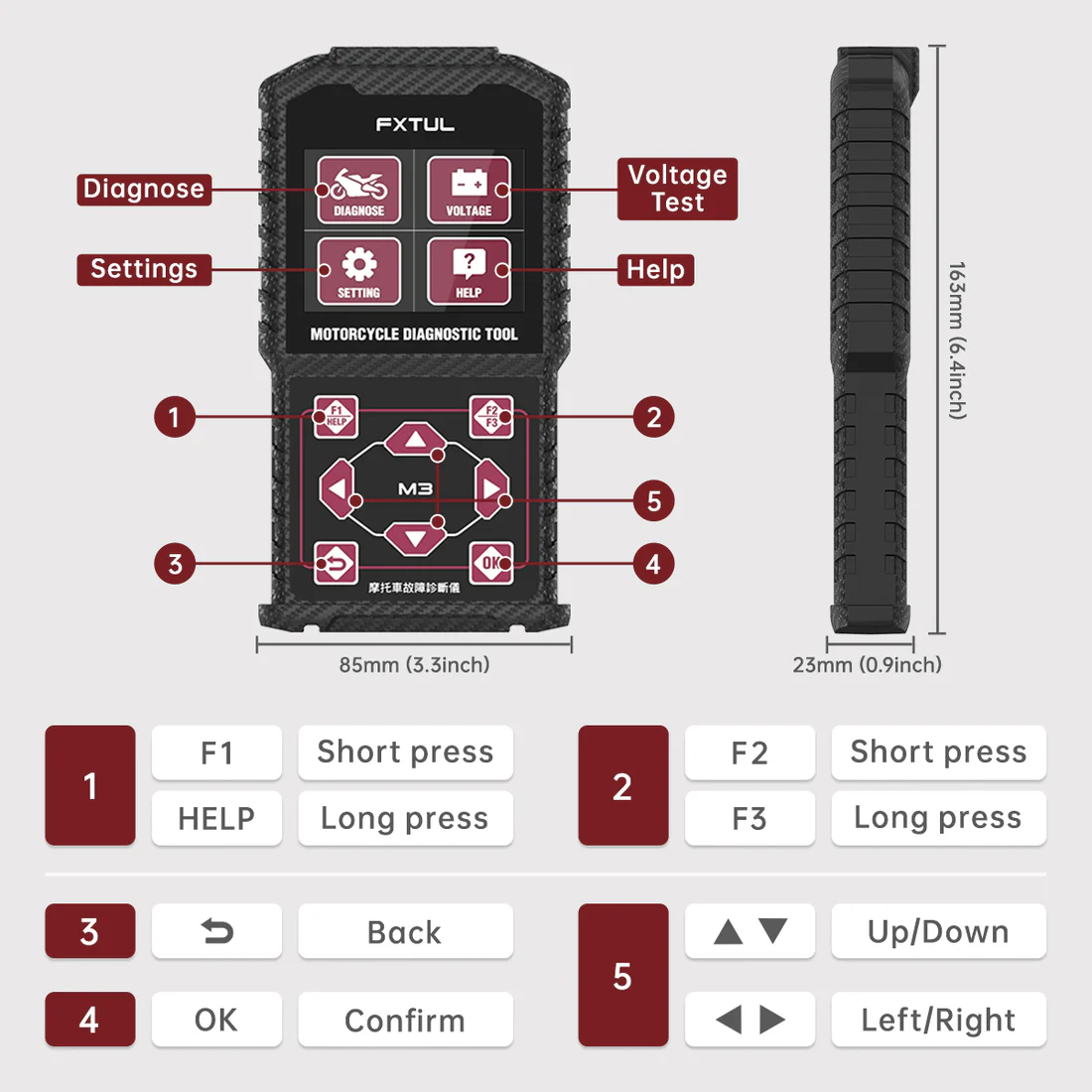

• Machine size: 16.5*8.5*2.5CM

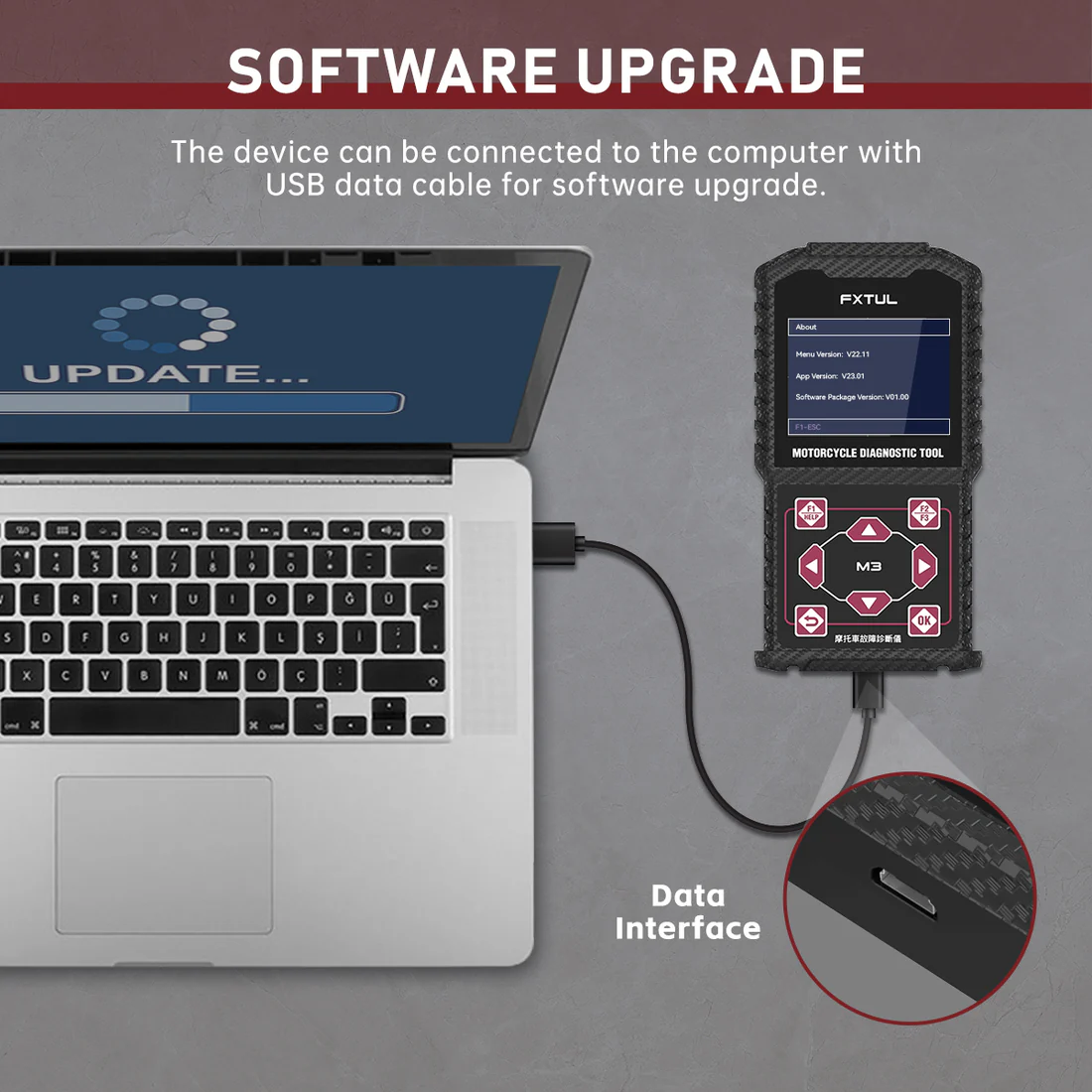

ABOUT SOFTWARE UPGRADES

Connect the device to the computer and wait for the device to be recognized by the computer. After the recognition is successful, a new drive symbol will appear on the computer. Open this and replace the “DIAGNOSE” folder in the drive with the downloaded “DIAGNOSE” upgrade folder, and then power on again. The updated files can be obtained by contacting customer service or the official website.

For more product information, please refer to the FXTUL M3 Motorcycle Diagnostic Tool product brochure

Support services we provide

• Free software upgrade
• 3 years warranty
• 24-hour customer service
• Support custom 8 motorcycle models and OEM: If you have a large demand, you can tell us the motorcycle models you need to add, and we will customize the diagnostic instrument for you. At the same time, we also support OEM service, please contact customer service for details or contact us by email: sales@fxtul.com

Why choose FXTUL?

1. Leading brand of motorcycle tools
2. FXTUL official store direct sales, 100% original products
3. Technical team and factory with ten years of experience in motorcycle maintenance
4. All products support a 3-year warranty
5. Support OEM, wholesale and direct sales

Note:

1. Please follow the instructions after M3 connects the motorcycle.

2. This USB cable is powered by 5V. It is only used when the PC is connected to the product for upgrading. It cannot be connected to a quick charger higher than 5V.

• Where is the download link for m3 asia?

  In the download column of the header menu bar of fxtul.com, select the corresponding software package. The first choice for M3 is to choose A, B, C. The suffixes of EU and Asia are to distinguish the language.

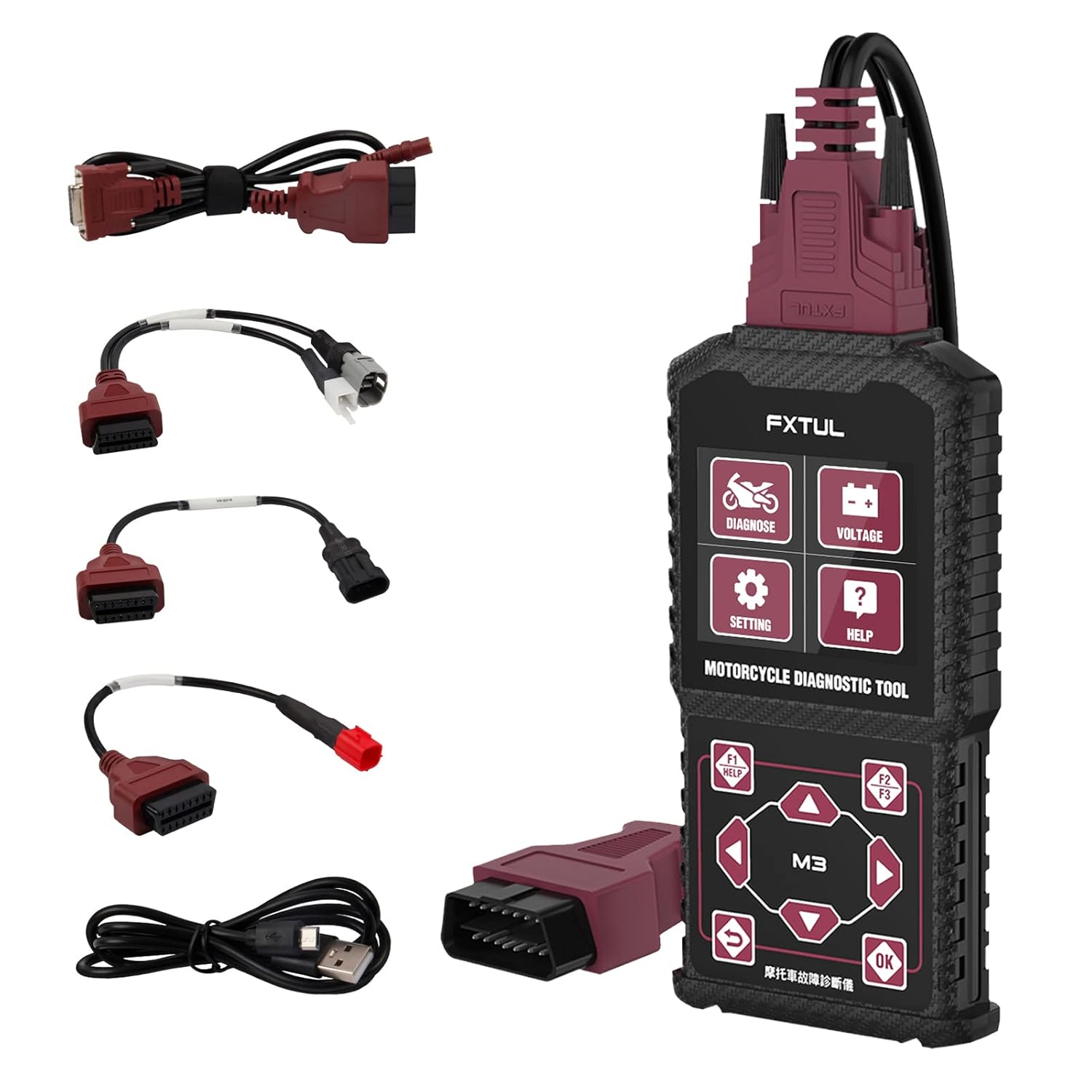

• Does the connector set that comes with the equipment include Euro5?

  M3-C has it, but the other two M3 models don’t

• Will it be compatible with Haojue DL160 motorcycle?

  which year?  Generally, Chinese-made motorcycles can be diagnosed with OBD2, which can read and clear codes and view data streams, but there is no service functions becaue of nodedicated software.

• Bought recently M3-A. My unit is 2021 Yamaha NMAX 155 V2. The scanner only reads ABS and Voltage. I got a problem when entering ECM. it says “communication error”. Cable connection is ok. Also tried updating to latest firmware and still same problem.

  Please contact us at sales@fxtul.com. In view of your situation, please use system select->quick test. In addition, the ECU of some Yamaha models must be strictly executed according to the ignition switch on and off. If it still doesn’t work, please refer to the video https://youtu.be/1KqBCupsHeI?si=aLv4uLOGL0RDx4vi to obtain the log and send it to us by email.

• Hi what the rojo key? Tool ask me to enter rojo key in the Middleton of the scanning processus thanks

  This is required by some ecu, you can try to enter 123 or 123456, if it doesn’t work, you may need to consult the manual of the motorcycle or ask the manufacturer. Maybe we will update to solve this kind of problem
