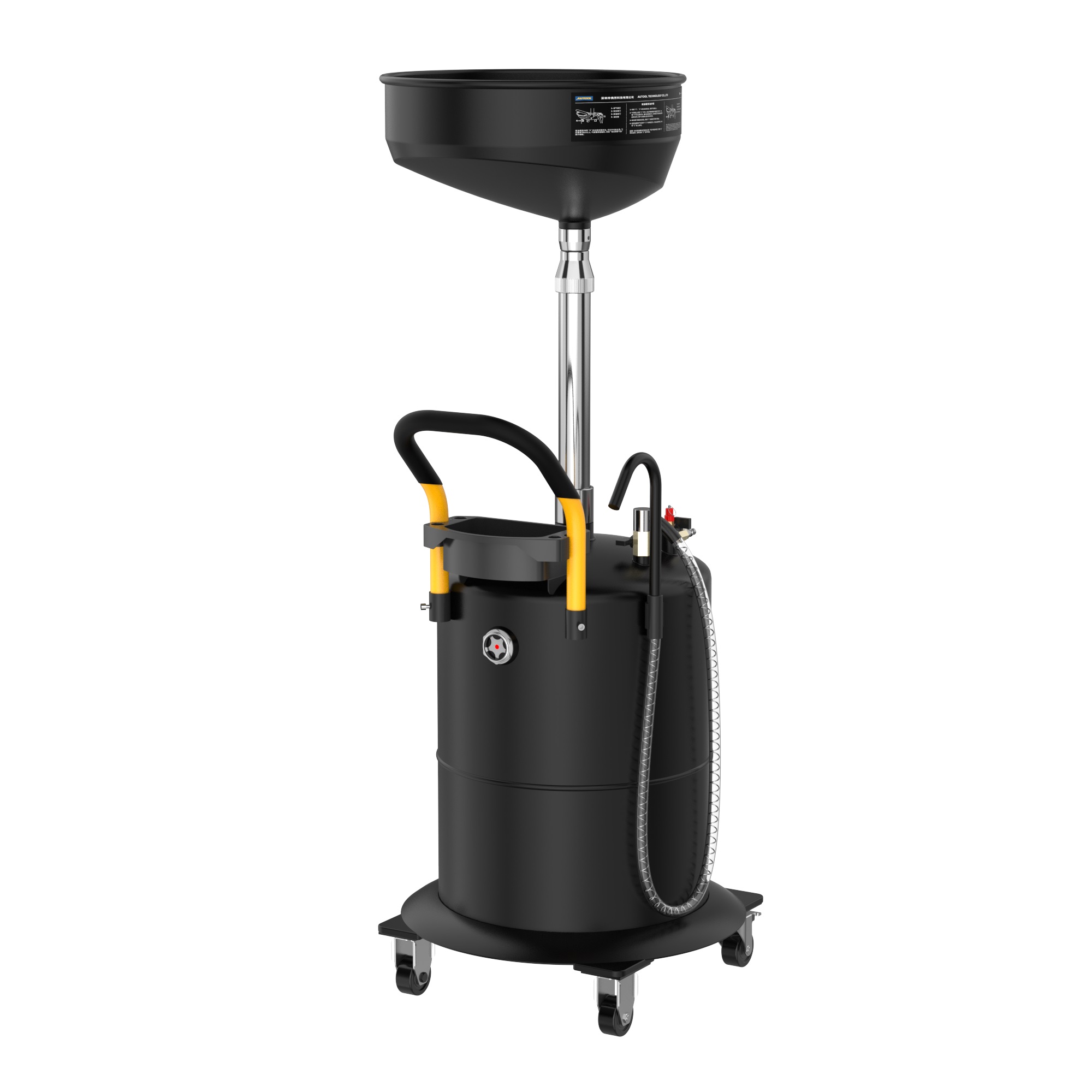

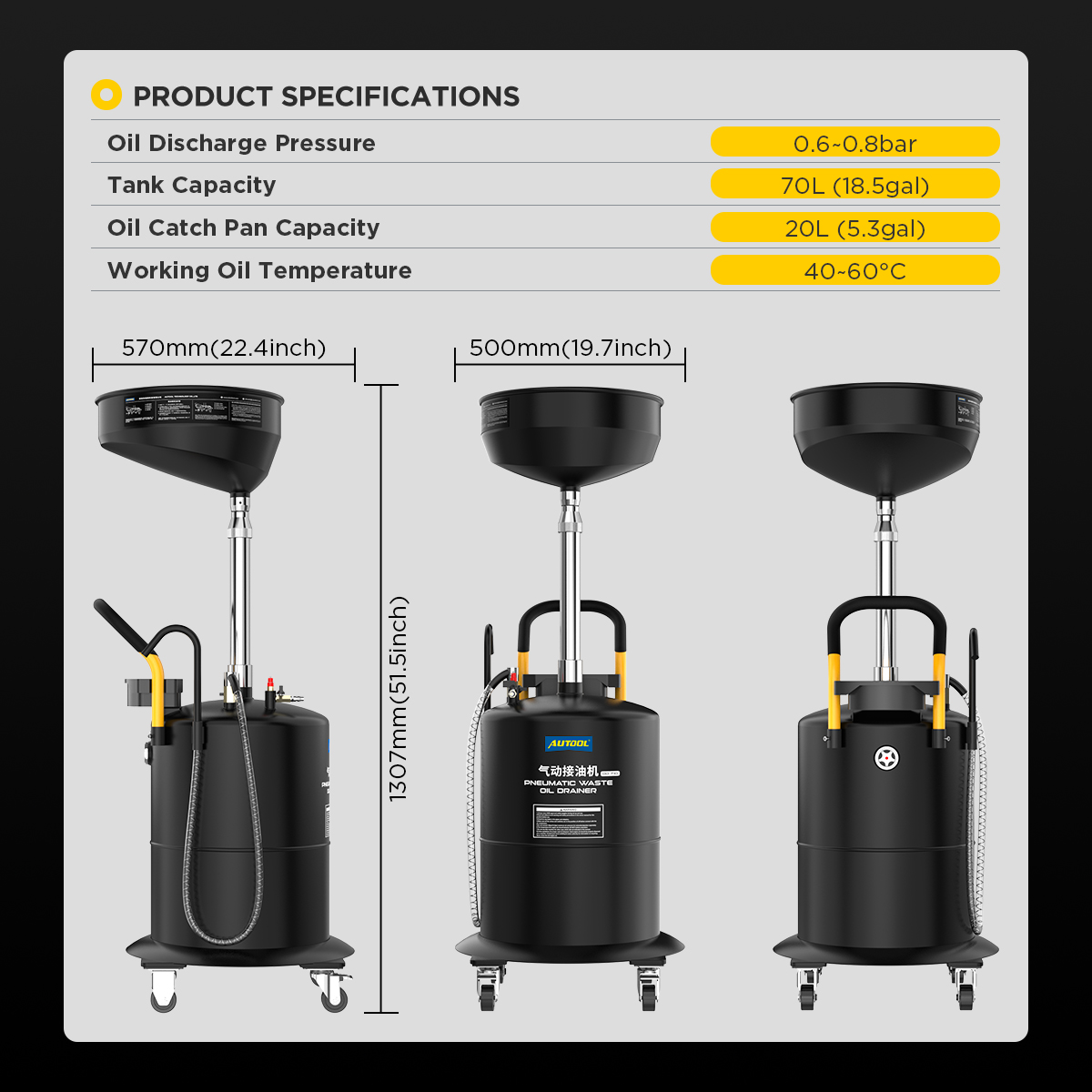

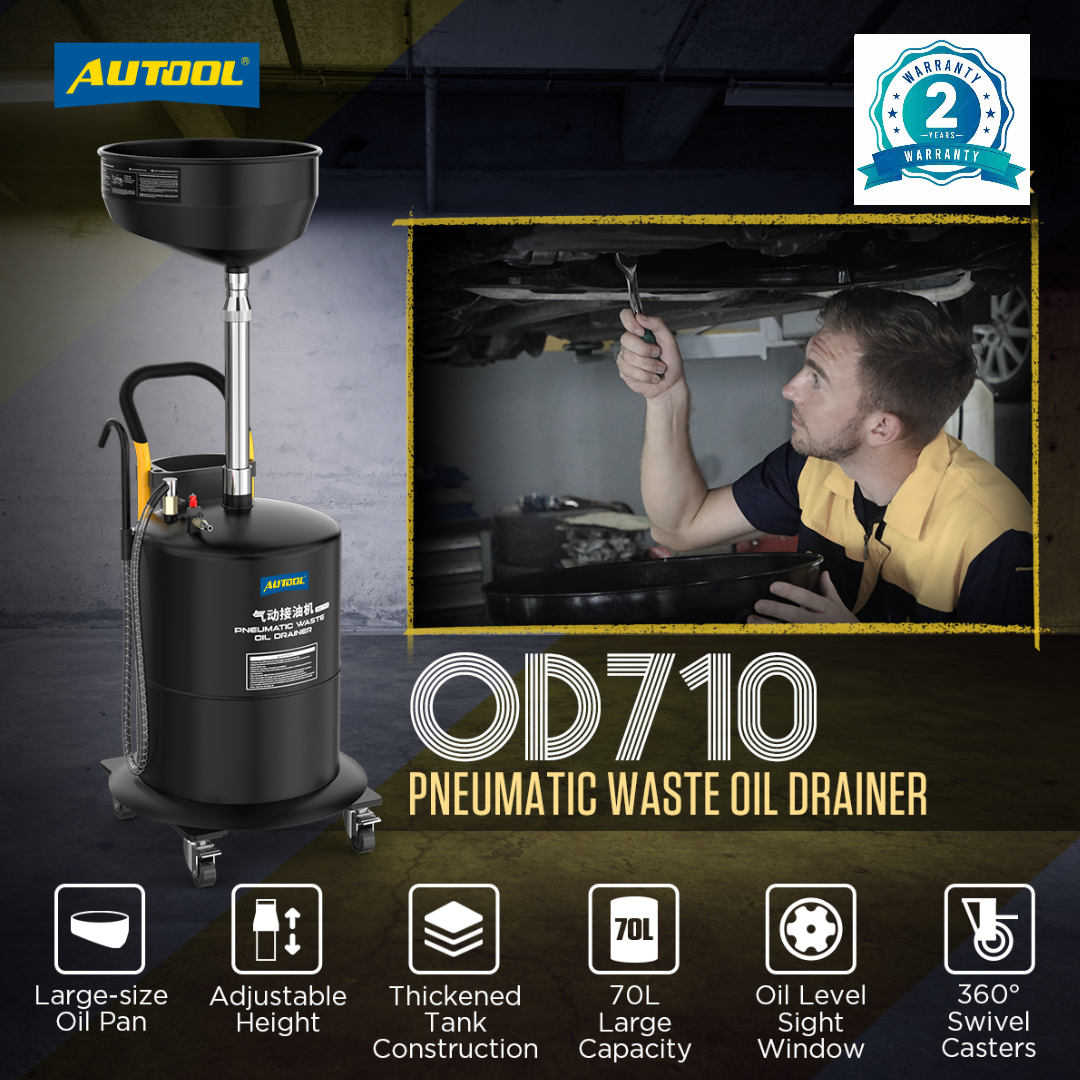

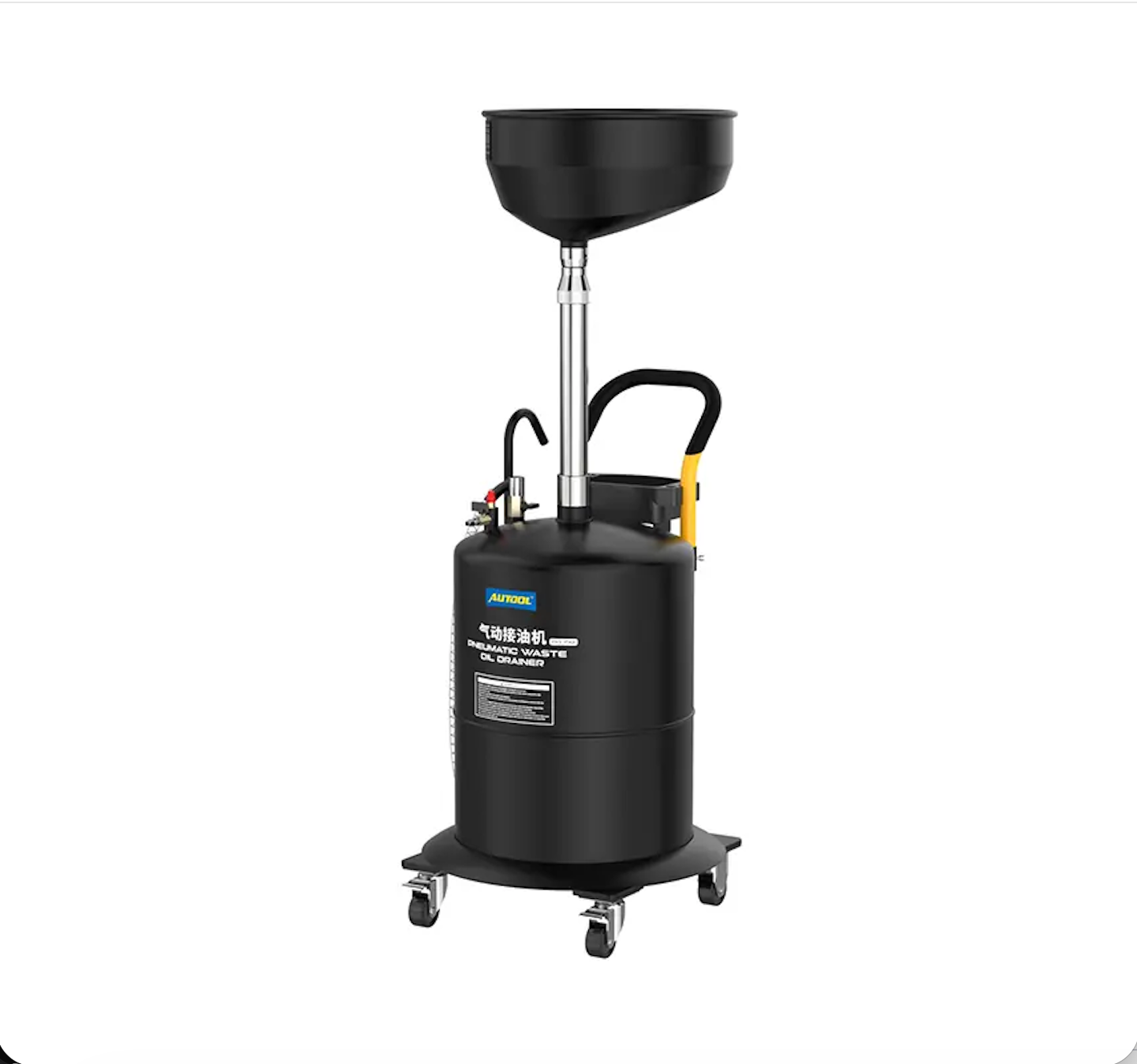

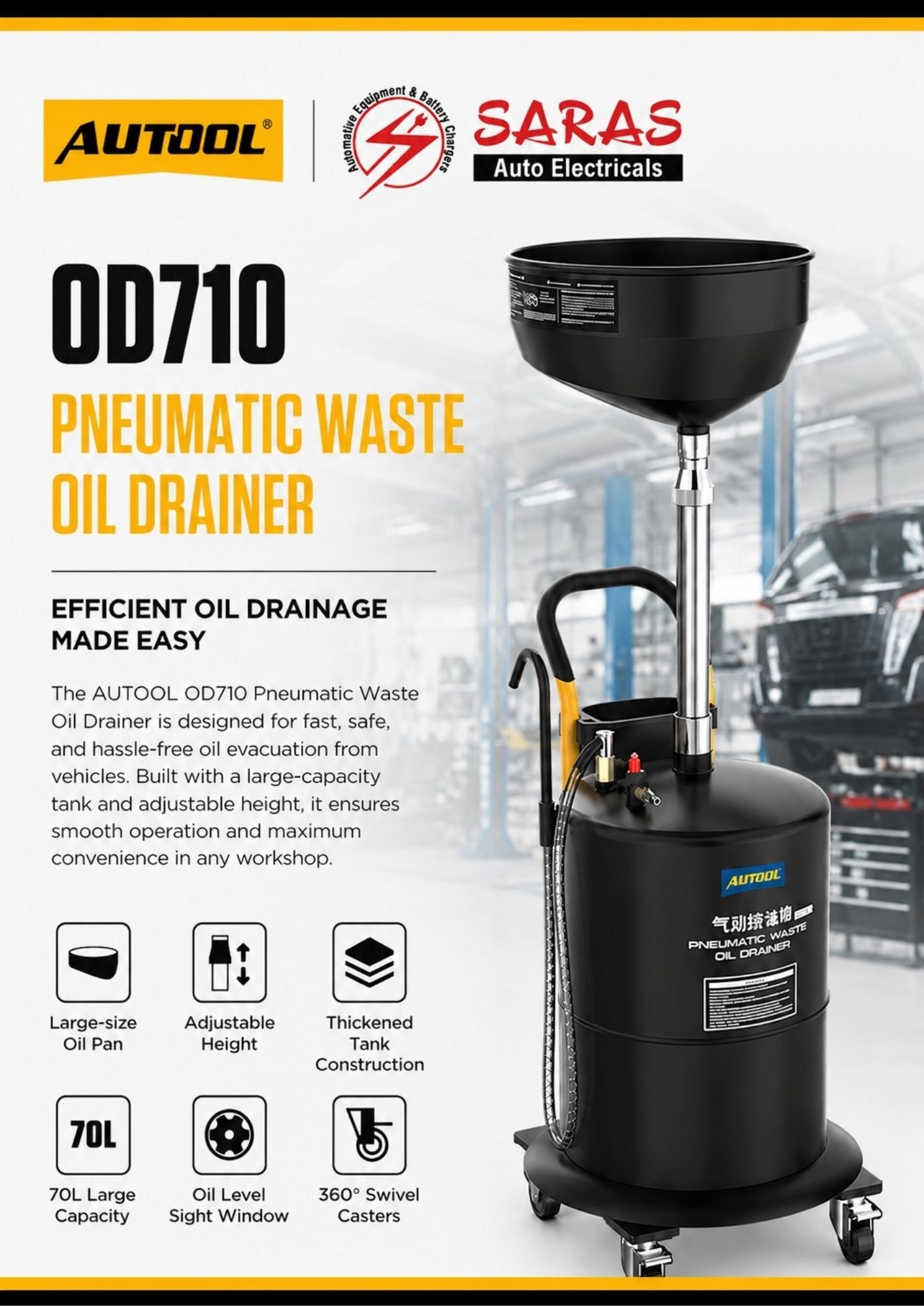

AUTOOL OD710 Pneumatic Oil Picker Machine with 70L Capacity

₹21,240.00

Adjustable height:The lift adjustment lever allows for height customization.
Large capacity tank:70L tank structure effectively prevents leaks.
Visible oil level:An oil level observation window facilitates monitoring fuel usage.

No smoking or open flames during operation. Keep away from high-temperature, high-pressure, flammable, and explosive areas.
If any hose or other components leak during operation, immediately shut off the air supply and conduct a detailed inspection to eliminate the problem.
Waste oil temperature is between 40~60?C, be cautious of burns.
During operation, protect your eyes and hands (we recommend wearing gloves and safety goggles).
The engine must remain turned off throughout the operation.
Strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation.
Do not use the equipment for functions not listed in this manual.

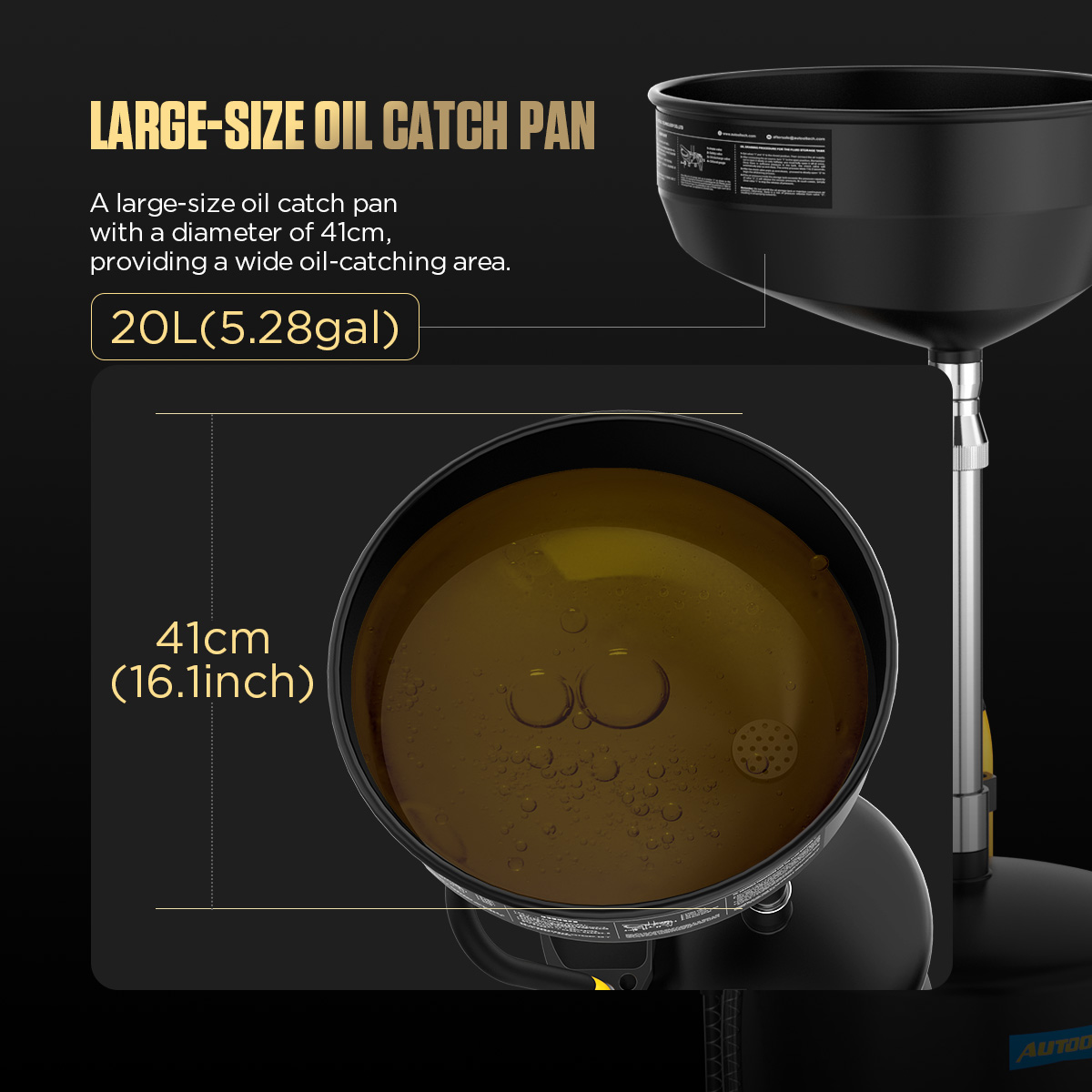

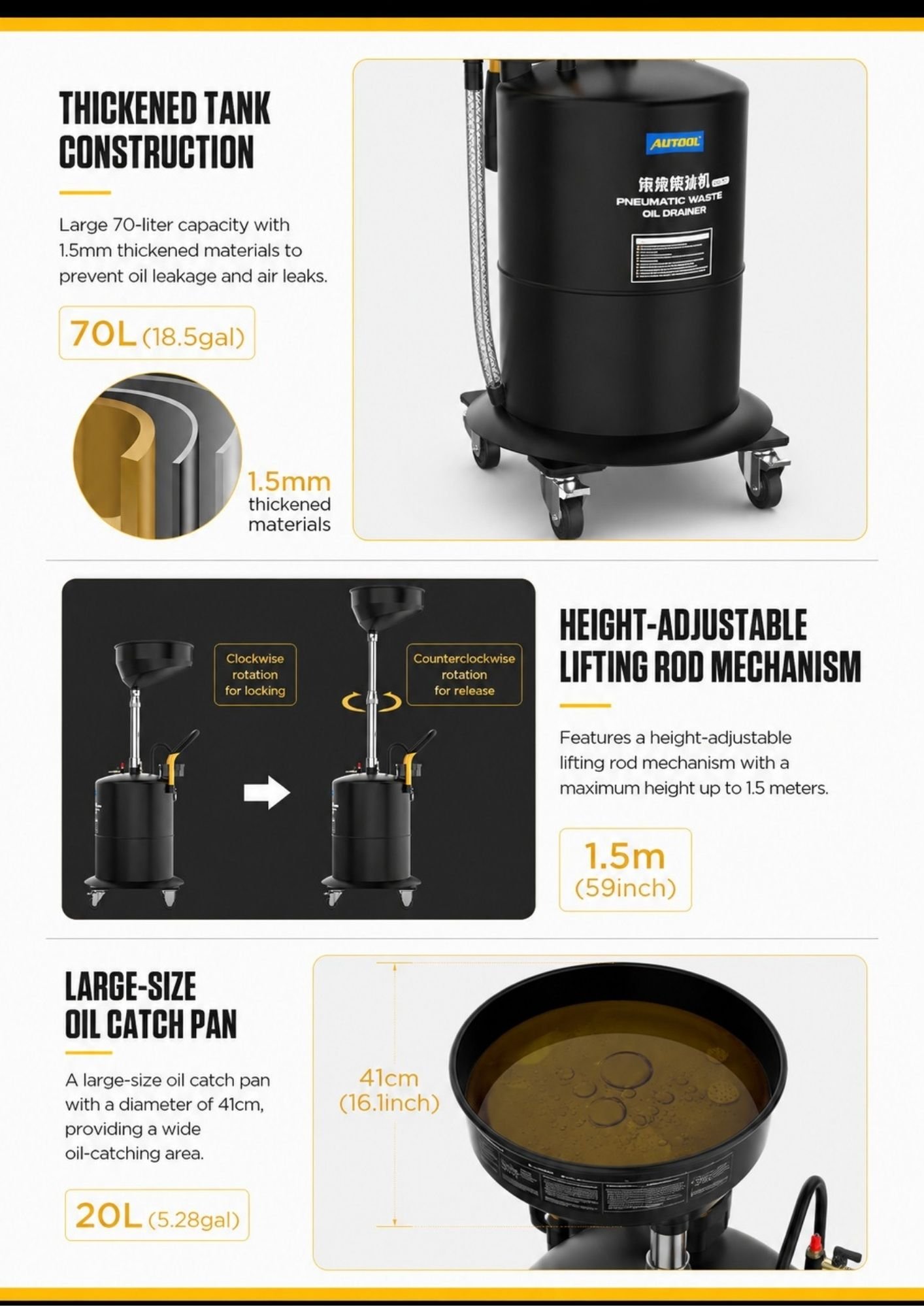

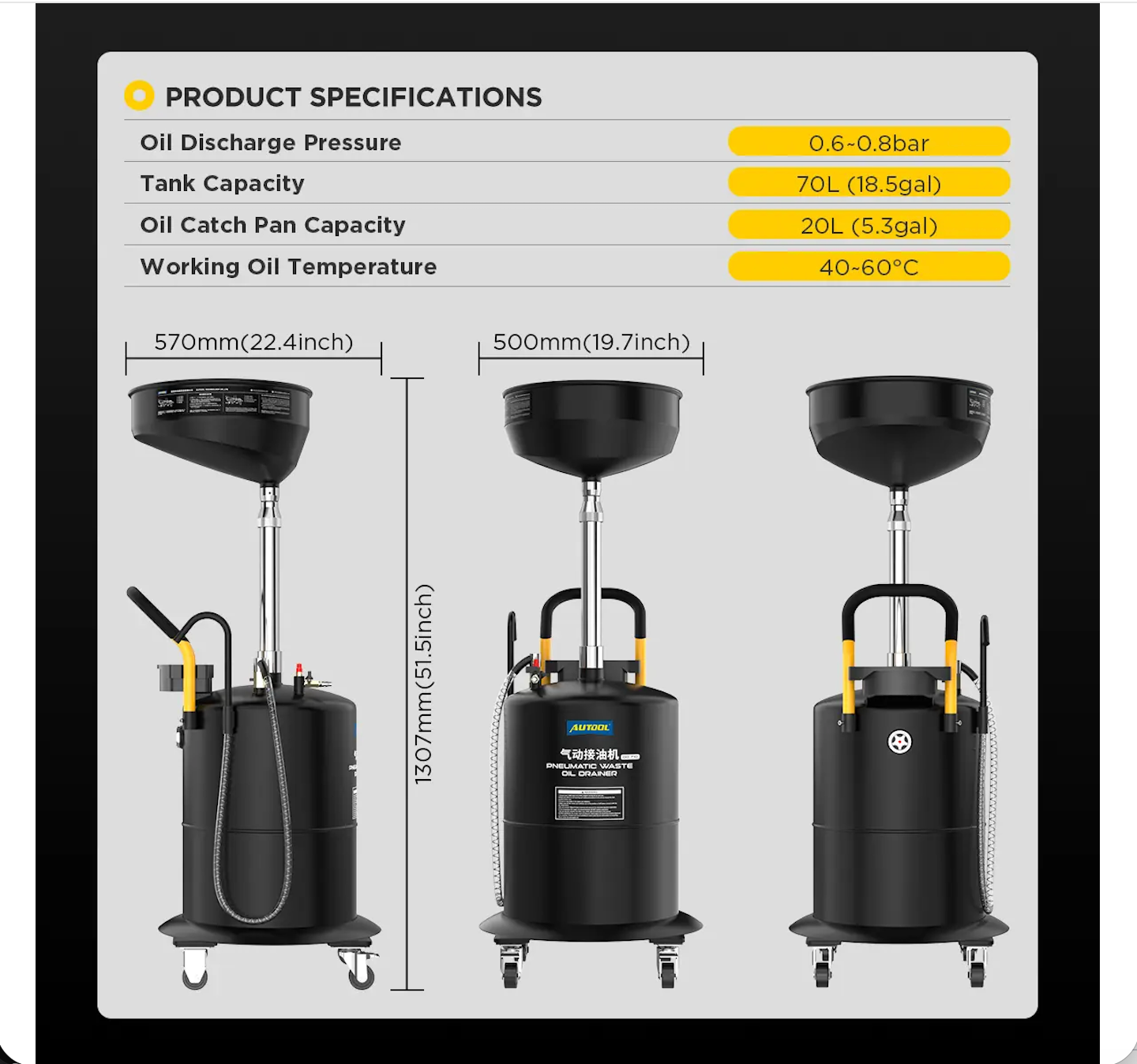

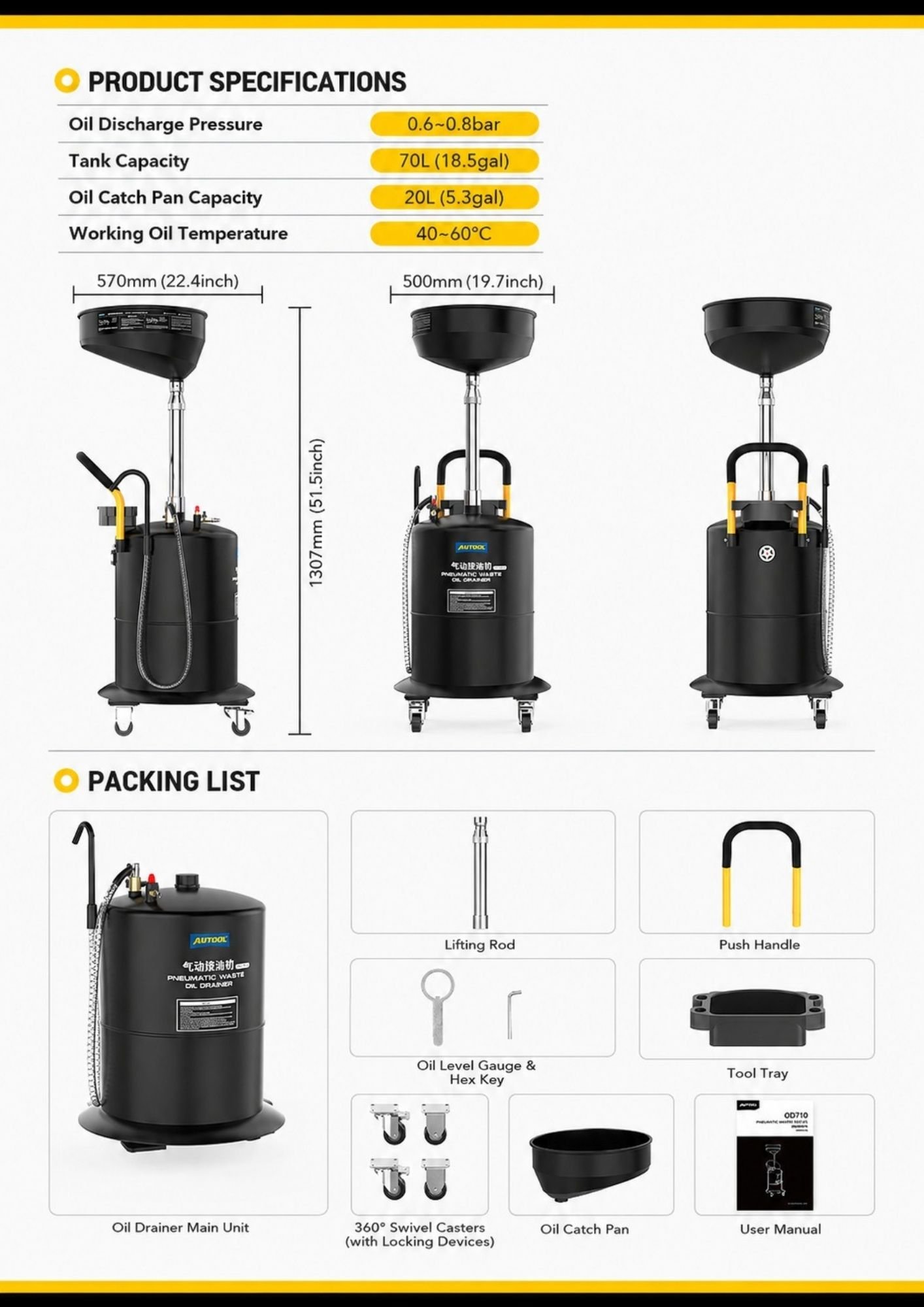

Large-size Oil Pan:?AUTOOL OD710 Pneumatic Oil Picker Machine has a large oil receiving pan with a diameter of 41cm, which has a large oil receiving area when discharging waste oil. At the same time, the oil receiving pan has a large capacity of 20L, which can hold more waste oil.

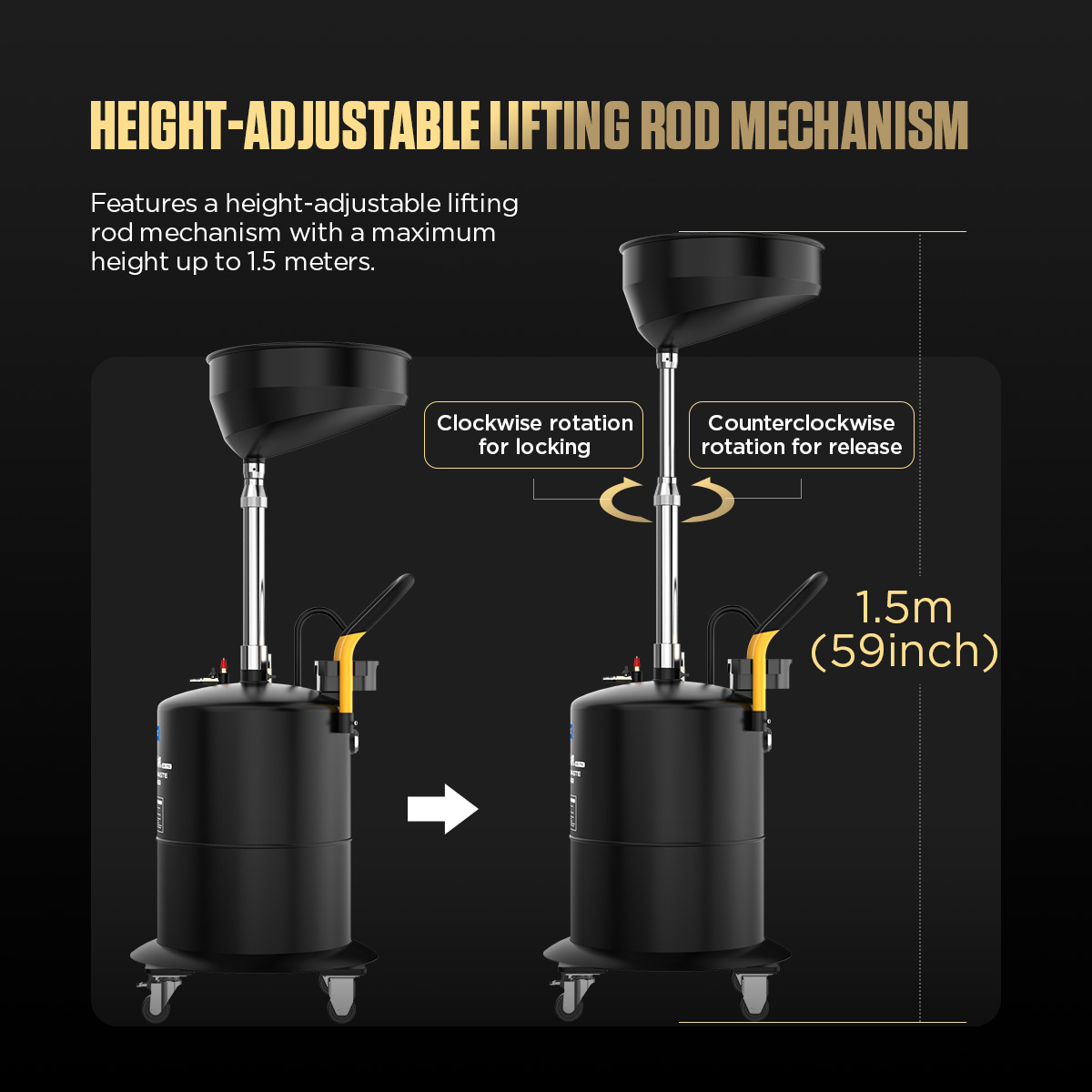

Adjustable Height:?AUTOOL OD710 Pneumatic Oil Picker Machine has a height-adjustable lifting rod structure. The maximum adjustable height is 1.5 meters. Can adjust appropriate height as need.

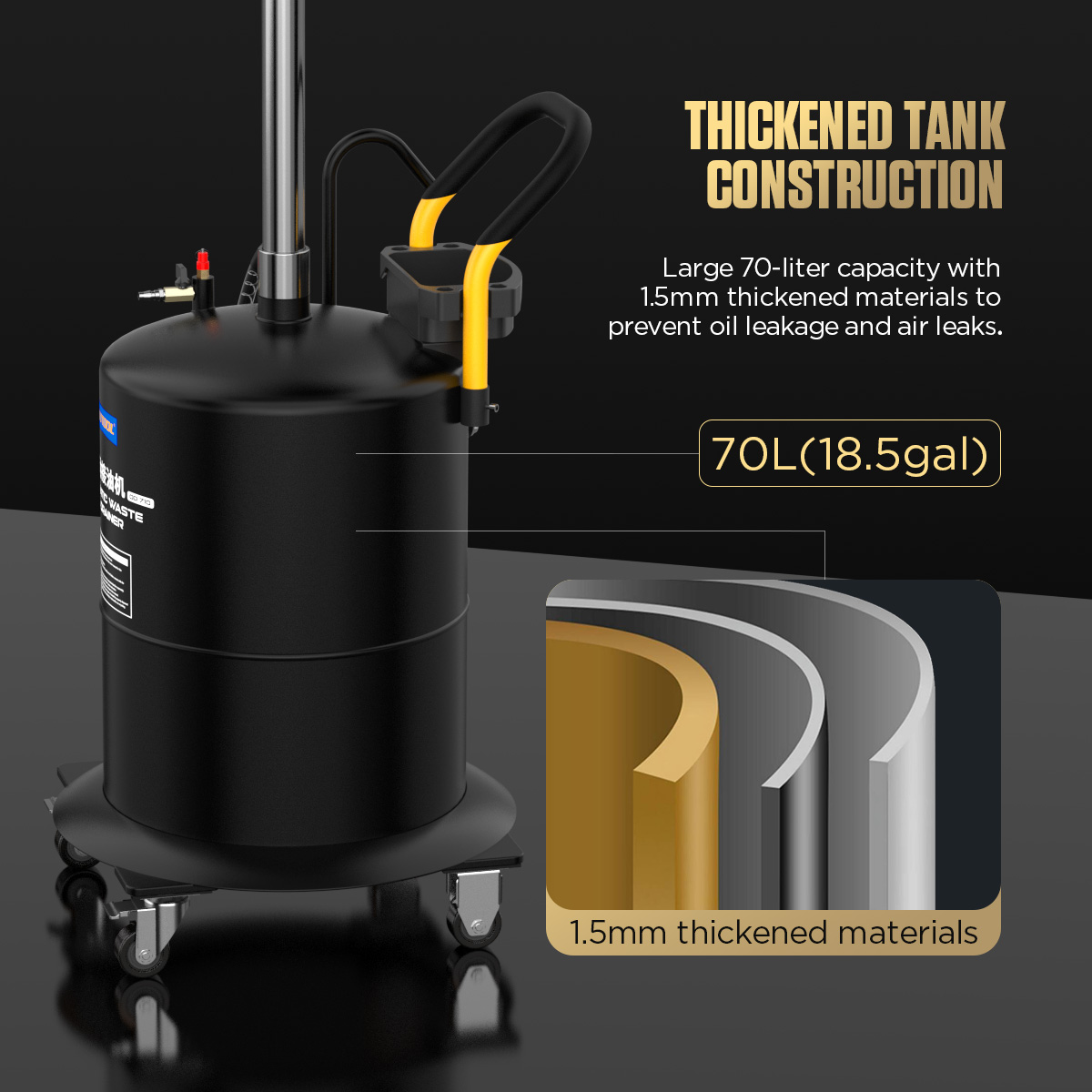

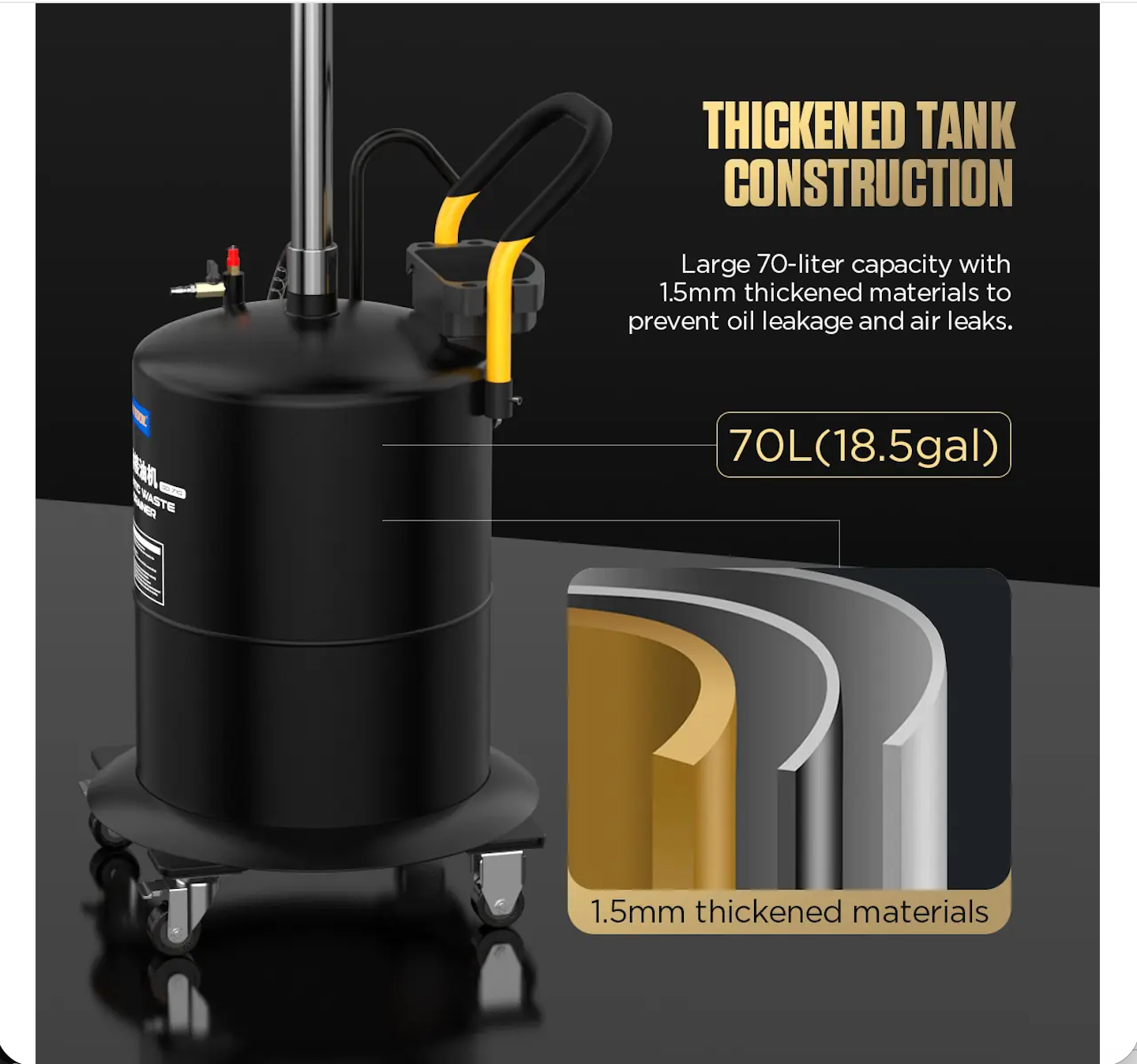

Thickened Tank Construction & 70L Large Capacity:?AUTOOL OD710 Pneumatic Oil Picker Machine has a large capacity of 70 liters and is made of 1.5 mm thick material to effectively prevent oil and air leaks.

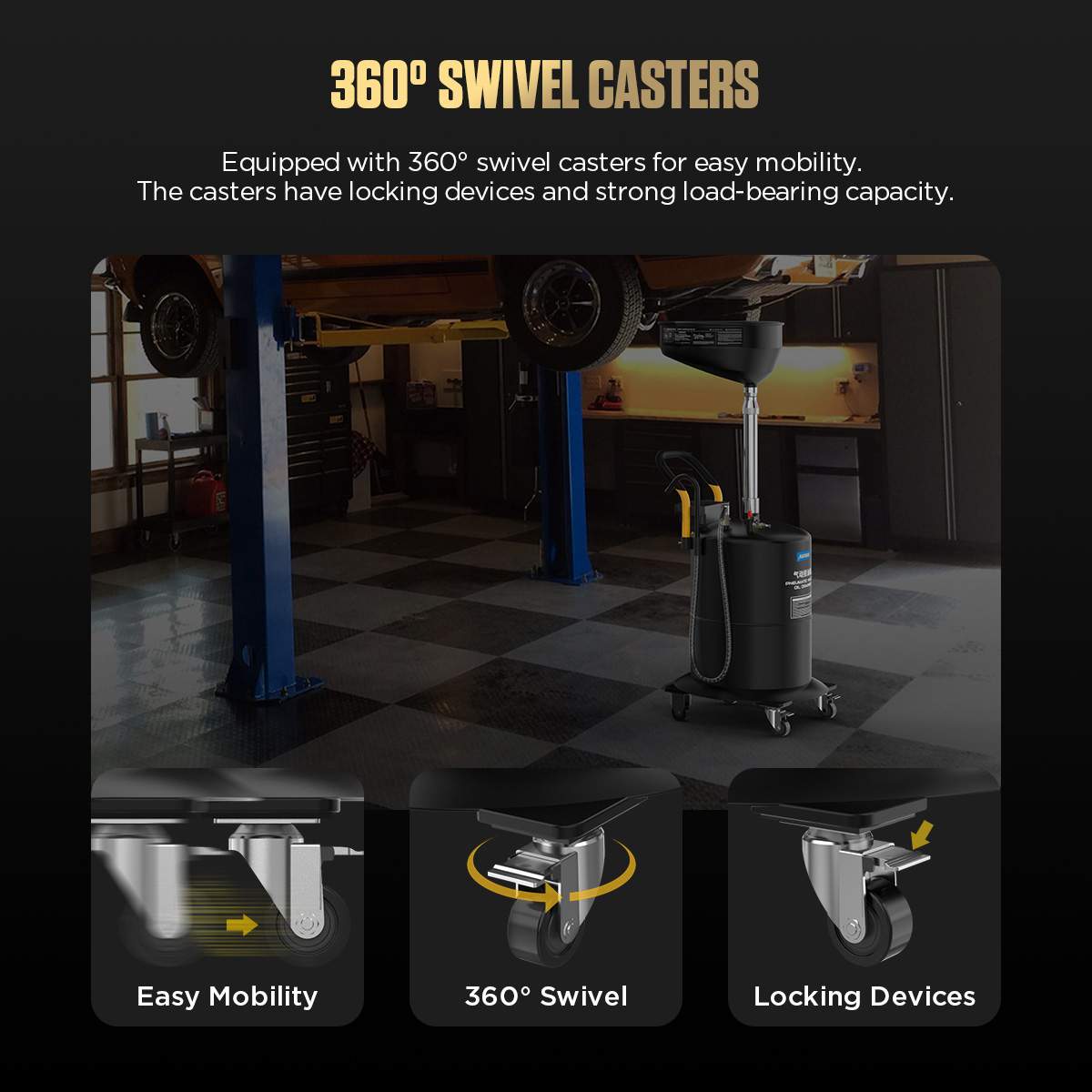

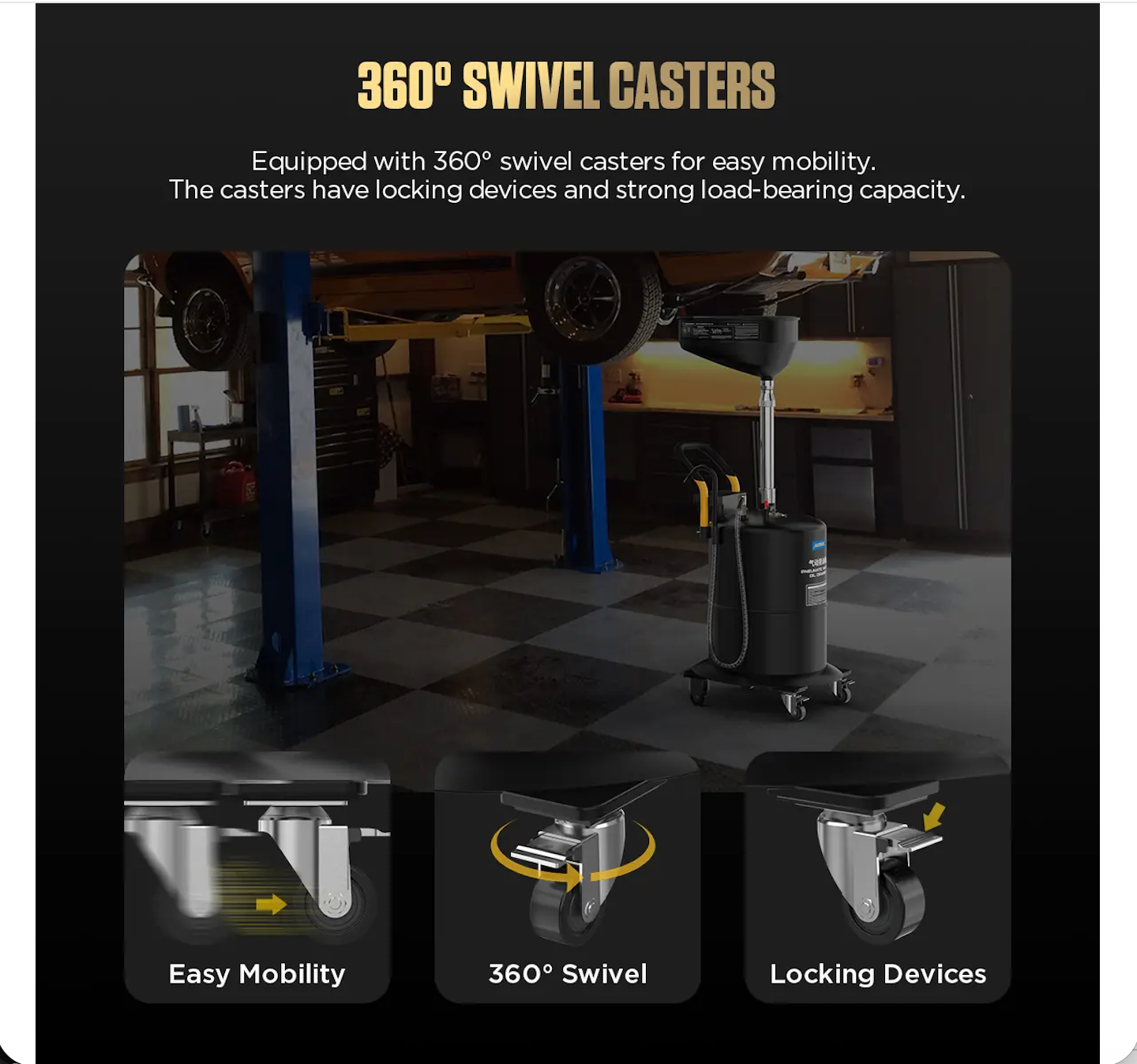

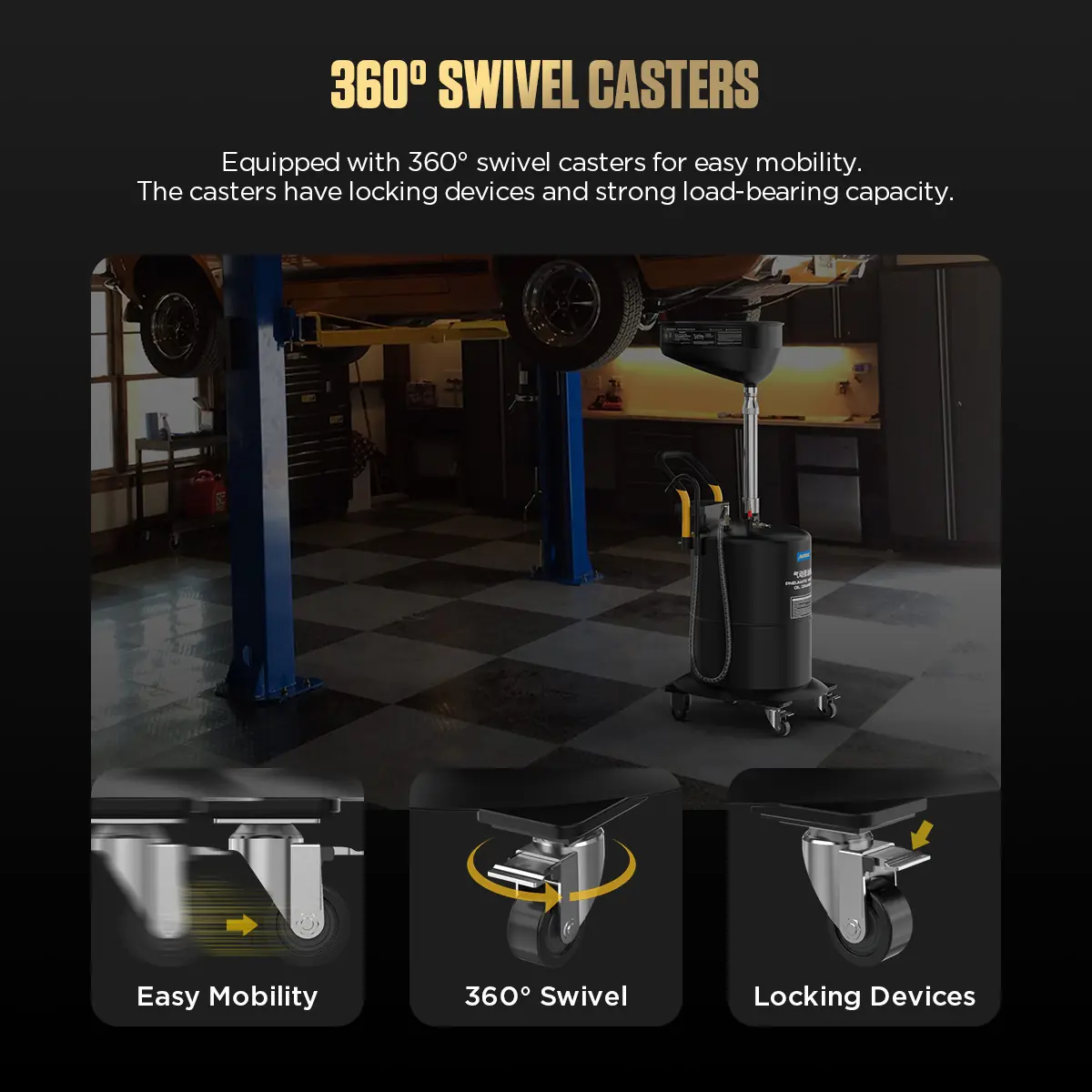

360? Swivel Casters:?It is equipped with casters that can rotate 360?, making it easy to move, and the casters have a locking device to make it more load-bearing.

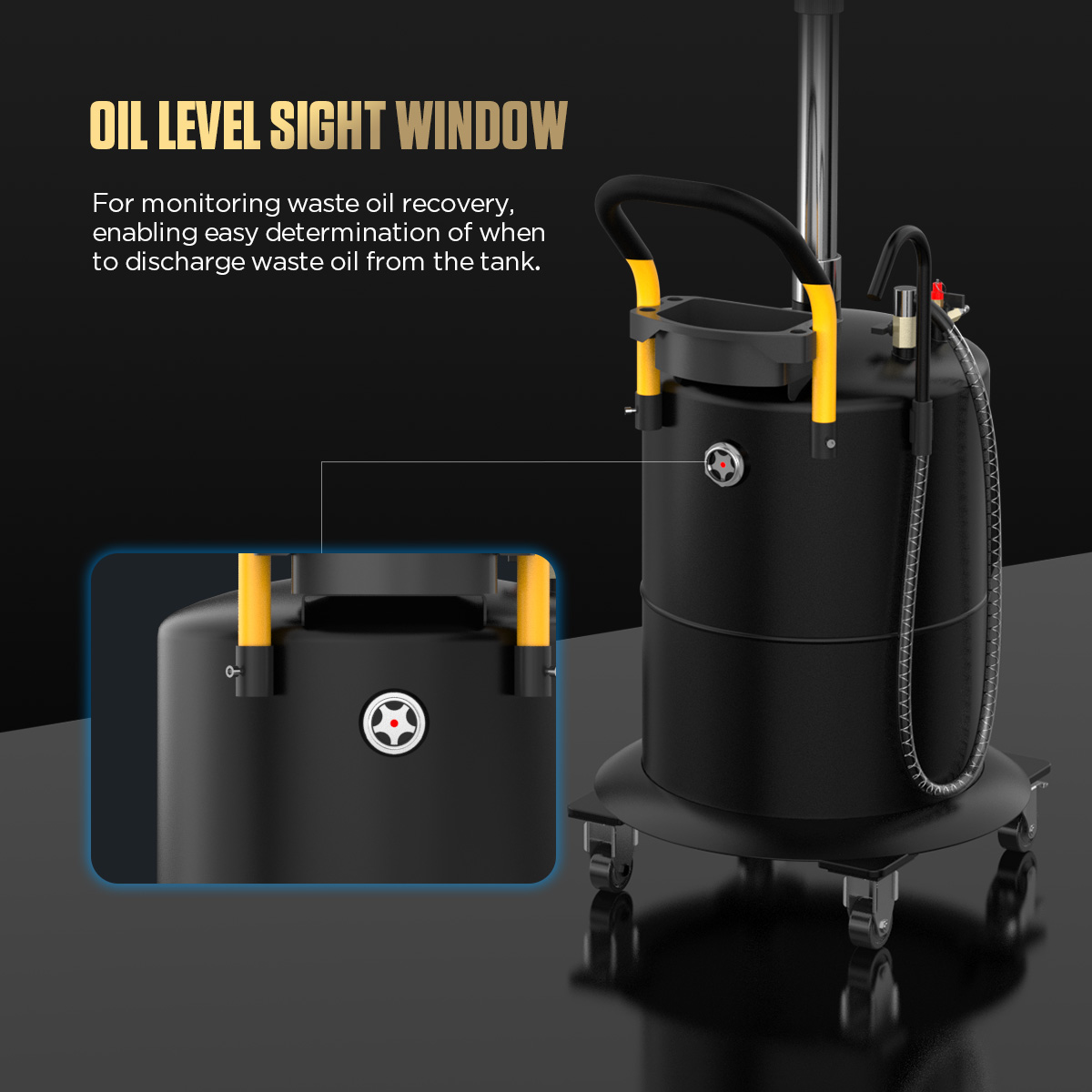

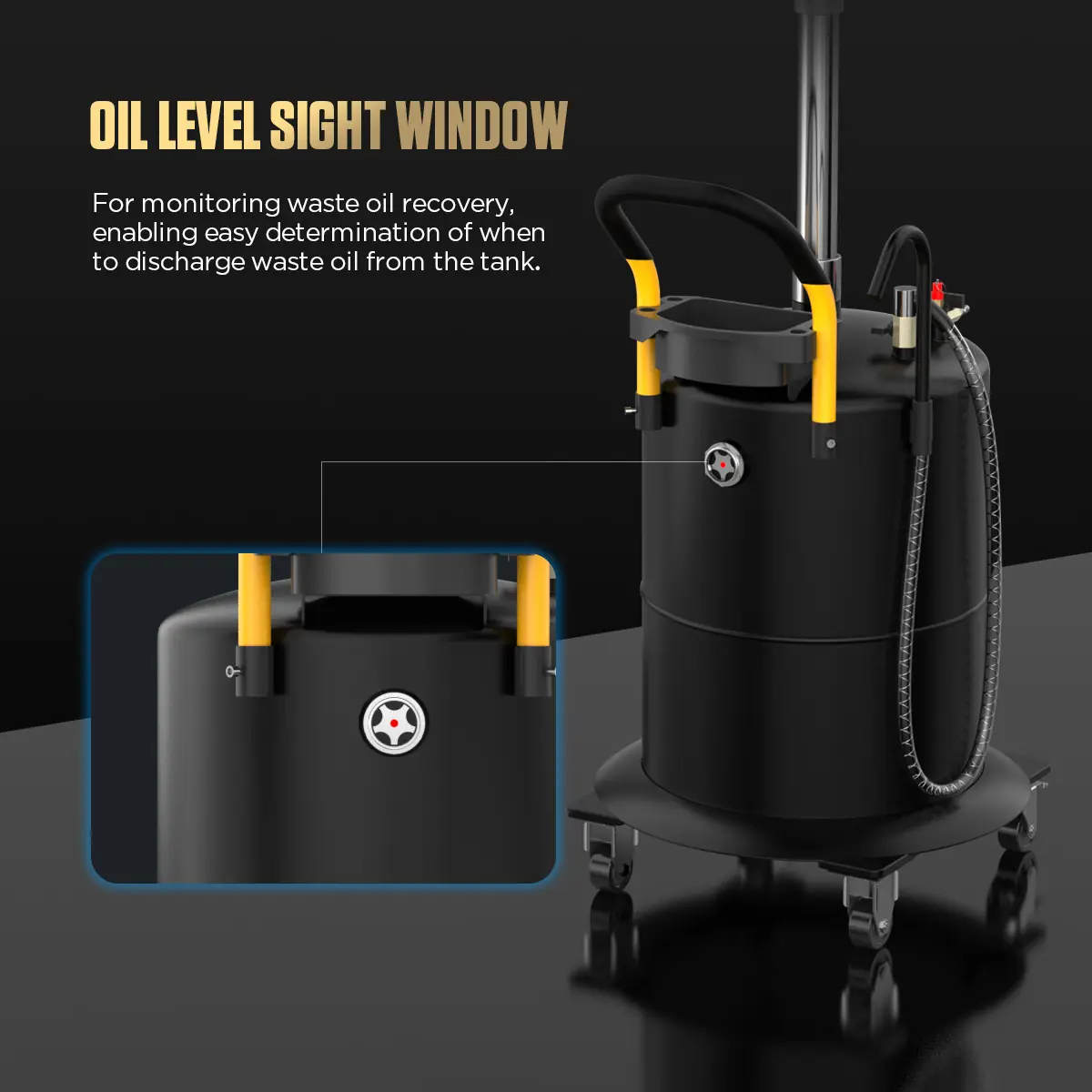

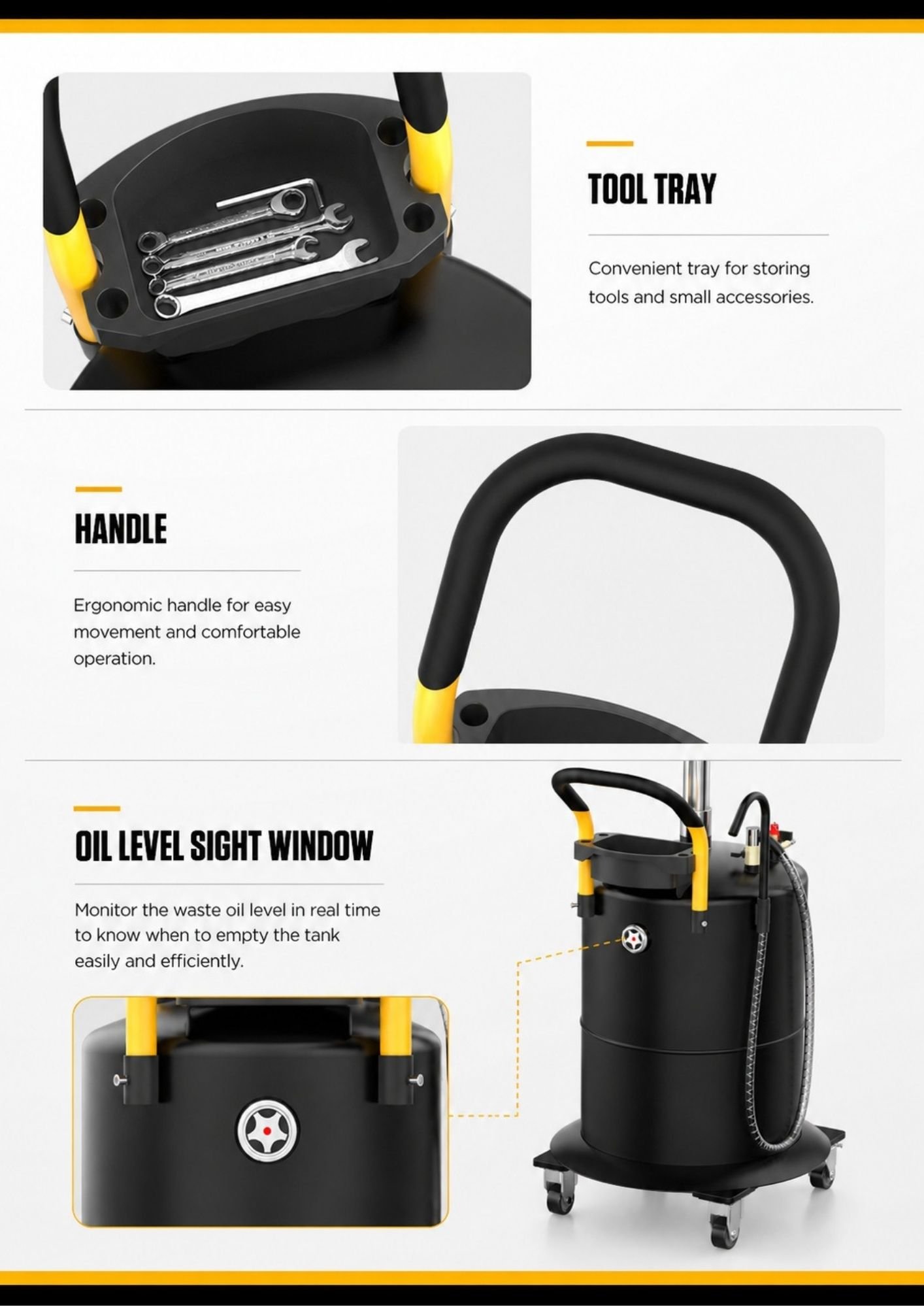

Oil Level Sight Window:?AUTOOL OD710 Pneumatic Oil Picker Machine is also equipped with an oil level sight window for monitoring waste oil recovery, making it easy to determine when to drain waste oil from the tank.
Three-Year Warranty, Lifetime Maintenance:??For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

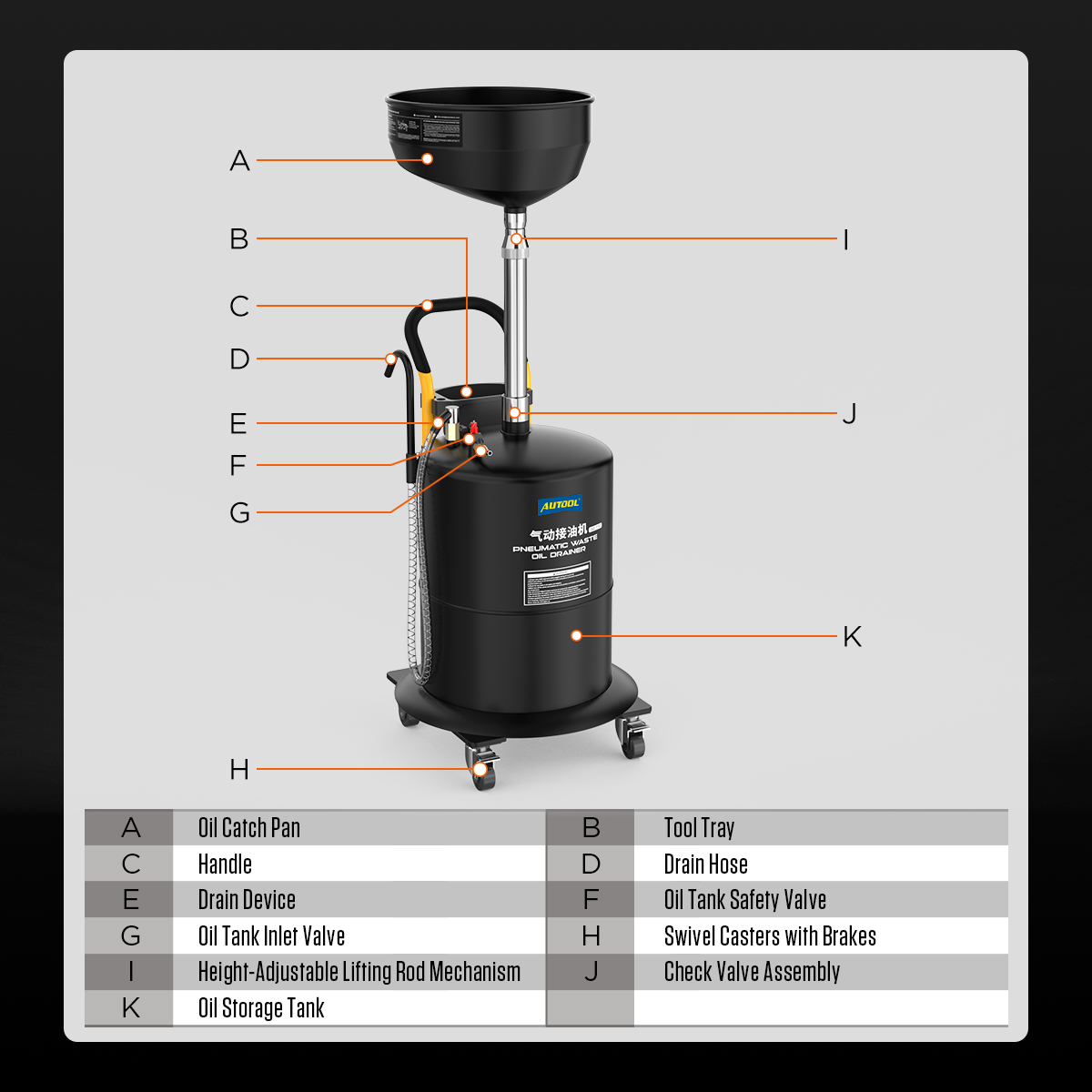

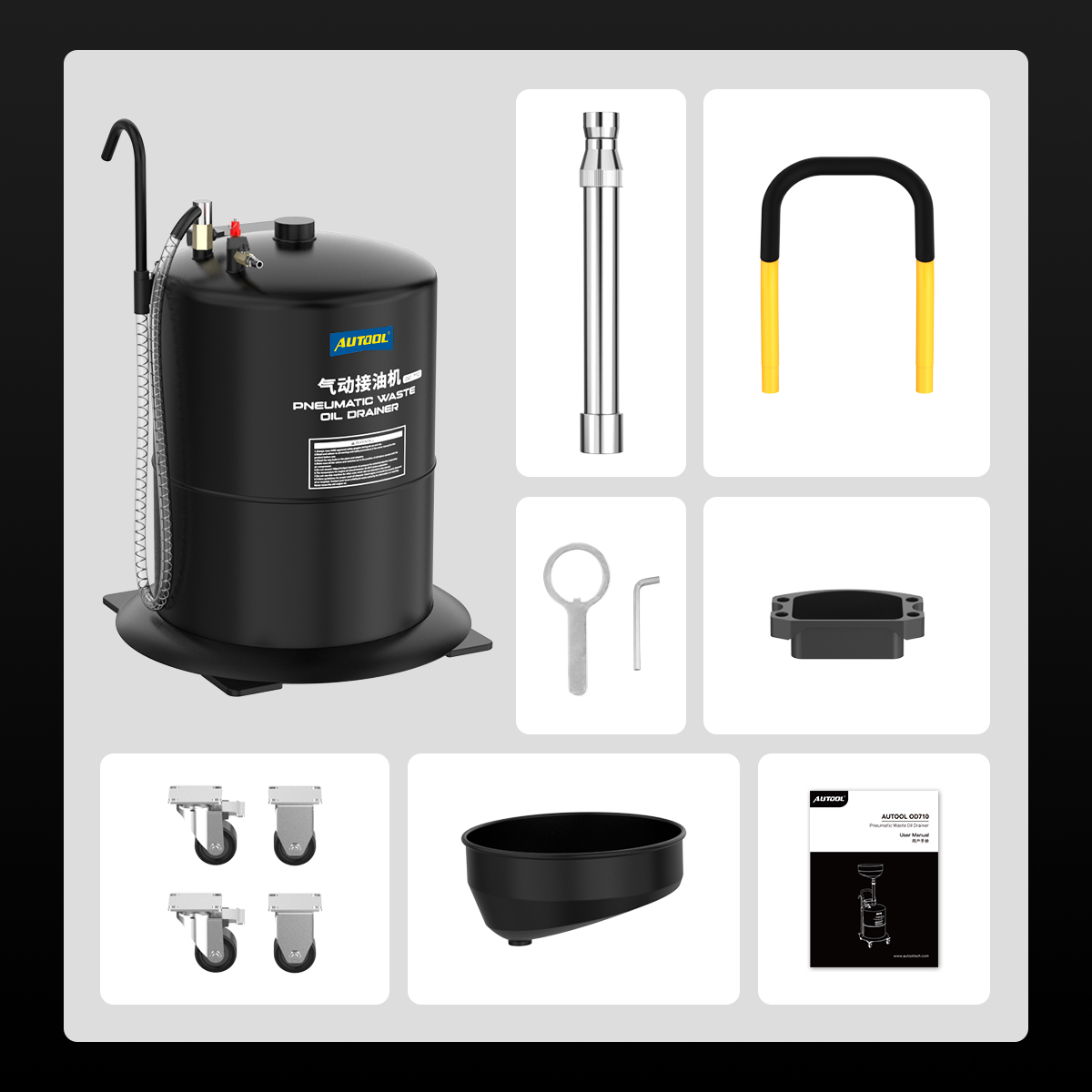

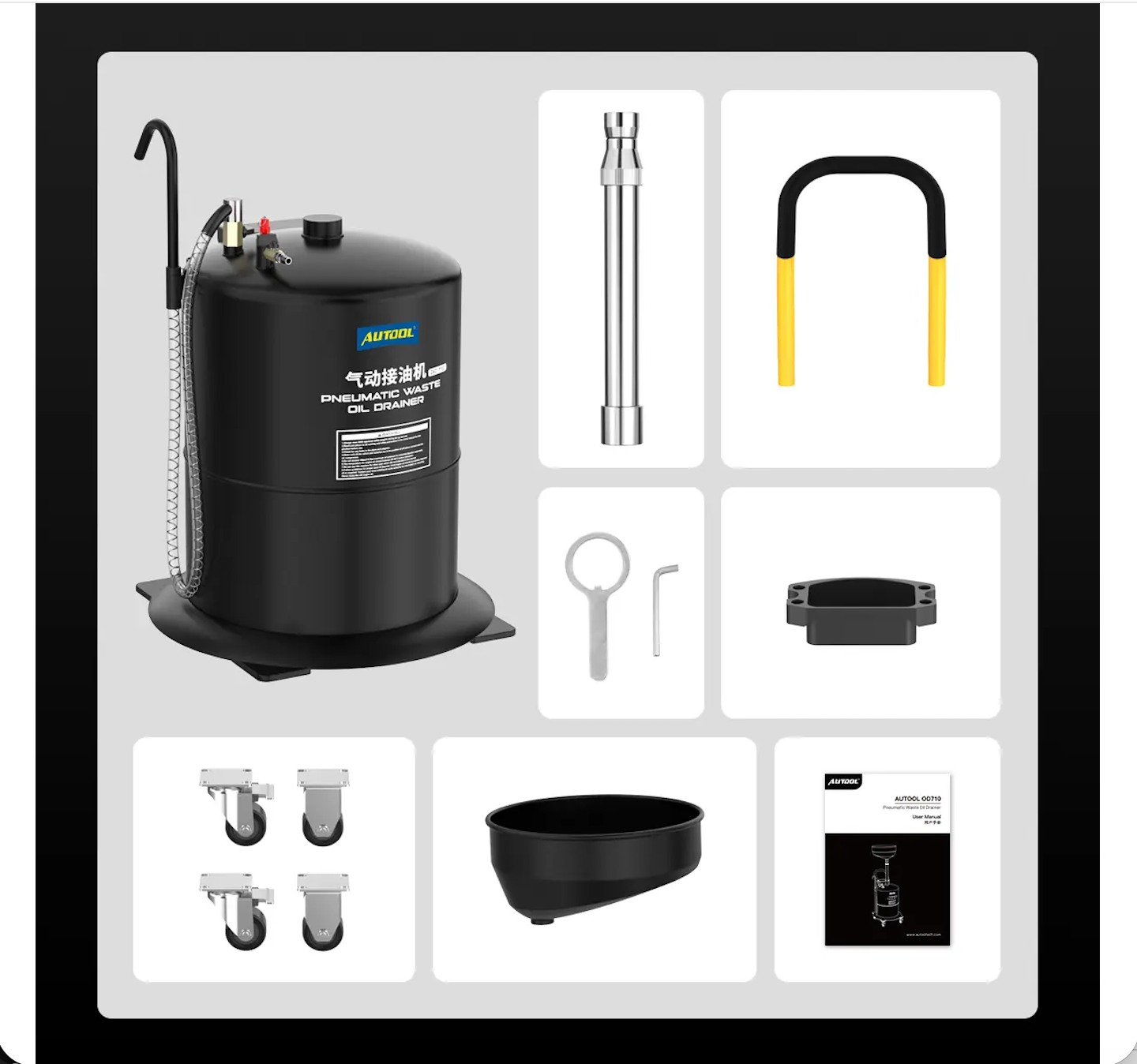

Installation:?

Fix the lifting rod and oil pan funnel in place by rotating in the ?clockwise? direction.
After installation, ensure that the lifting pole is in a vertical position relative to the equipment.
Adjust the lifting rod device by turning it counterclockwise to adjust the height of the lifting rod oil pan funnel. Turn it clockwise to tighten.

Waste oil?recovery

Use a lifting device to raise the vehicle to a suitable height.
Ensure a safe working environment and position the equipment under the vehicle engine with the oil pan funnel aligned with the engine?s drain hole.
Unscrew the vehicle?s engine oil drain plug.
The waste oil will be discharged into the storage tank through the oil pan funnel.

Waste oil?discharge of?oil storage?tank

Close the oil discharge pipe valve.
Close the oil tank inlet valve.
Connect the air supply to the oil tank inlet valve.
Open the oil tank inlet valve and pressurize it. Once it reaches a certain pressure, the check valve will automatically close.
When the pressure inside the oil tank exceeds 1.0 bar, the safety valve will automatically release the pressure.
After 5 seconds, slowly open the oil drain valve.
After discharging the oil, cut off the air supply.
