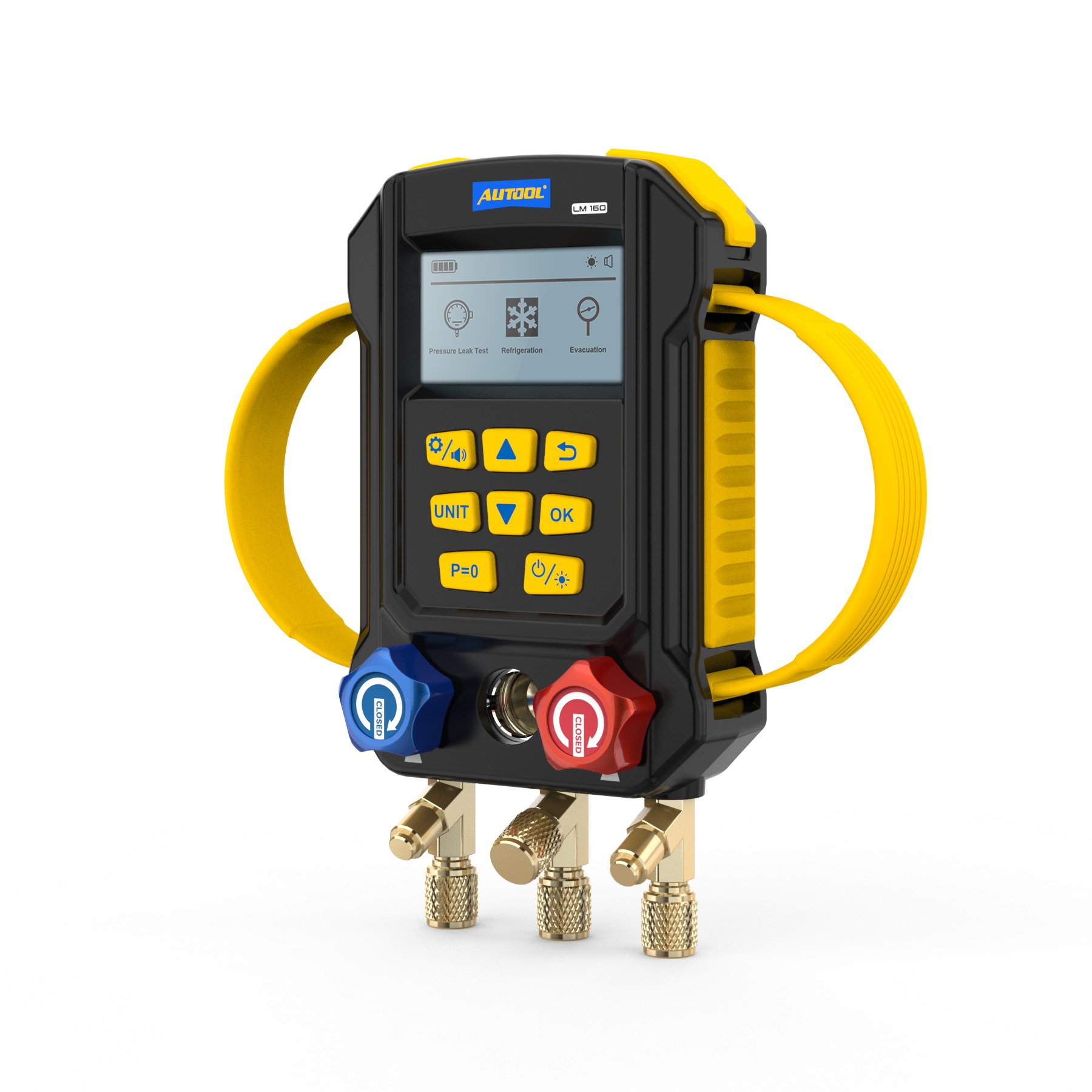

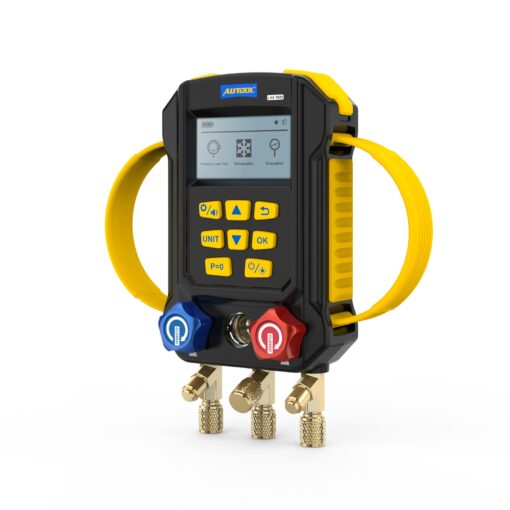

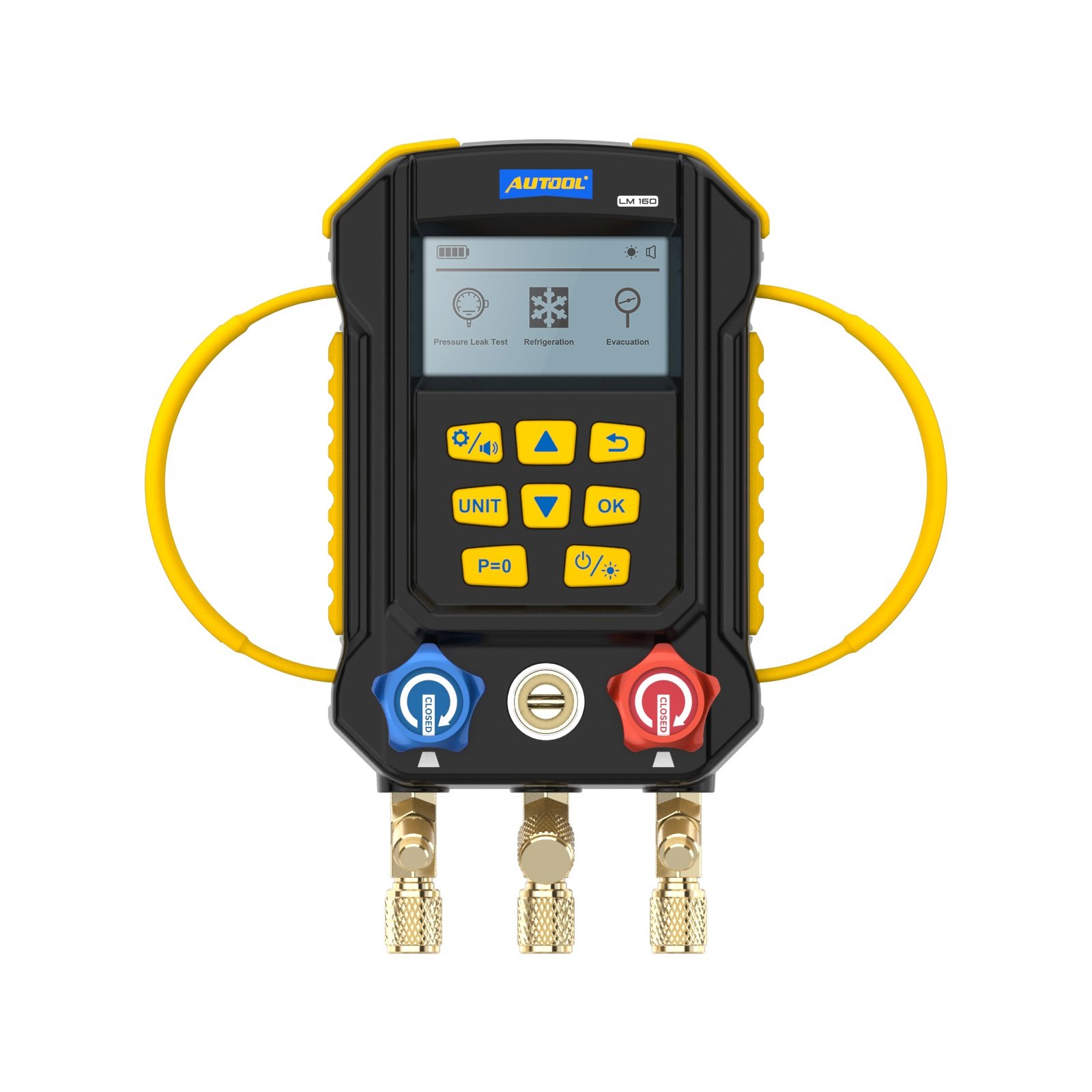

AUTOOL LM160 Refrigerant Leak Detector Digital Manifold Gauges

Build-in 95 Standard Databases: Satisfy your different needs. Like R134a, R22, H2O, R401C, 1234zeE, etc.
Program Control System: The menu employs intelligent program control, and yje intuitive and detailed result display streamlines traditional operation, making it easier for technicians to run the device.
2.8-inch Display: Backlit screen design allows for use even in dark environments.

For more discount and online support please click here.

Pressure measured with a digital manifold pressure tester is gauge pressure.

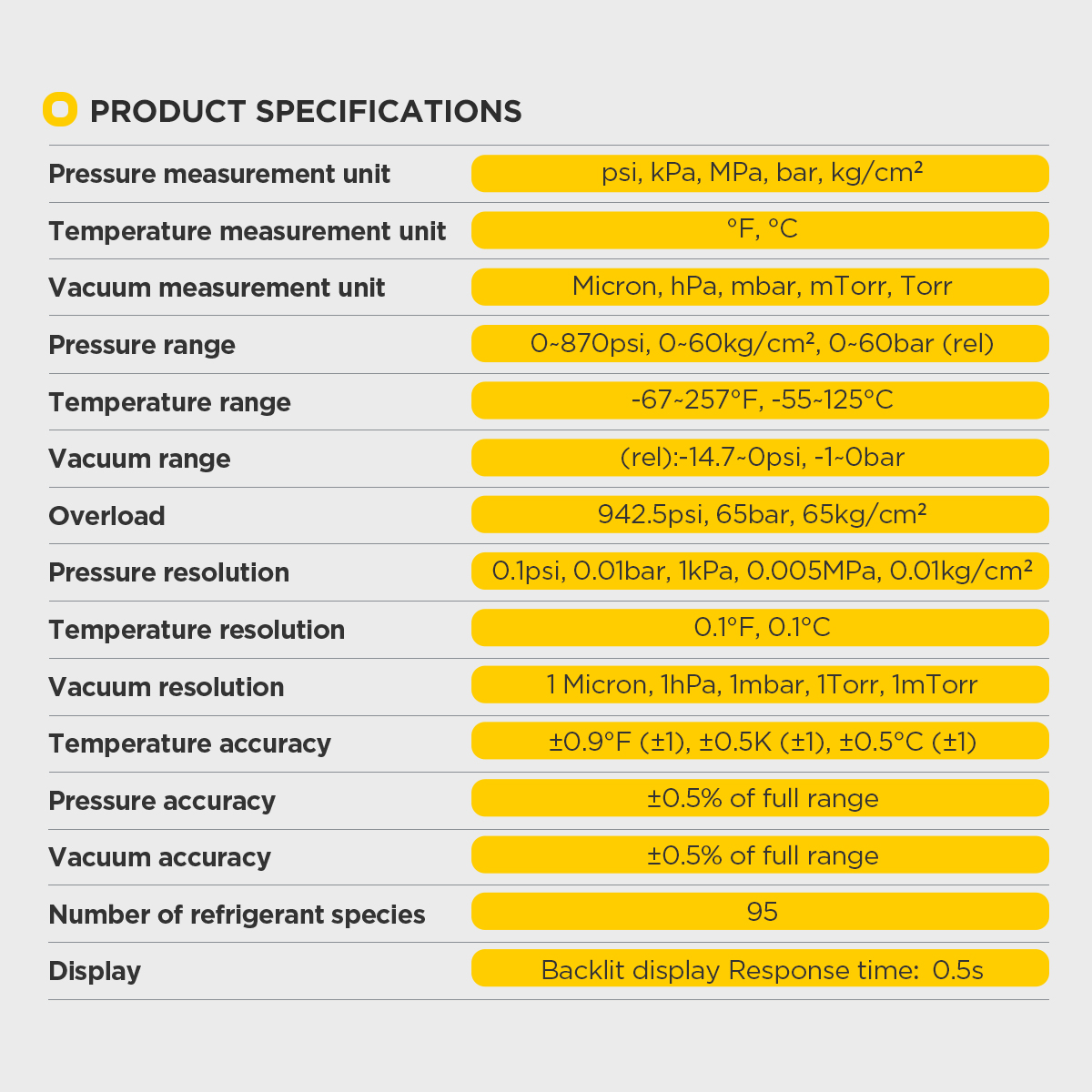

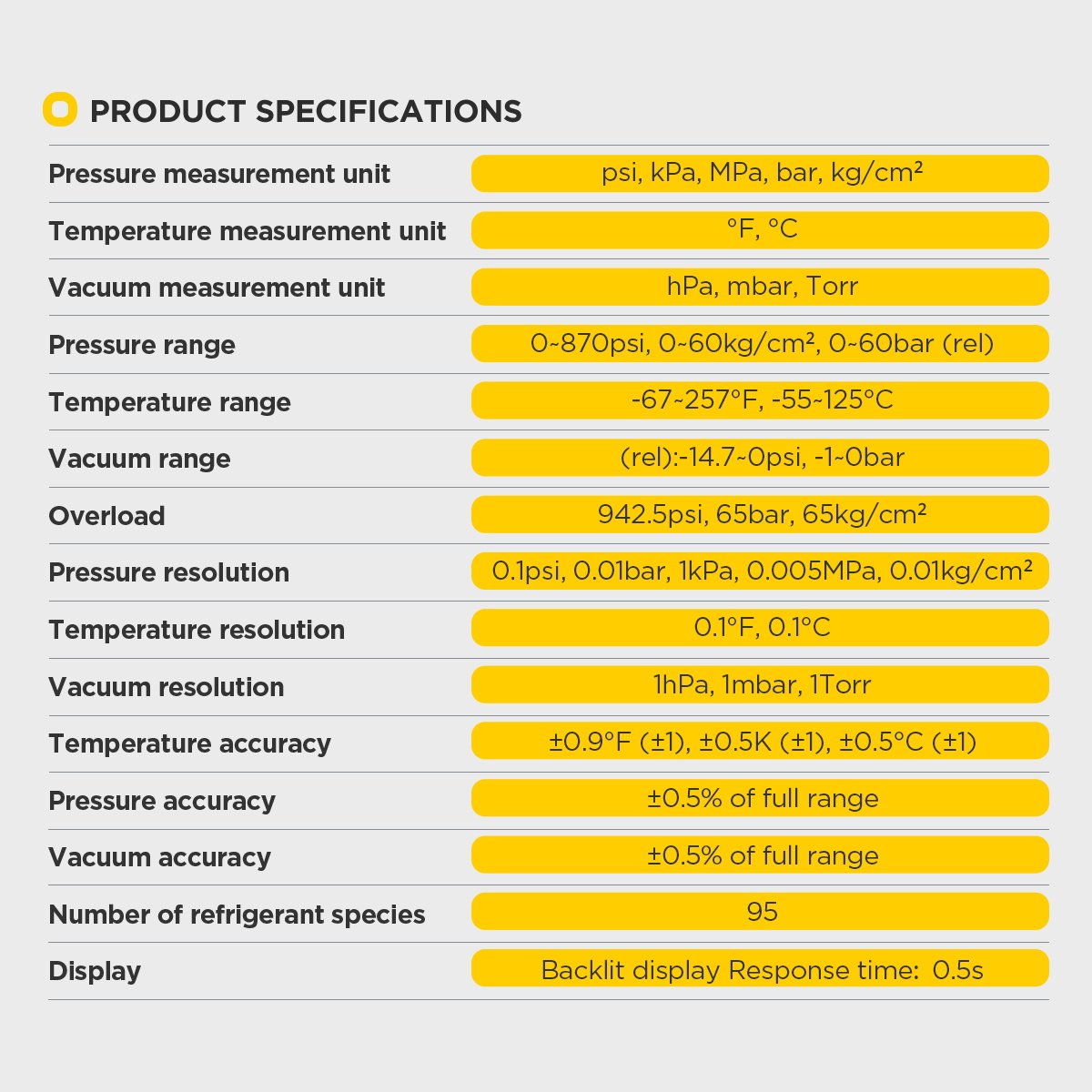

The pressure test range is -101Kpa to 6 Mpa (-0.1 bar to 60 bar).
The ultimate pressure is 10 MPa (100 bar).
The maximum working pressure of a standard hose is 600 PSI (approximately 4.13Mpa, 41.3 bar). The ultimate pressure is 3000 PSI (about 20.68Mpa, 206.8bar).
Please check the rated pressure value of the device under test before testing. Do not use if it is beyond the measuring range of the device. If the packaged hose does not meet your pressure requirements, suitable alternatives can be tested.
Do not use or store the device in areas with high temperature, high humidity, flammable, explosive, or strong electromagnetic fields.
To avoid equipment damage or hazard, do not modify the equipment’s internal circuitry.
Wear approved protective equipment to protect the user during testing.
Please use it in a well-ventilated environment to prevent inhalation of toxic gases.

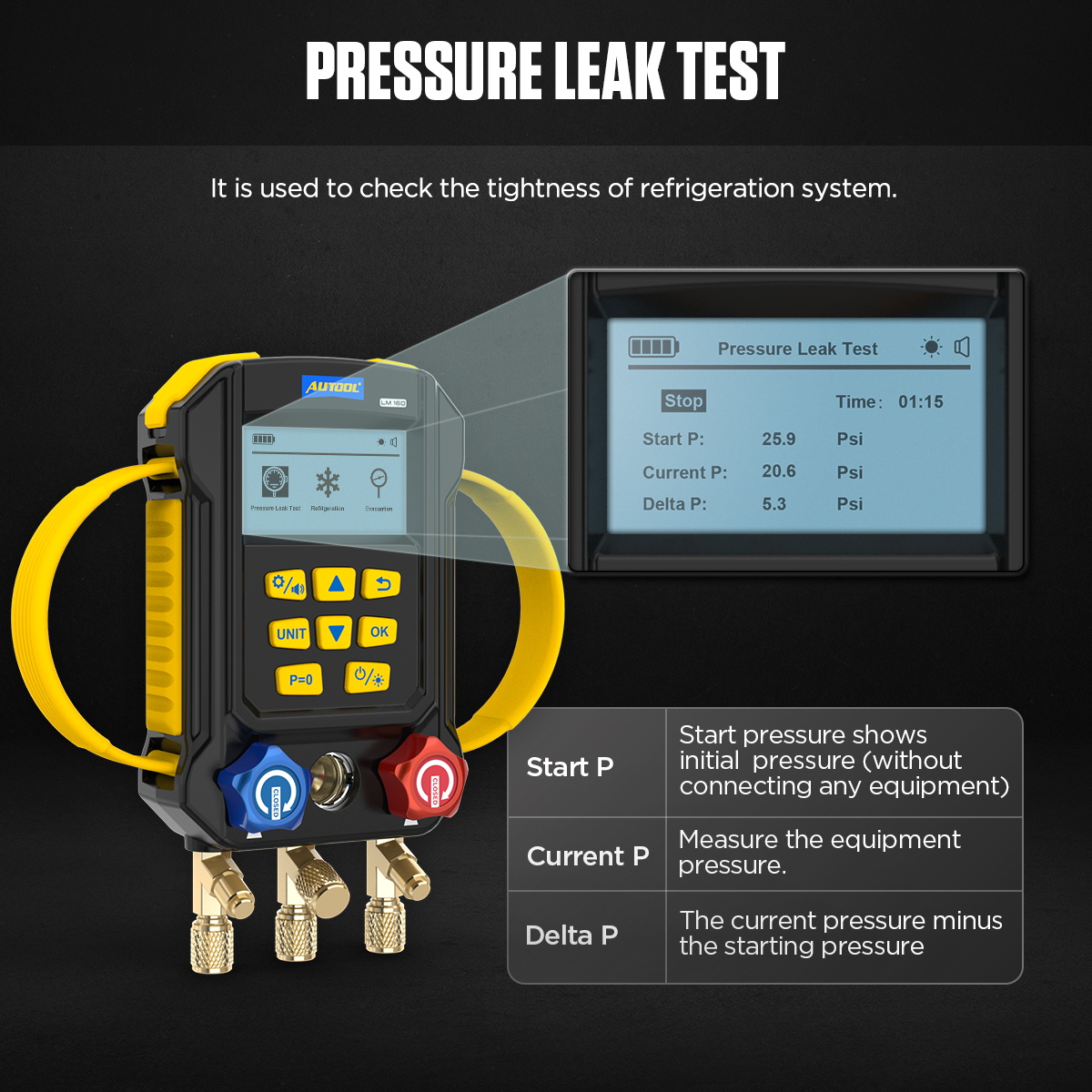

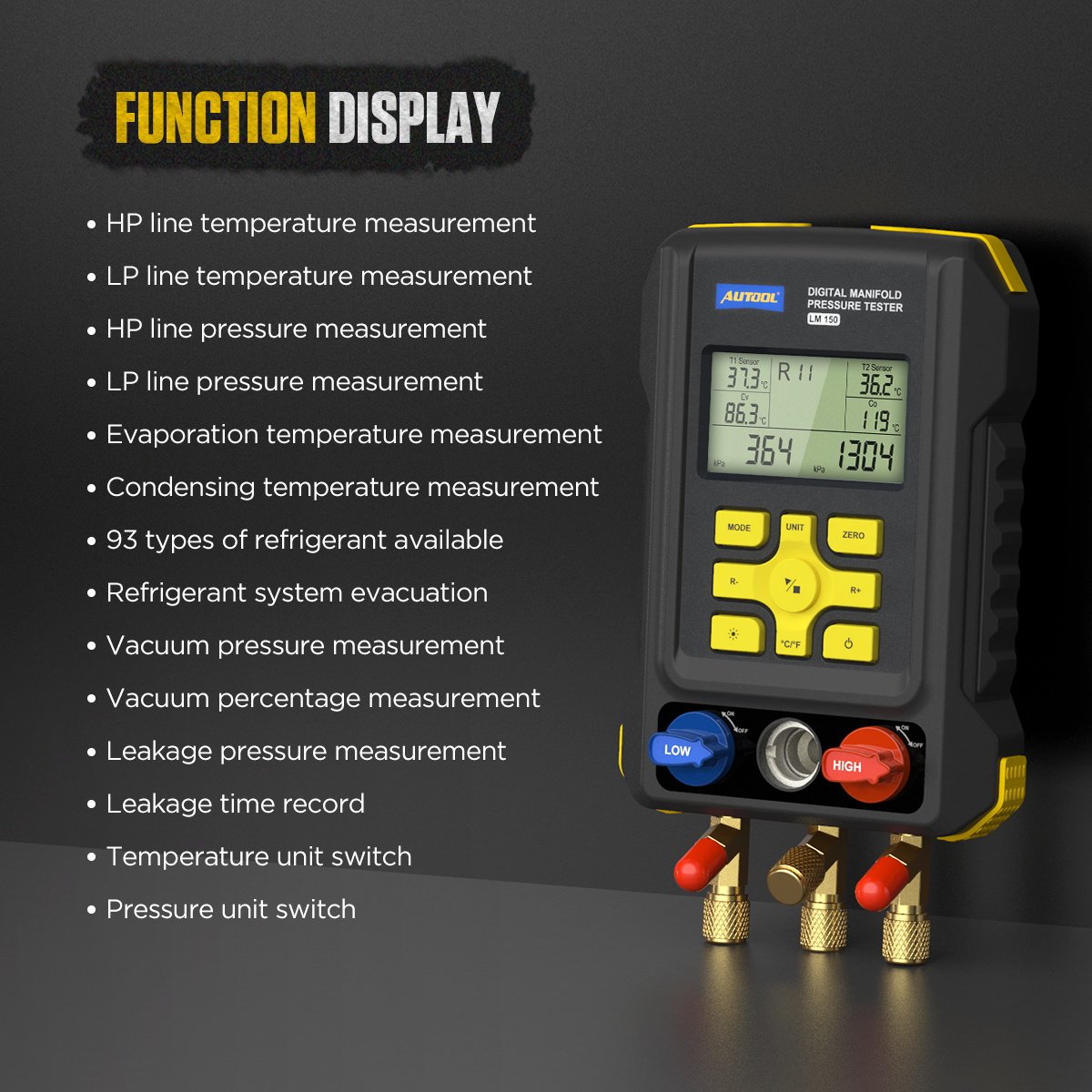

Pressure Leak Test: It is used to check the tightness of the refrigeration system.

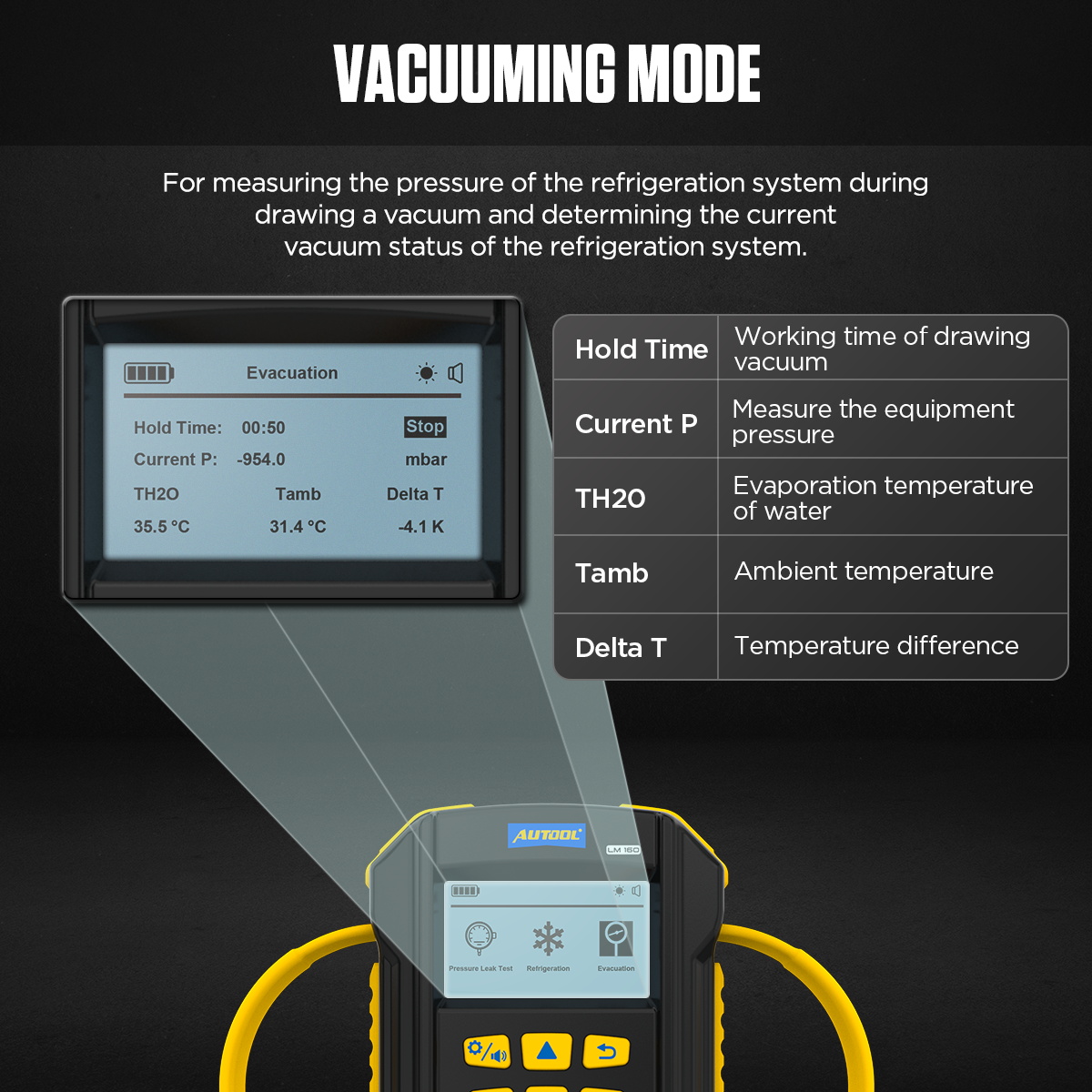

Vacuuming Mode: For measuring the pressure of the refrigeration system while drawing a vacuum and determining the current vacuum status of the refrigeration system.

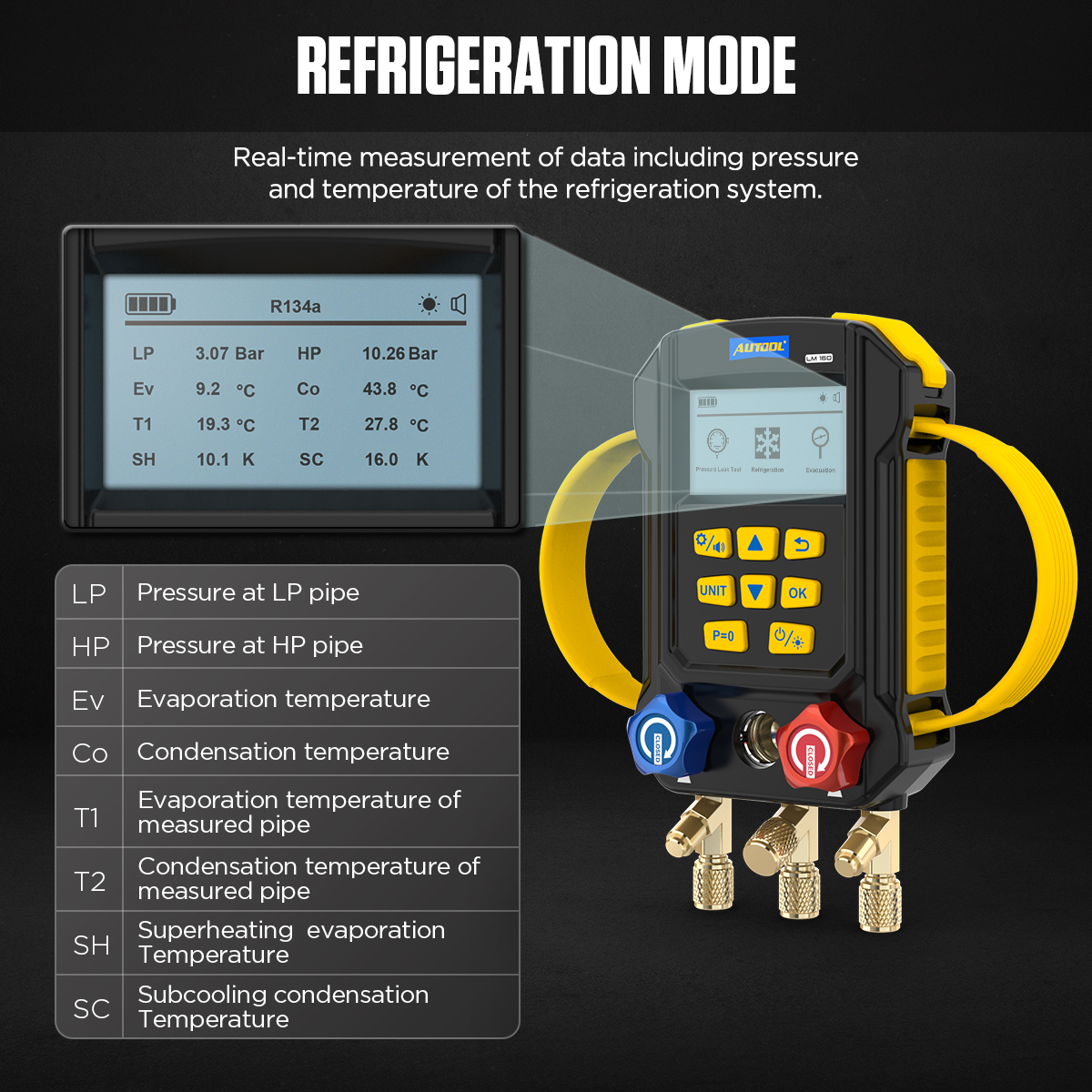

Refrigeration Mode: Real-time measurement of data including pressure and temperature of the refrigeration system.

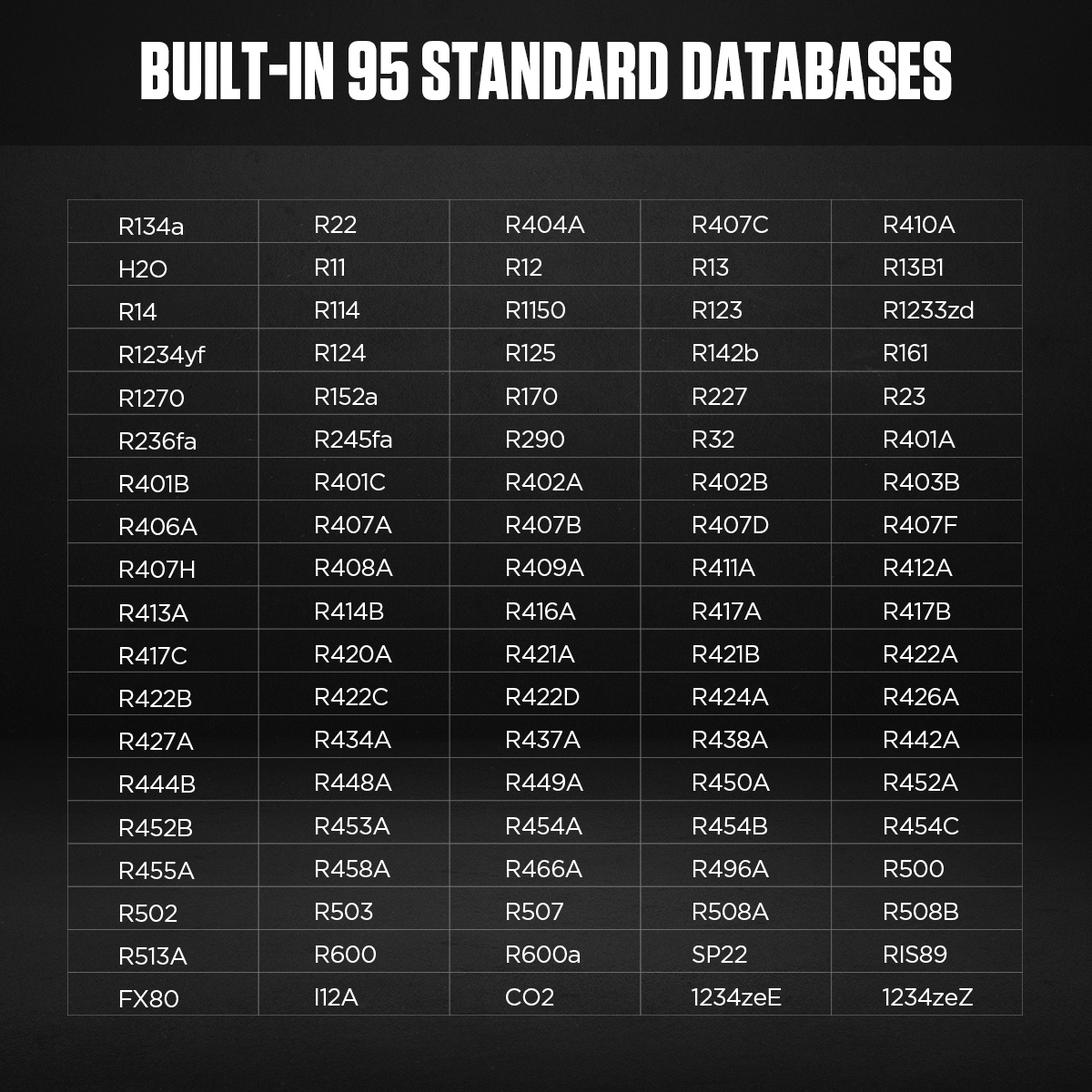

Build-in 95 Standard Databases: Satisfy your different needs. Like R134a, R22, H2O, R401C, 1234zeE, etc.

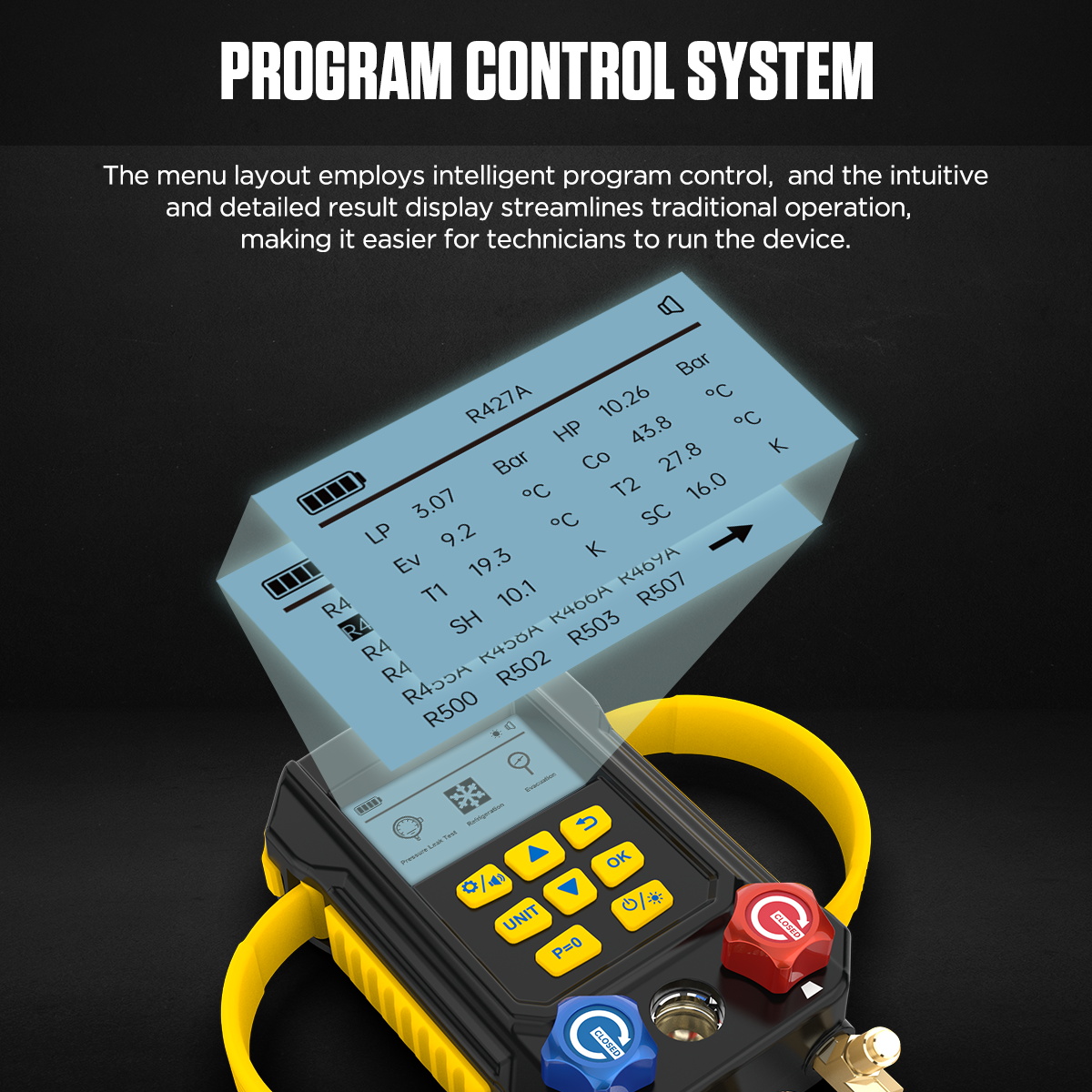

Program Control System: The menu employs intelligent program control, and yje intuitive and detailed result display streamlines traditional operation, making it easier for technicians to run the device.

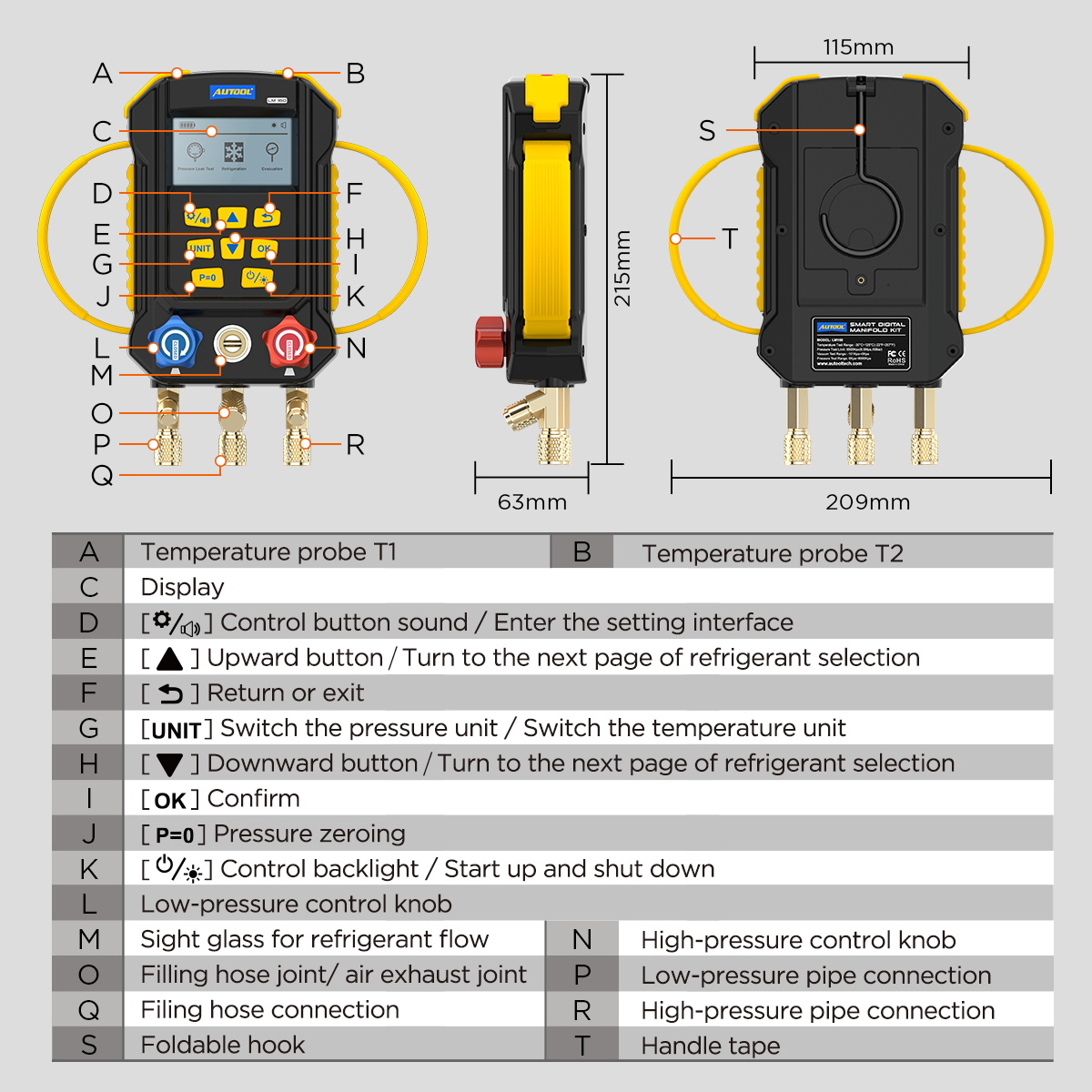

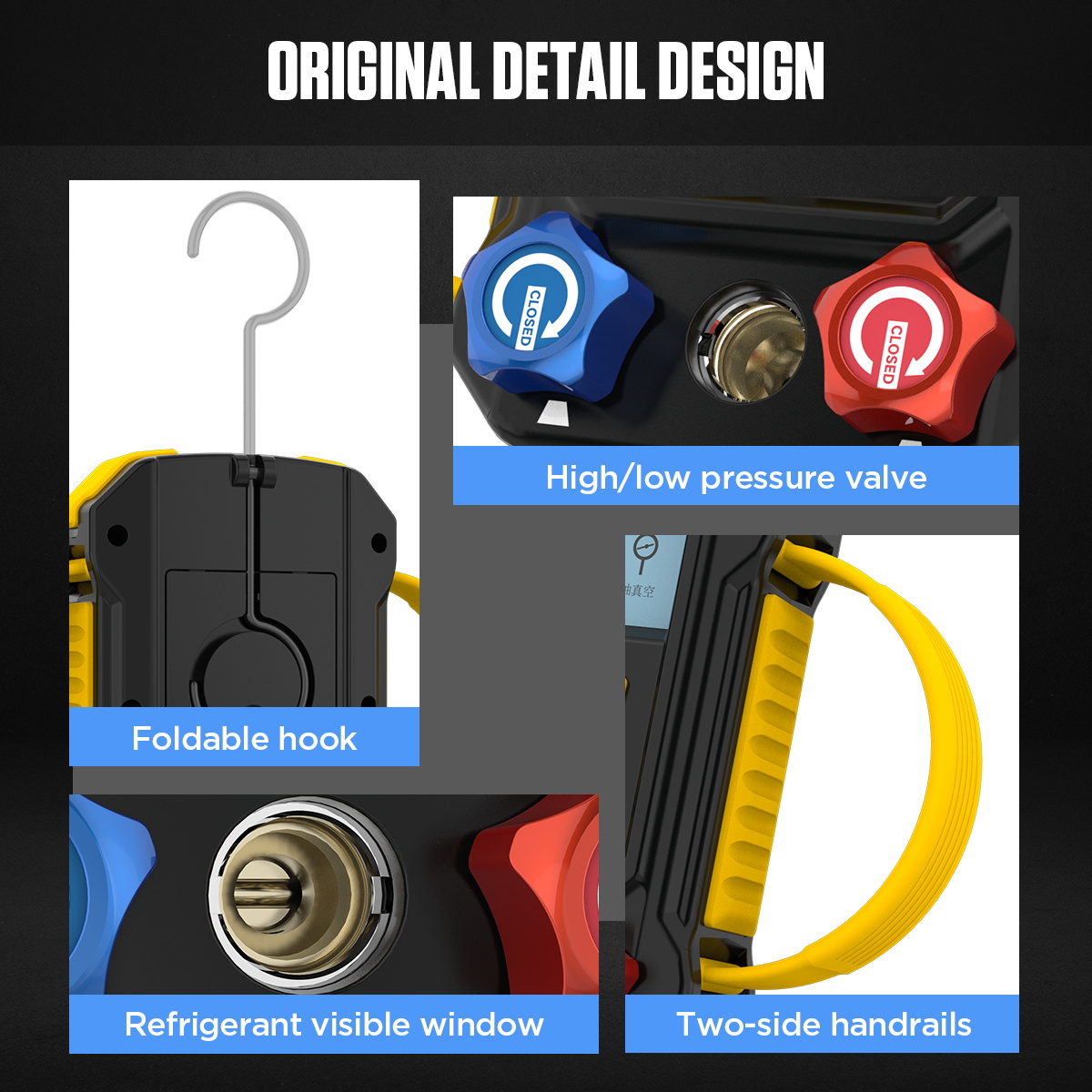

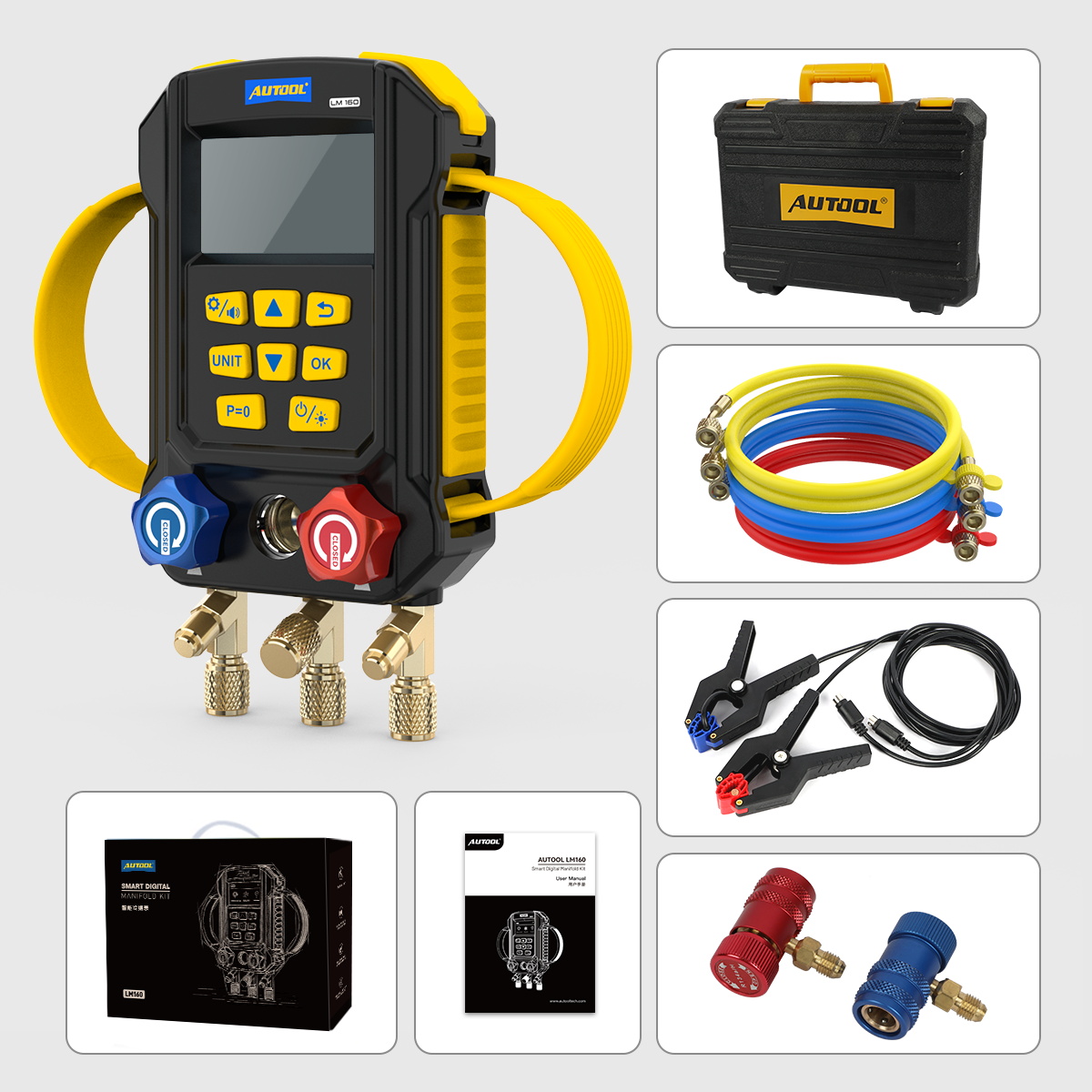

Original Detail Design: High/low-pressure valve, foldable hook, refrigerant visible window, and two-sided handrail are more convenient for users to operate the equipment.

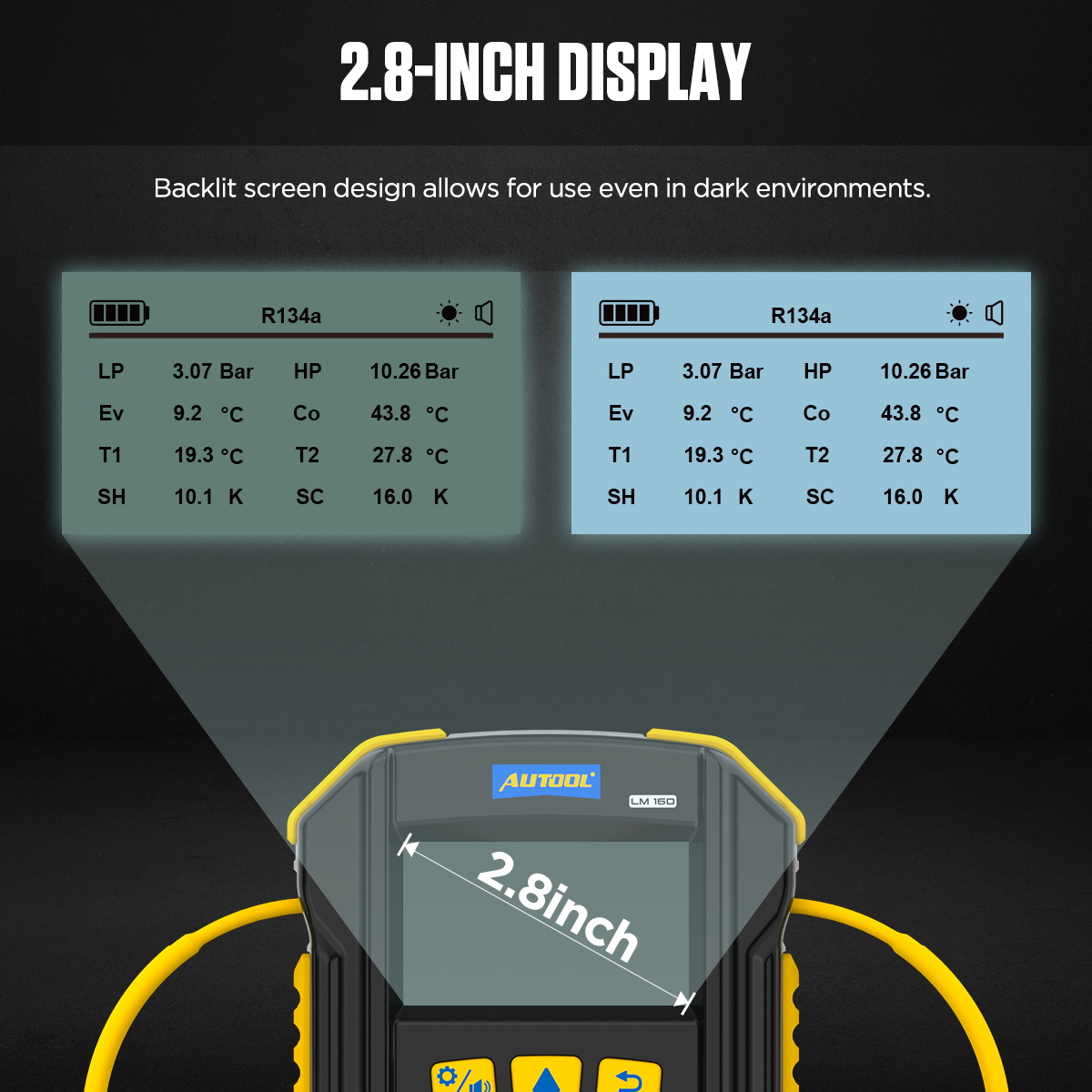

2.8-inch Display: Backlit screen design allows for use even in dark environments.

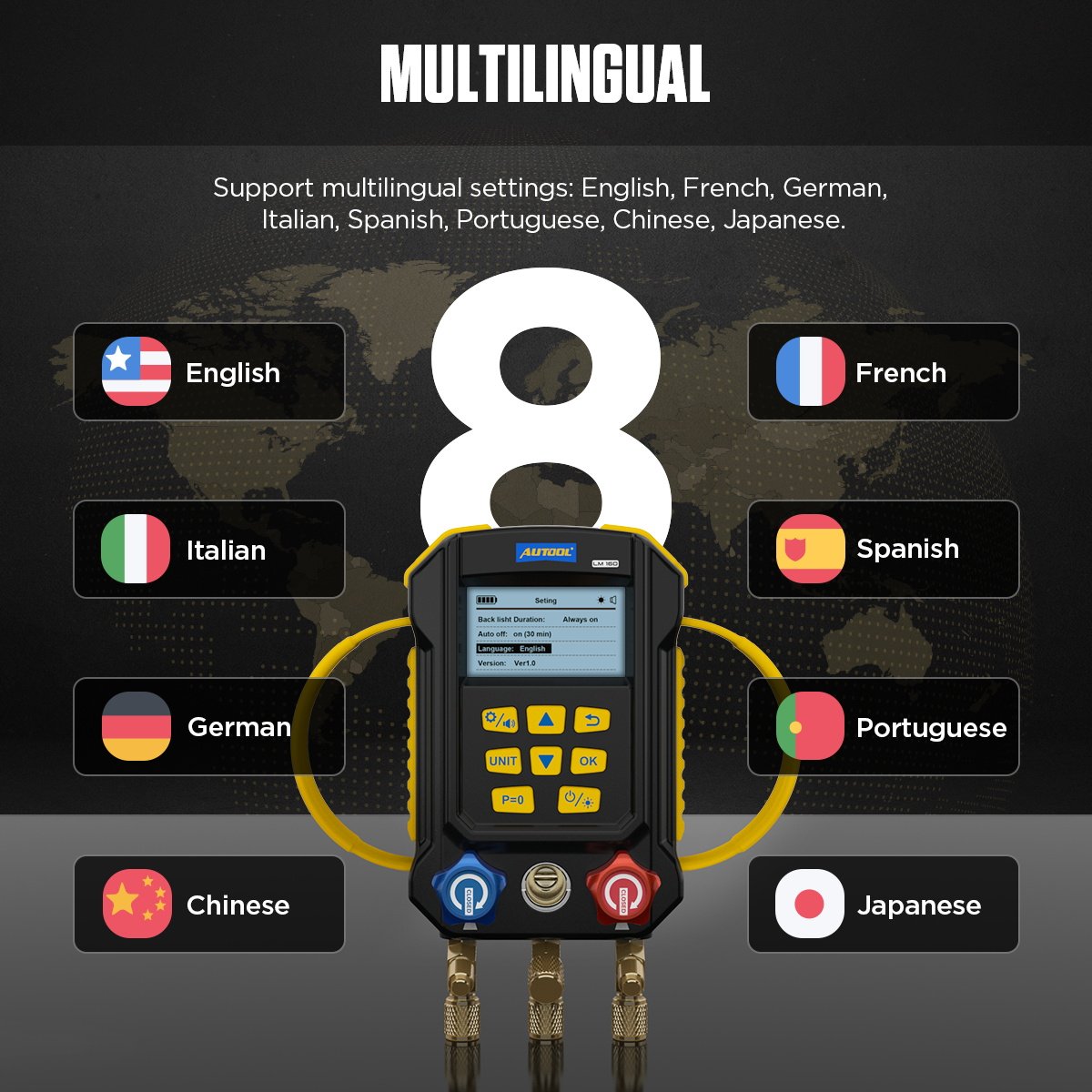

Multilingual Support: Support multilingual settings: English, French, German, Italian, Spanish. Portuguese, Chinese, Japanese.

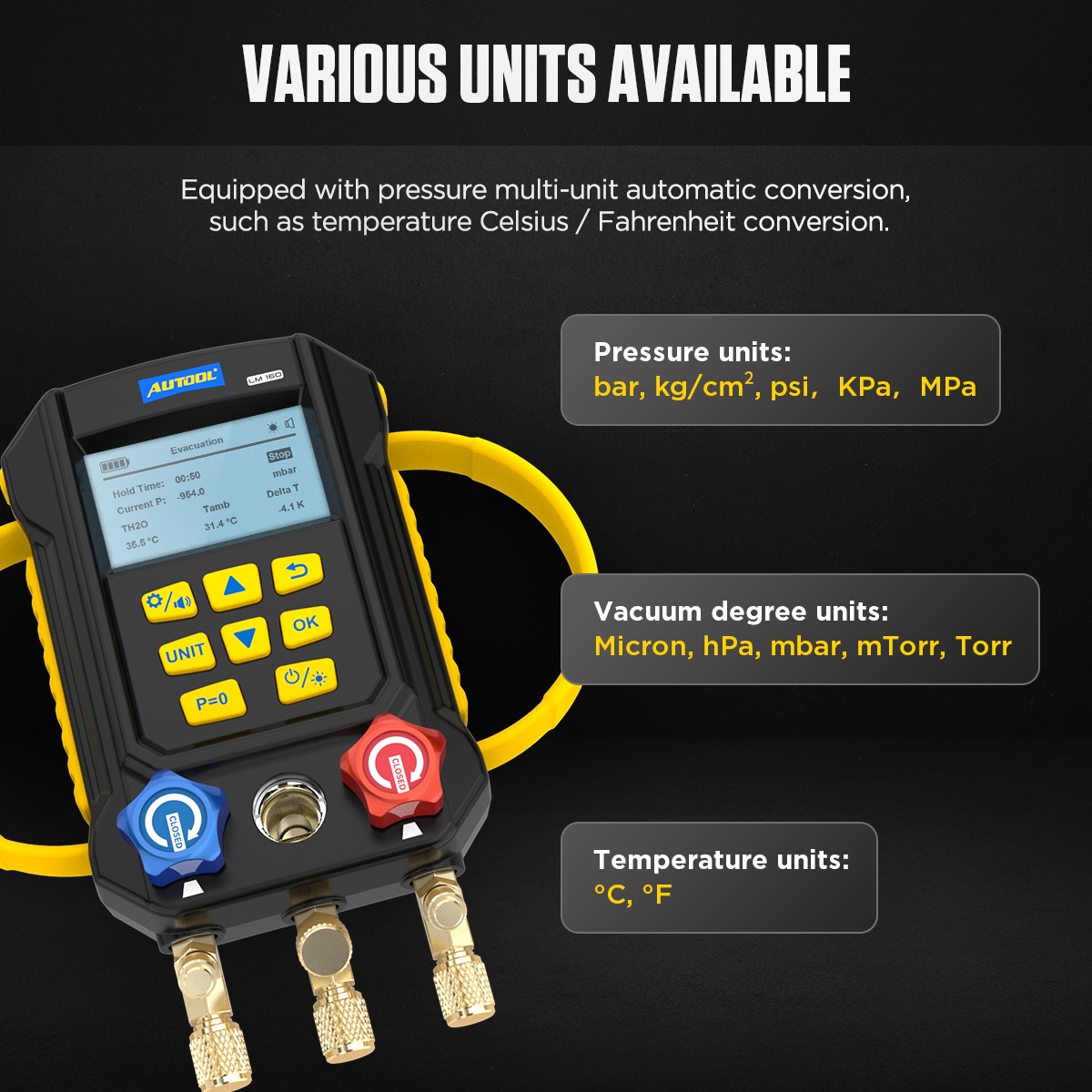

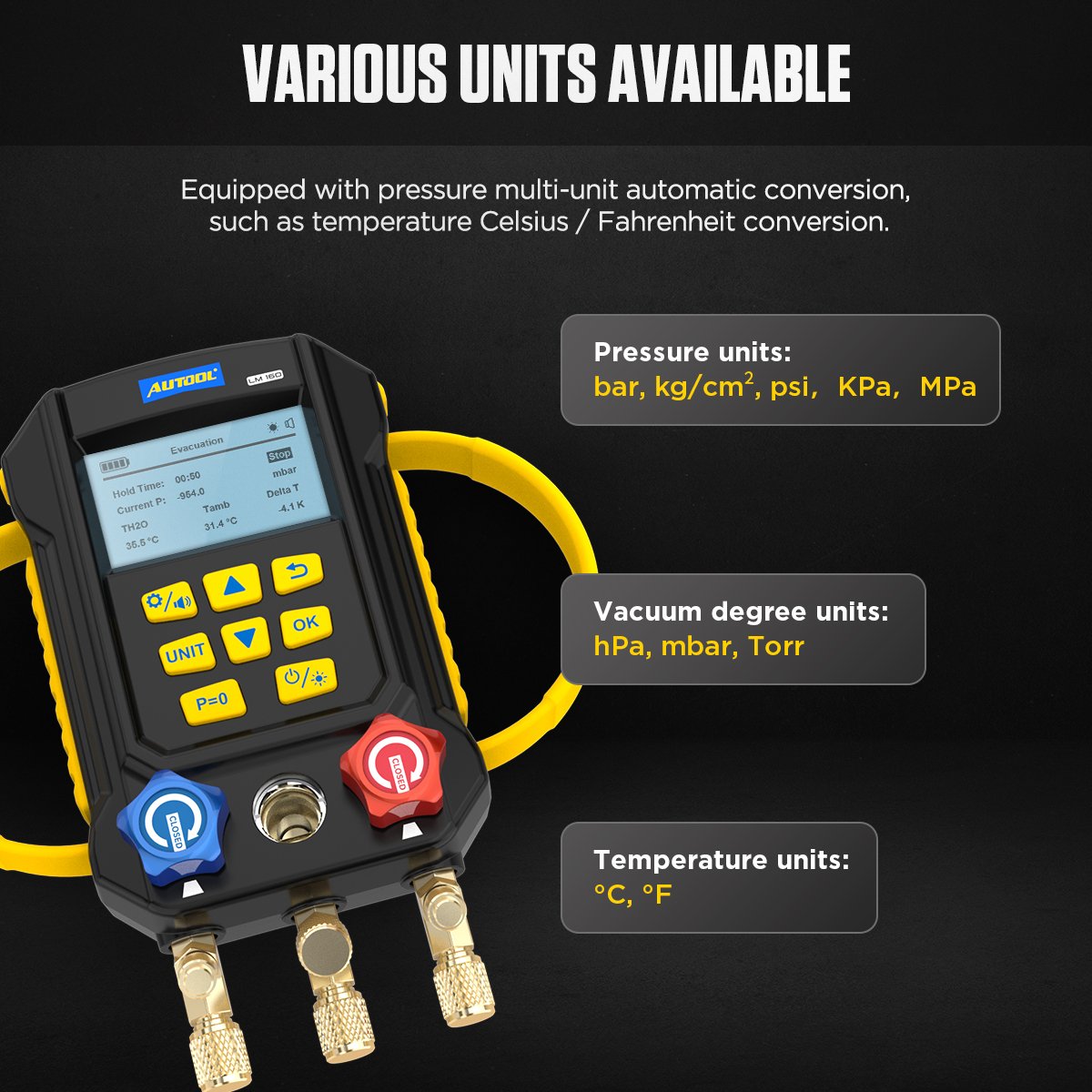

Various Units Available: Equipped with pressure multunit automatic conversion such as temperature Celsius/Fahrenheit conversion.
Three-Year Warranty, Lifetime Maintenance: For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.
