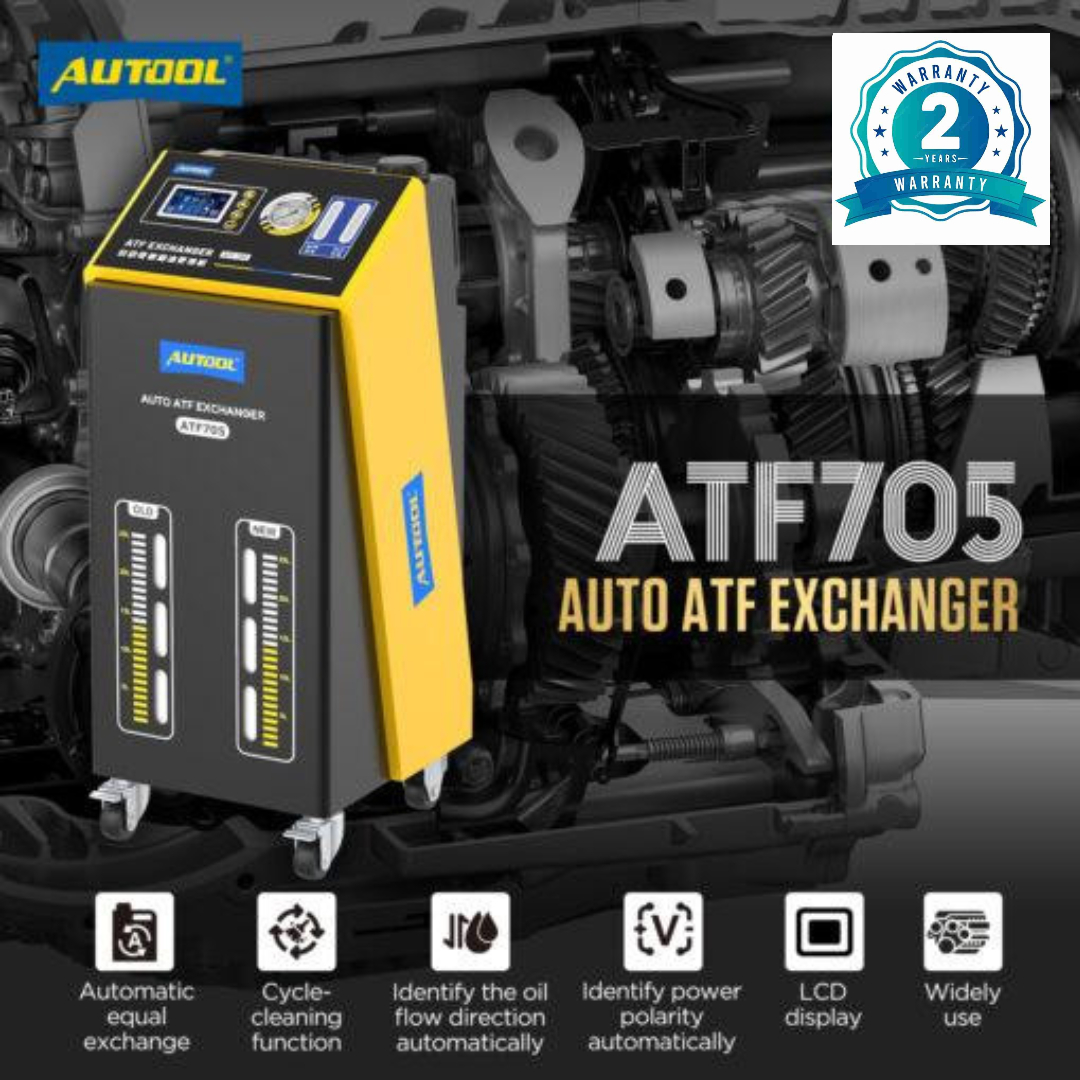

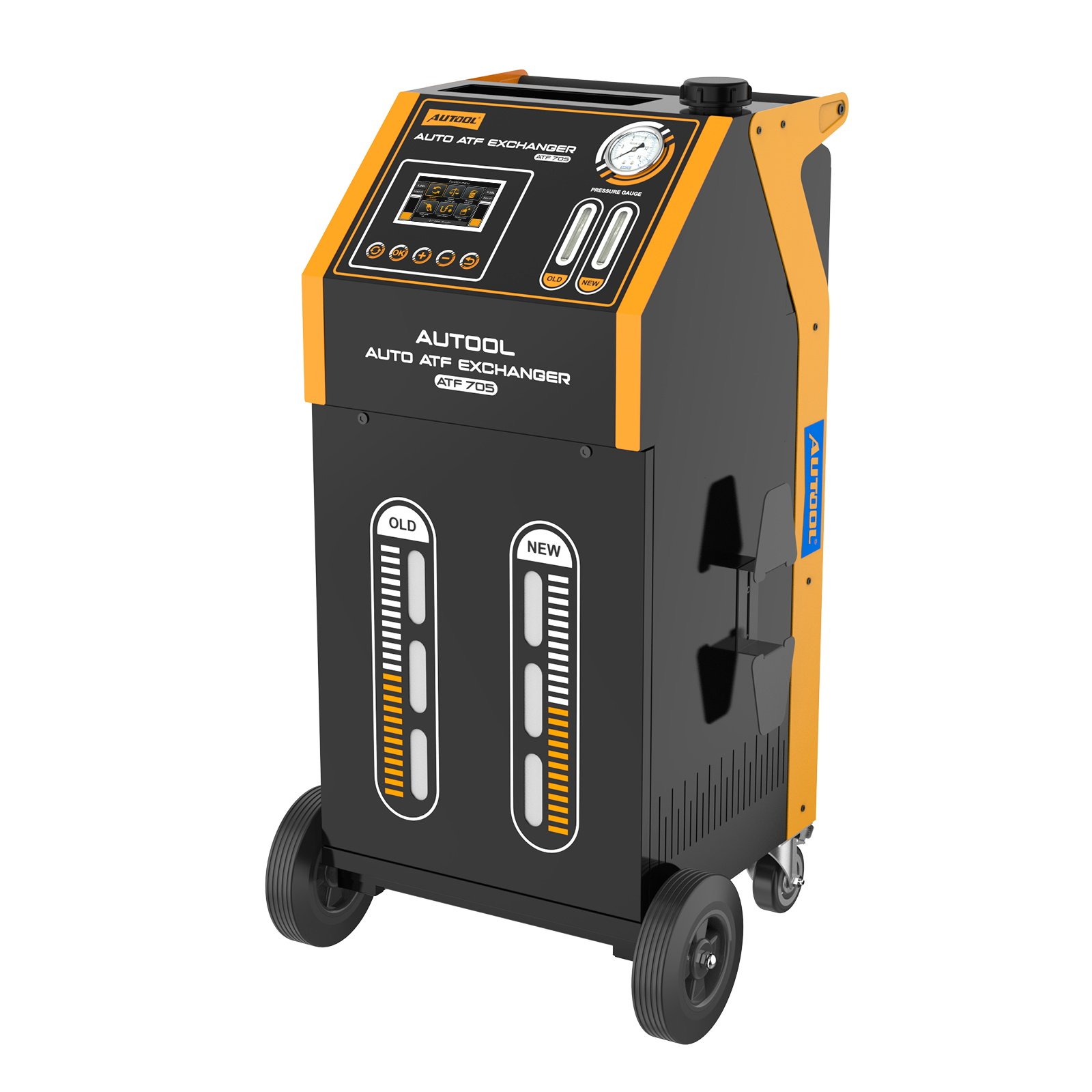

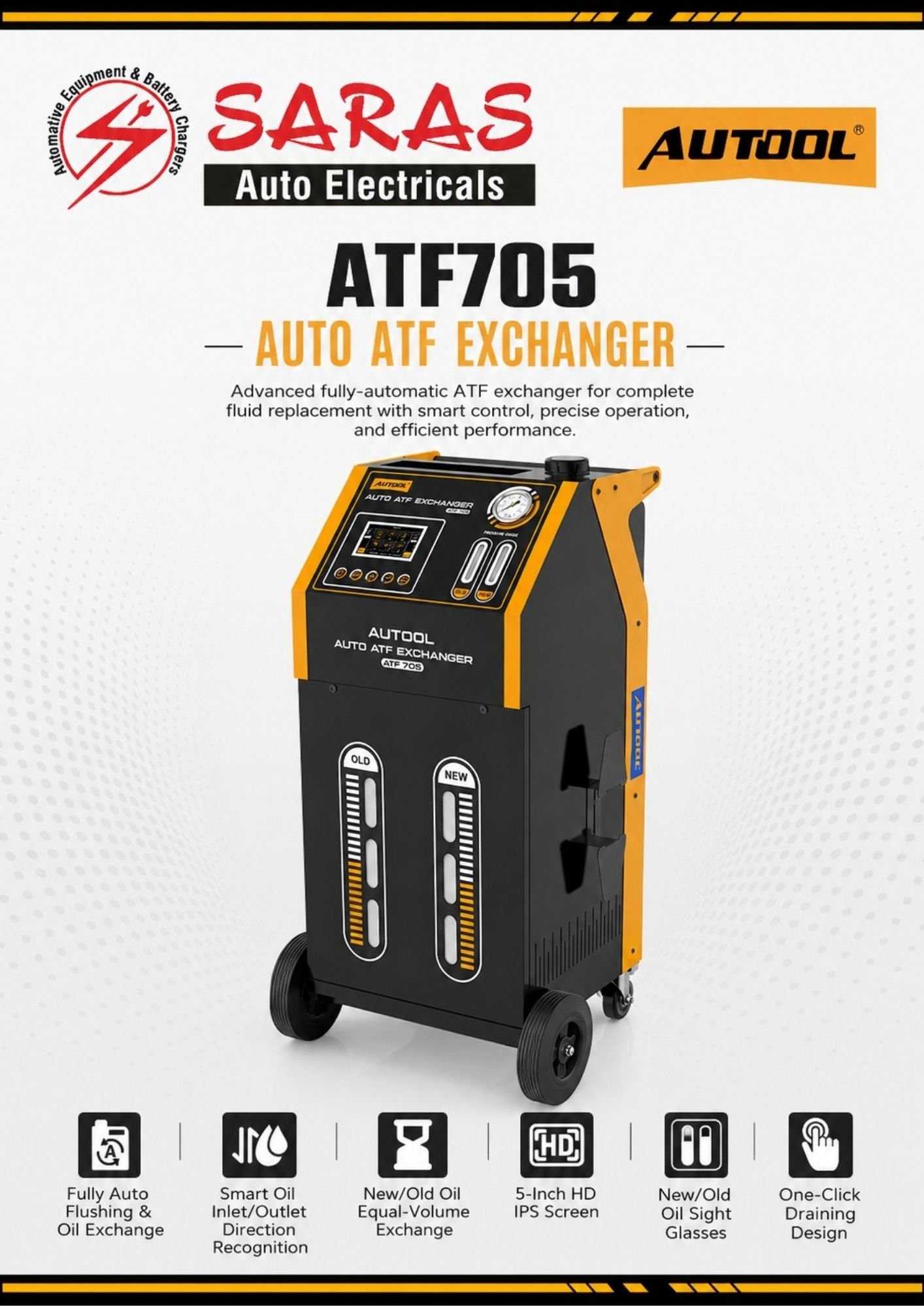

AUTOOL ATF705 Automatic Transmission Fluid ATF Exchanger

₹129,800.00

Automatic: Fully automated program control for high-precision, equal quantity exchange between new and old fluid. Effectively solves the problem of incomplete manual replacement of transmission fluid.
Service and Quality: We provide a three-year warranty. If you have any problems, please contact us, and we will respond within 24 hours! Online Support>>

Categories: Car Maintenance Tools, Transmission Fluid Exchanger

Description
Reviews (0)

AUTOOL ATF705 ATF Exchanger Automatic Transmission Fluid Exchanger Oil Filling & Outing Tool for Gasoline Car & Diesel Vehicle

AUTOOL ATF705 full-automatic transmission fluid exchange can realize fully automatic operation, complete cleaning, and high-precision and equal-volume oil change in a short time, and the oil change rate can reach more than 90%. The equipment has the control accuracy of replacing the same amount to ensure the replacement quality of the old and new oil for auto automatic transmission.

Why Need Automatic Transmission Fluid Exchange？

The structure of auto-automatic transmission is extremely precise and complex. The traditional oil change method only removes about 25% of the old oil. Metal chips and oil sludge remain in the transmission, mixing with new oil and causing contamination. This leads to slow acceleration, gear shifting vibrations, overheating, and increased fuel consumption. Failure is likely to occur if ignored.
Nowadays, Automatic transmission fluid exchangers on the market do not accurately control the equivalent precision of transmission fluid changes, but simply manually adjust the inlet and outlet oil valves to control the equivalent oil change. Improper manual control can easily damage the automatic transmission due to excessive or insufficient oil filling, which is a common cause of automatic transmission failures in daily life.

AUTOOL ATF705 Advantages

The AUTOOL automatic transmission fluid exchange adopts the latest process design in the world. The system combines the circulating cooling pressure of the automatic transmission oil with the output pressure of the AUTOOL automatic transmission fluid exchange system to inject new oil into the automatic transmission while removing the old oil. This synchronous circulating oil change mode ensures safe and efficient oil changes and allows for thorough maintenance of the transmission.

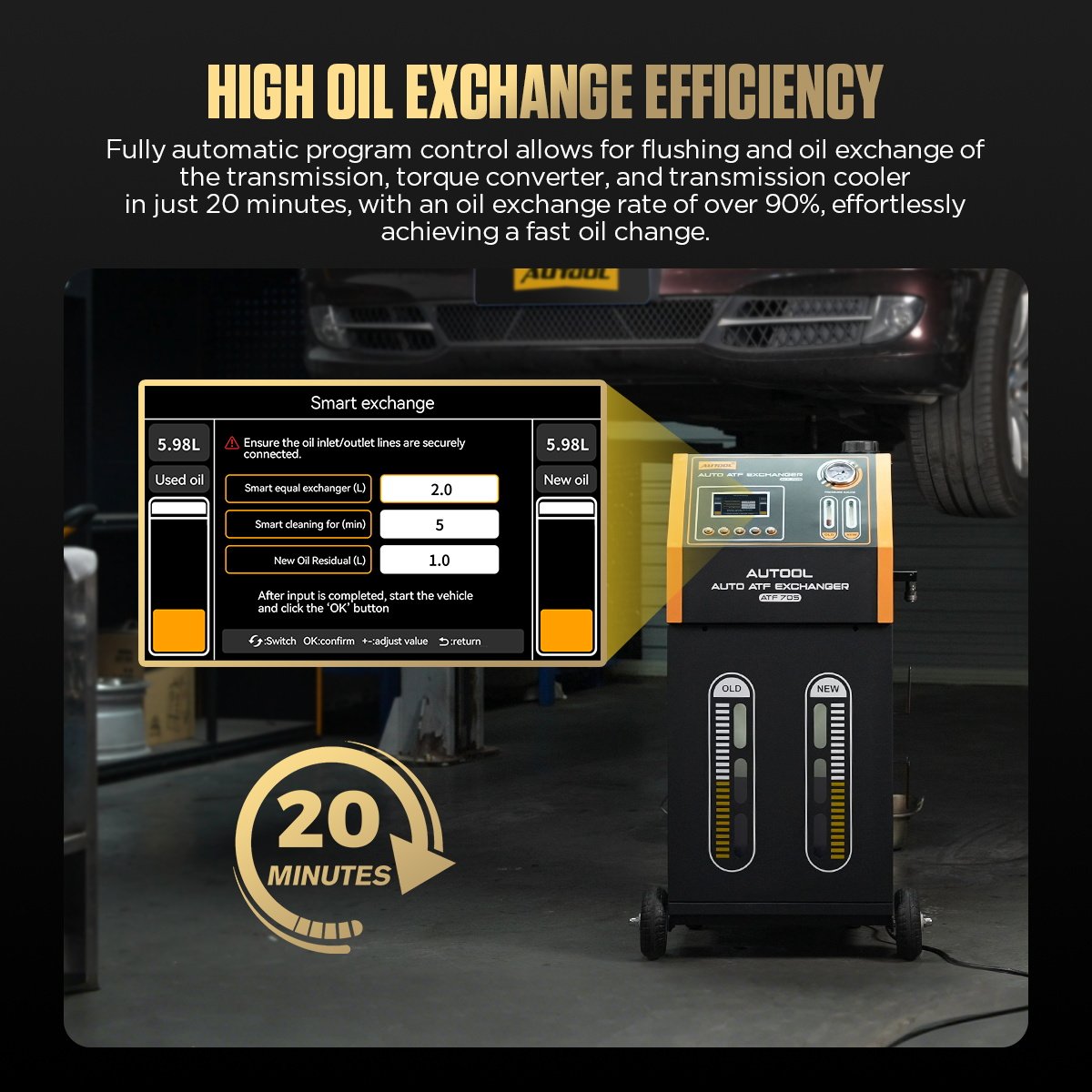

The automotive gearbox transmission fluid oil exchange flush cleaning machine can be used for 20 minutes to complete the cleaning and refilling of the transmission, hydraulic torque converter, and transmission radiator. It can not only completely remove metal debris and oil sludge impurities, but also the oil change rate is close to 100%. It can effectively solve the problem of incomplete manual replacement of transmission oil, restore transmission performance, reduce transmission vibration, reduce transmission temperature, reduce transmission oil consumption, and extend transmission service life.

Warm Tips

To achieve the best cleaning results, the cleaning time should be set to more than 20mins. During the Cycle Cleaning process, the engine should be running, and different gears should be switched during the cleaning process, depending on the situation. Stay in each gear for approximately one minute.
When working in a high-speed gear, press the accelerator to reach a speed of 60 kilometers/hour or more to change the high-speed gear control oil route of the automatic transmission fluid.

AUTOOL ATF705 Manual

Download

What is the difference between Exchanger Automatic Transmission Fluid?

AUTOOL ATF705 Automatic Transmission Fluid Exchanger Functions:

Automatic Filling of ATF: The ATF705 automatically fills ATF, adjusting the flow of new oil to balance with old oil.
Automatic Reduction of ATF: The system reduces the flow of new oil if it flows faster than the old oil to maintain balance.

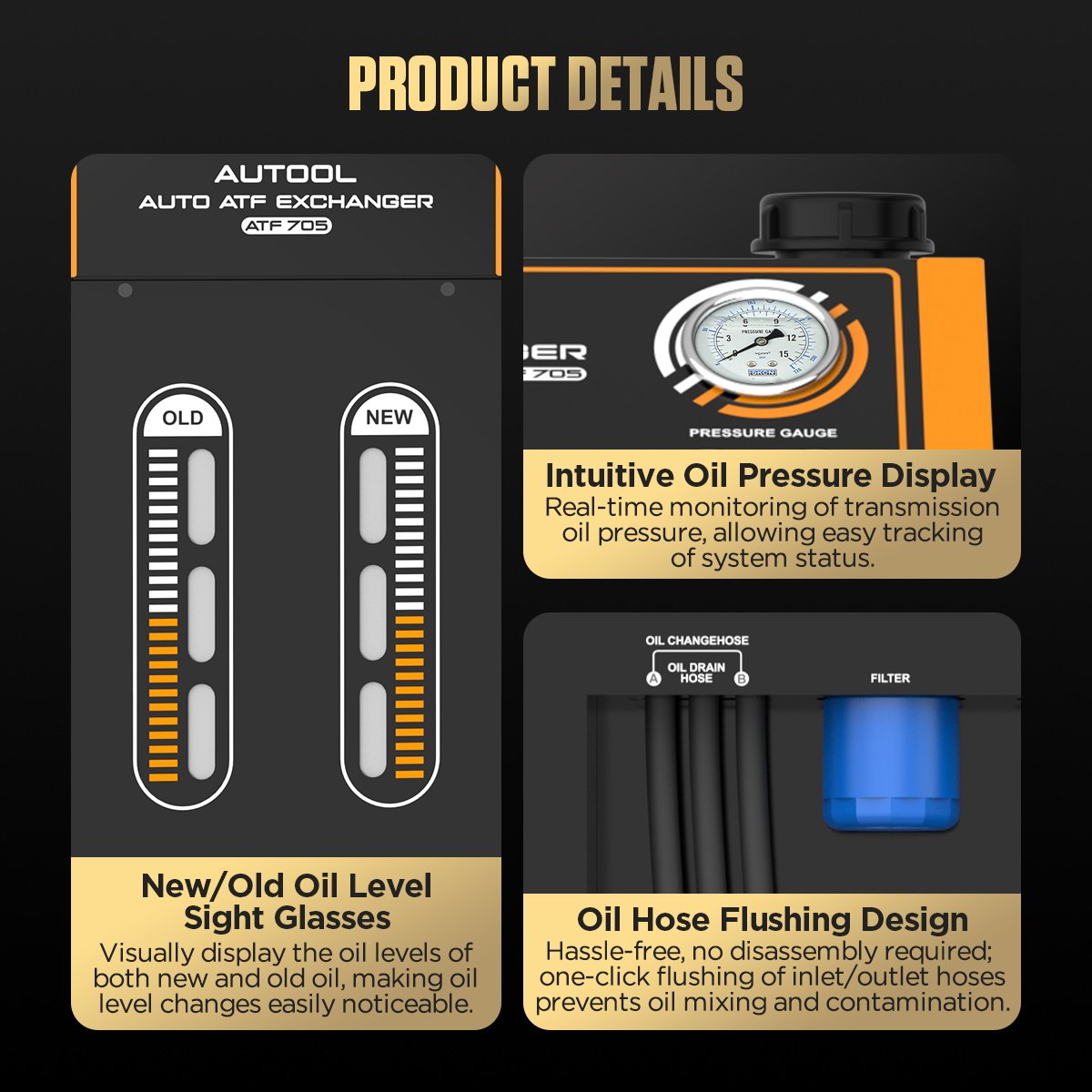

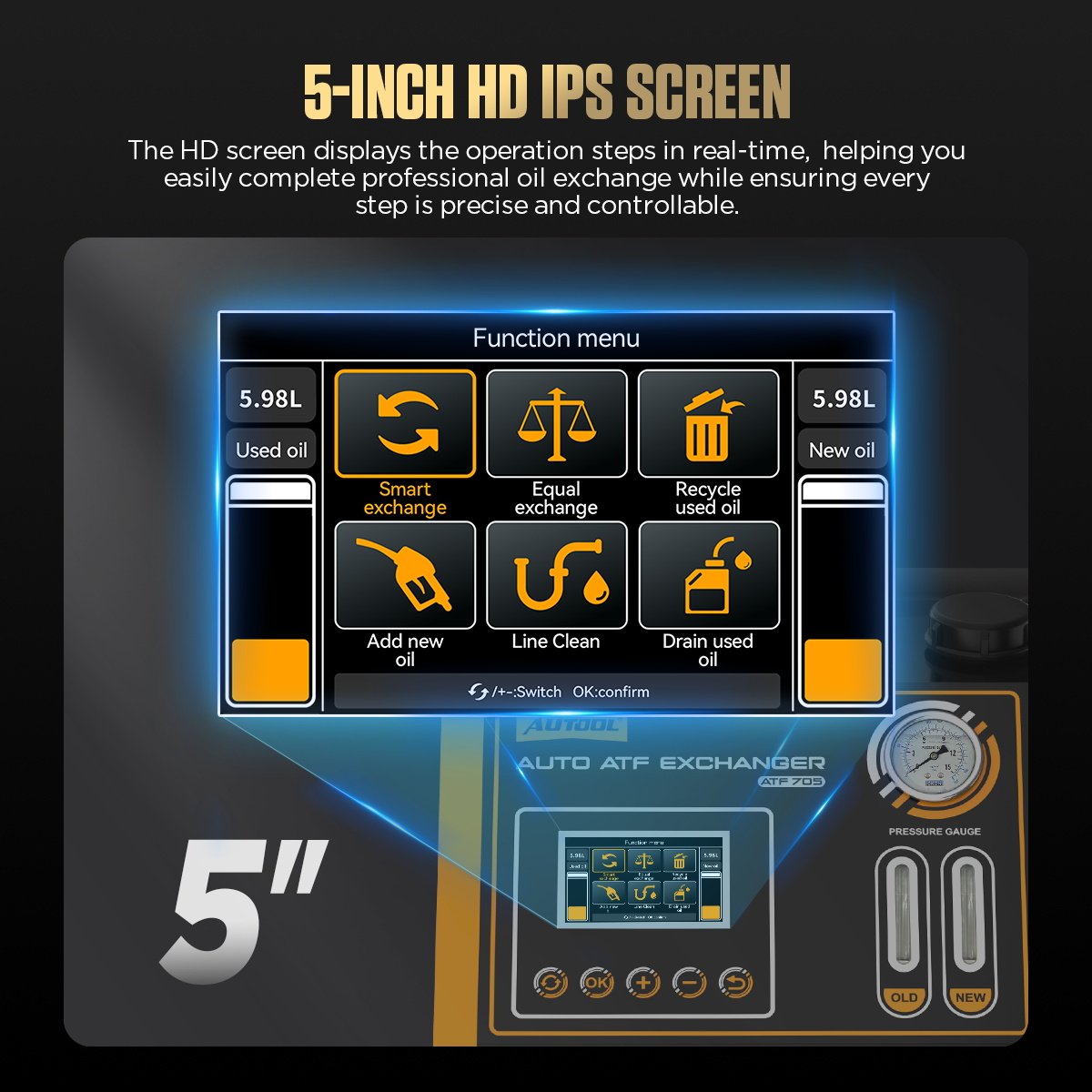

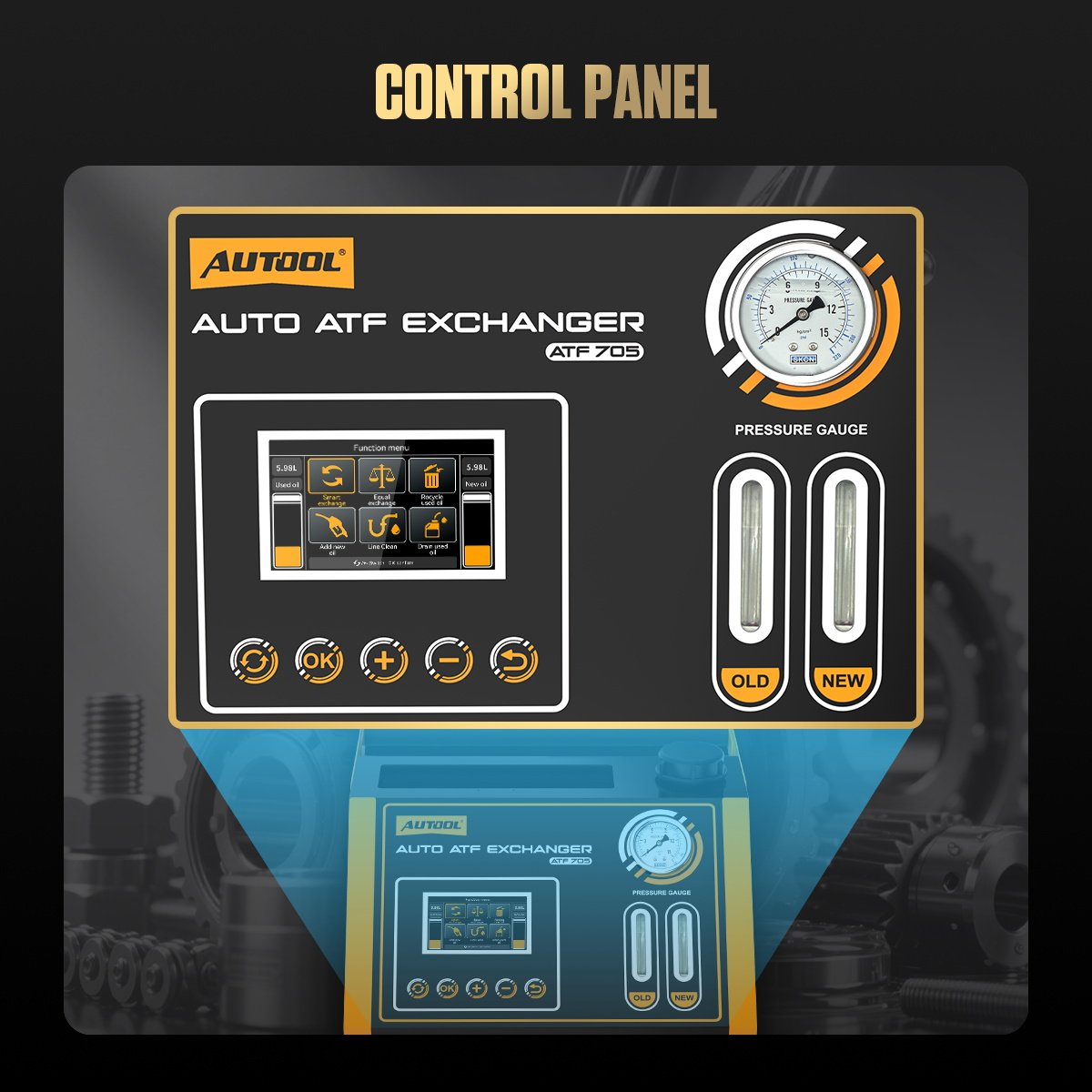

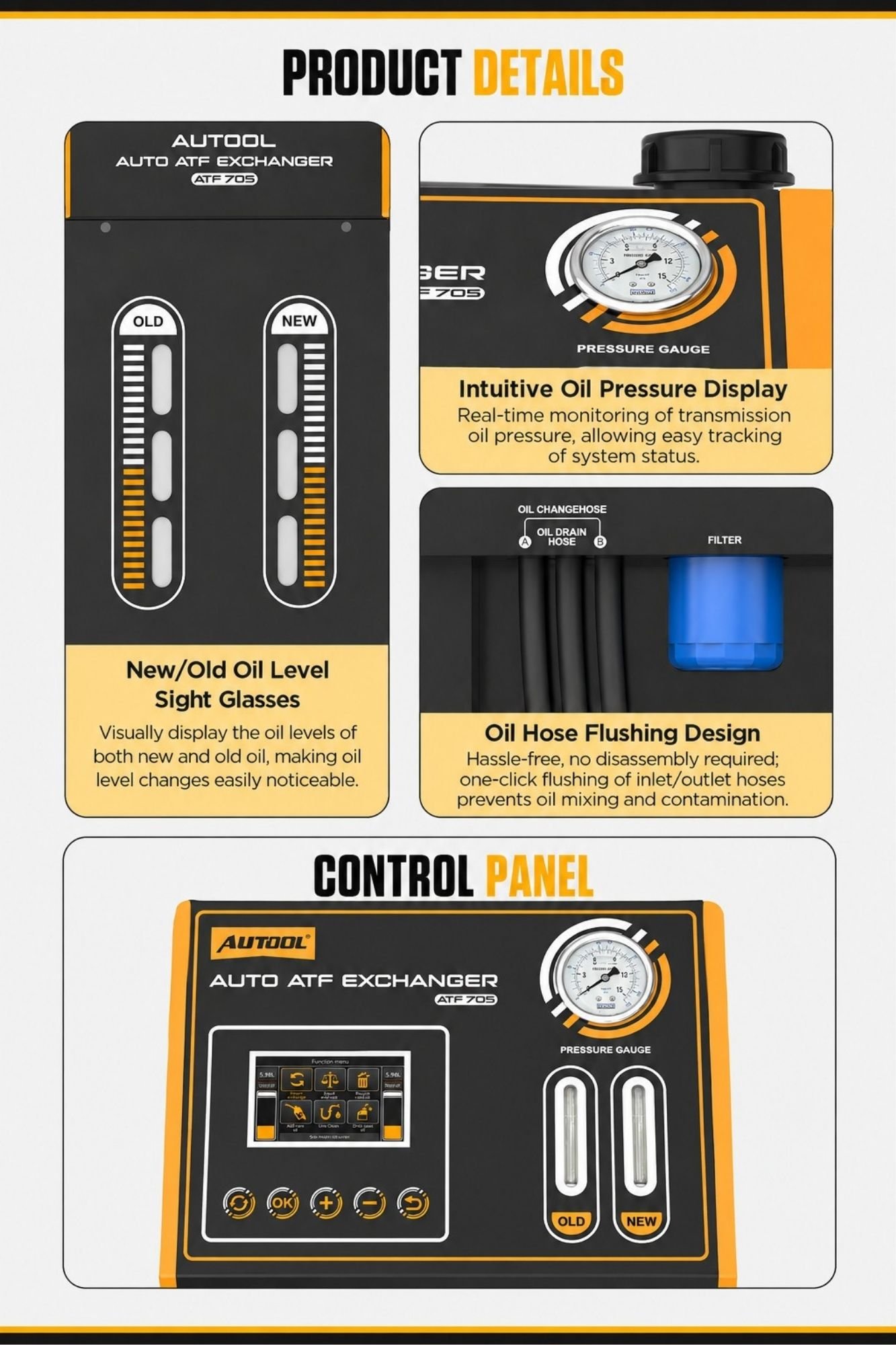

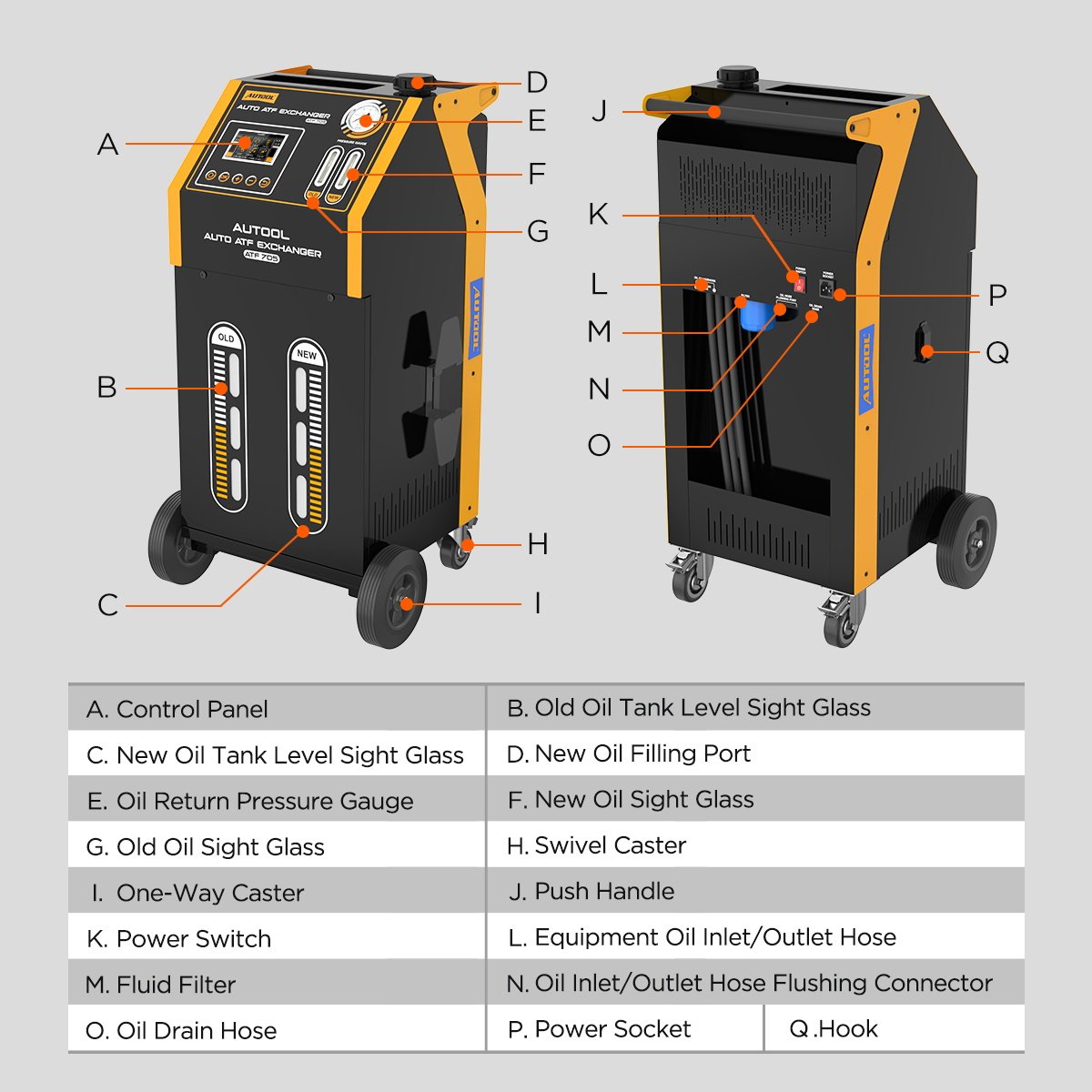

Visual Display: The ATF705 features a clear window displaying accurate oil pressure and temperature for easy reading.

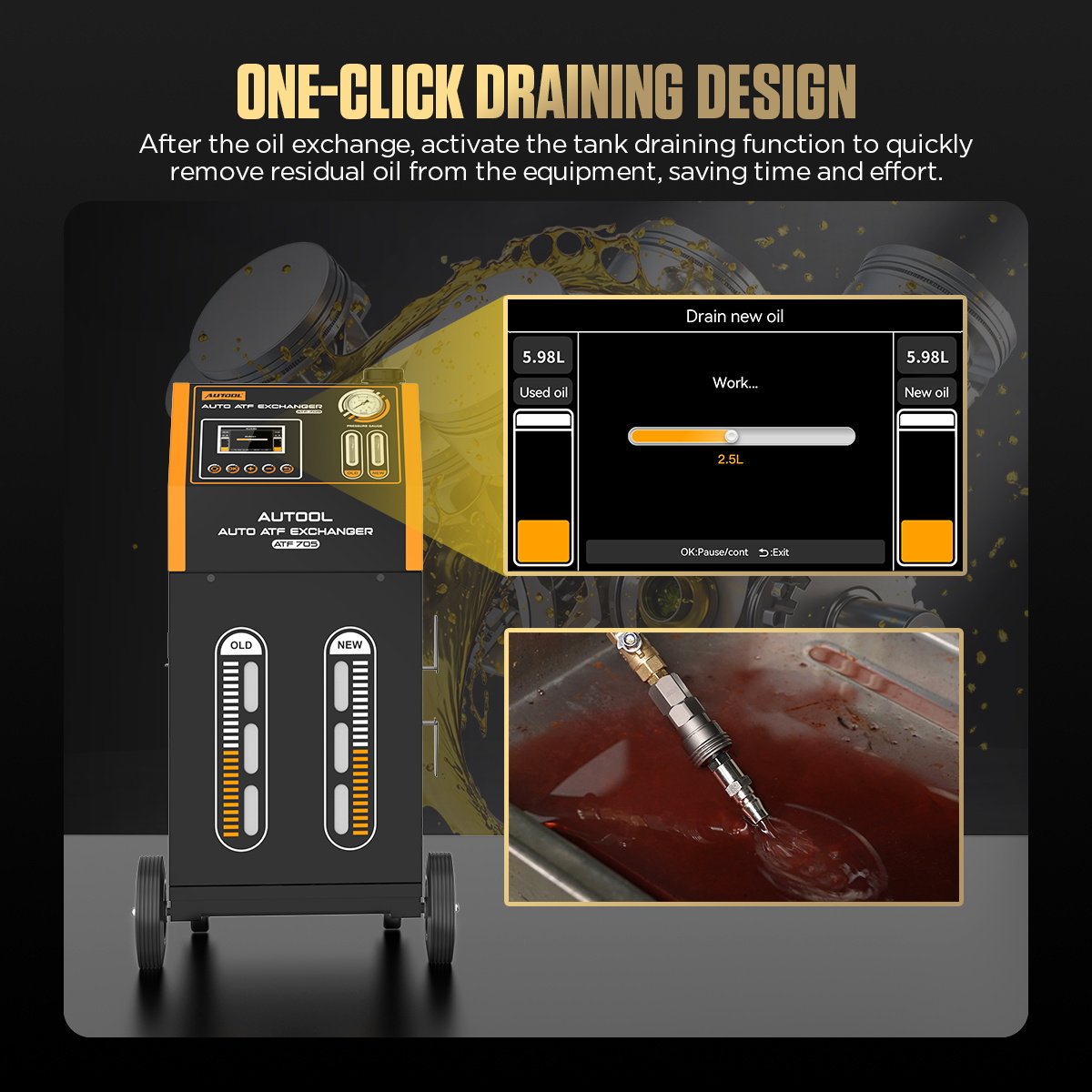

Effectively Solve the Problem: It drains both new and old oil tanks and dynamically replaces oil under pressure, achieving nearly 100% oil change and preventing blockages.
Improve Transmission Performance: Using the ATF705 helps maintain smooth transmission operation and reduces maintenance needs.

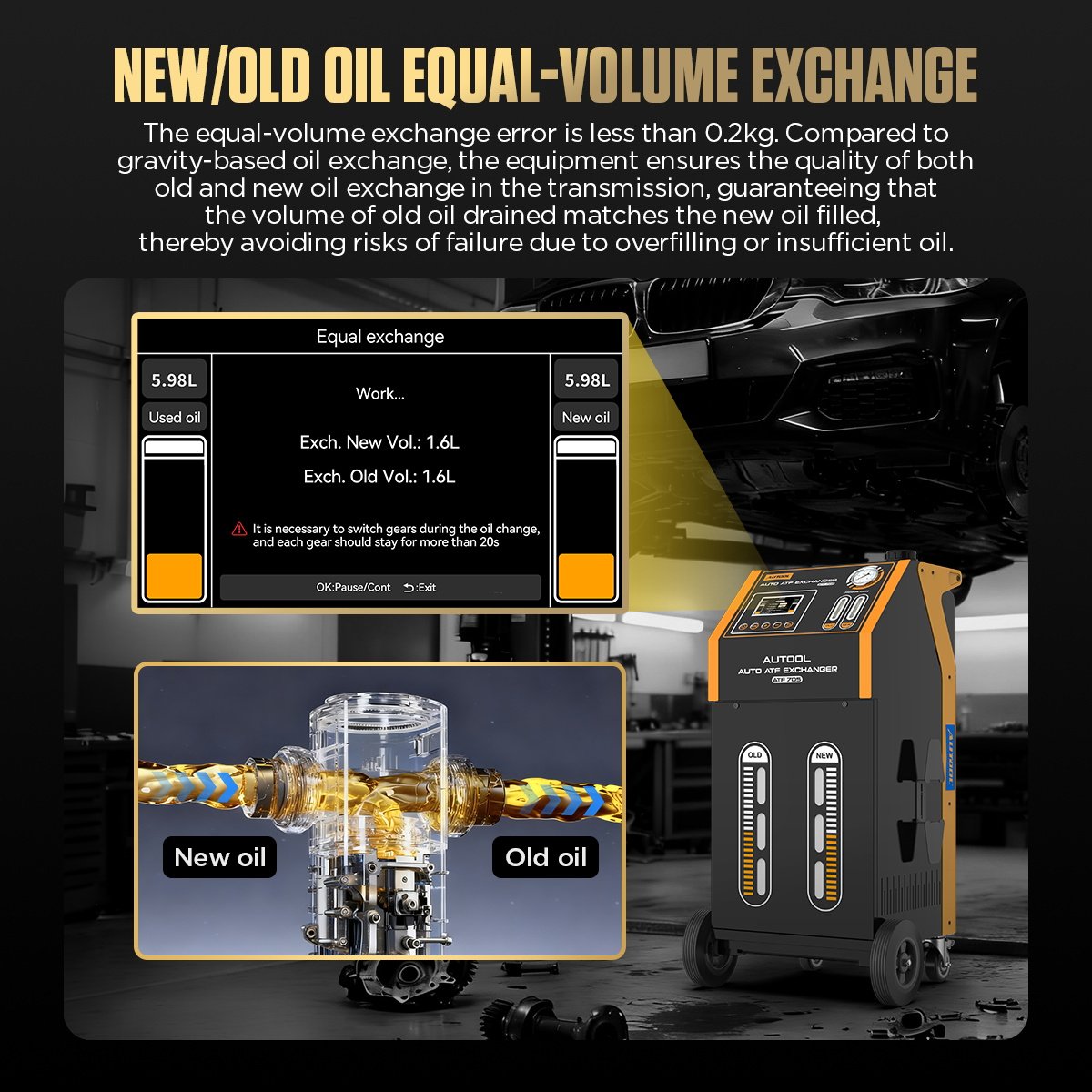

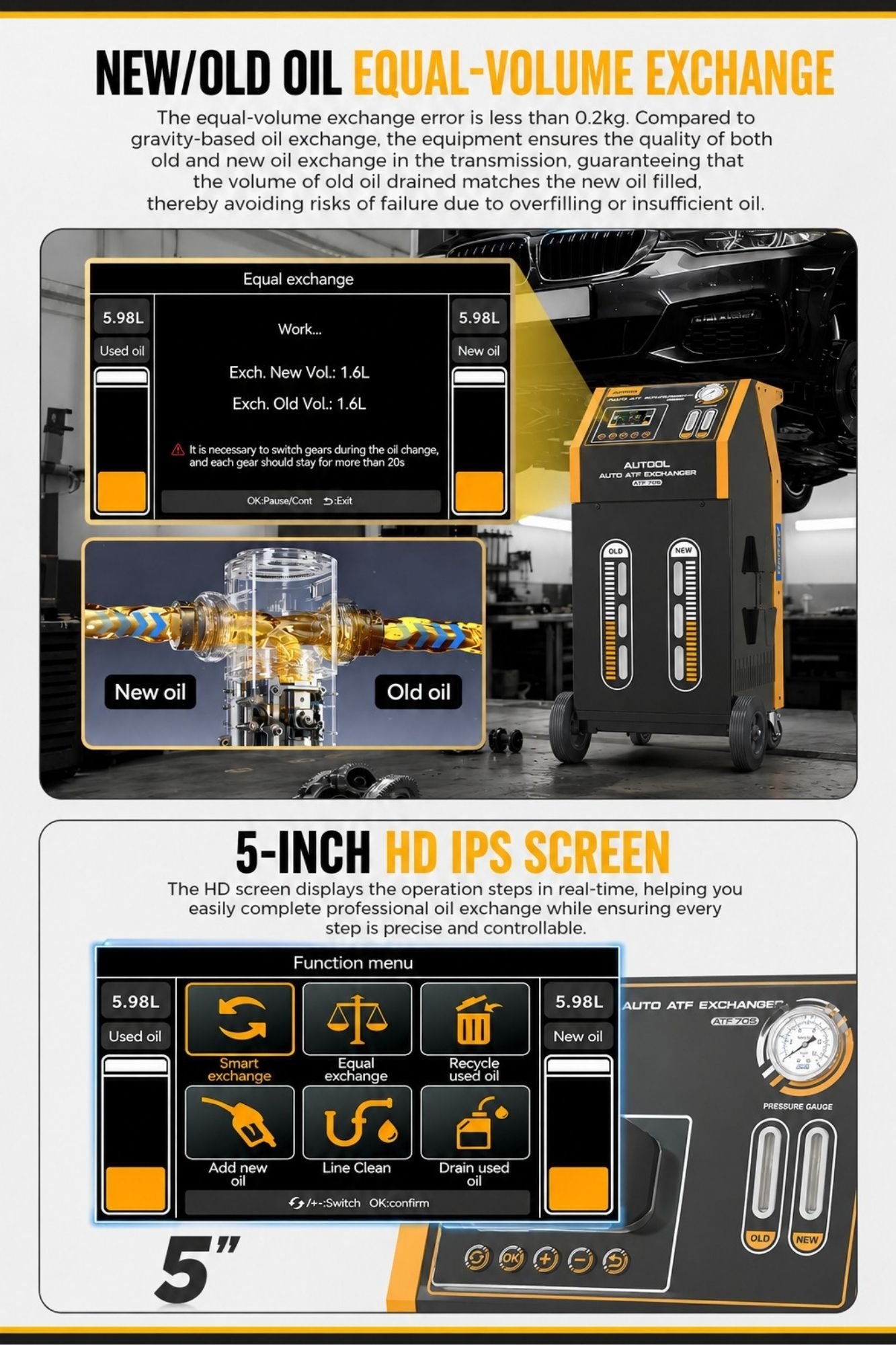

Extend Transmission Life: The ATF705 ensures precise, equal-volume oil replacement, improving oil consumption and extending transmission life.
3-year Warranty: For damage caused by non-human factors, we promise to resend parts for free within 3 years.

05 Automatic Transmission Fluid Exchanger Operations Instruction:Preparation before operation

Connecting Power: Connect the clamps to the two terminals of the car battery (DC12V; the device can automatically recognize the polarity)
Lifting the Car: Raise the car so that the drive wheels are suspended at least 20cm off the ground. Engage the handbrake, and place wheel chocks securely in front and behind the non-drive wheels to ensure the vehicle’s stability.

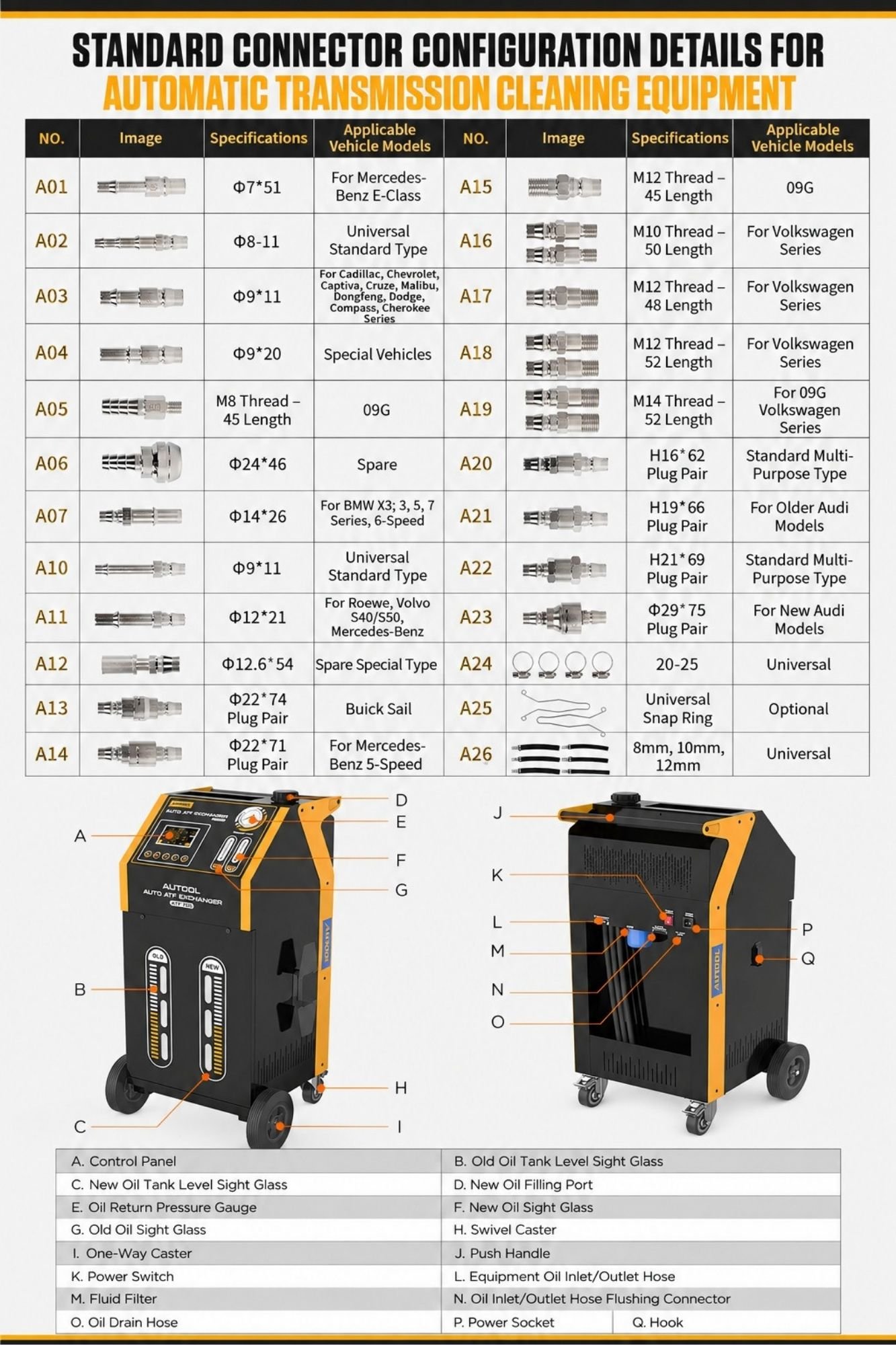

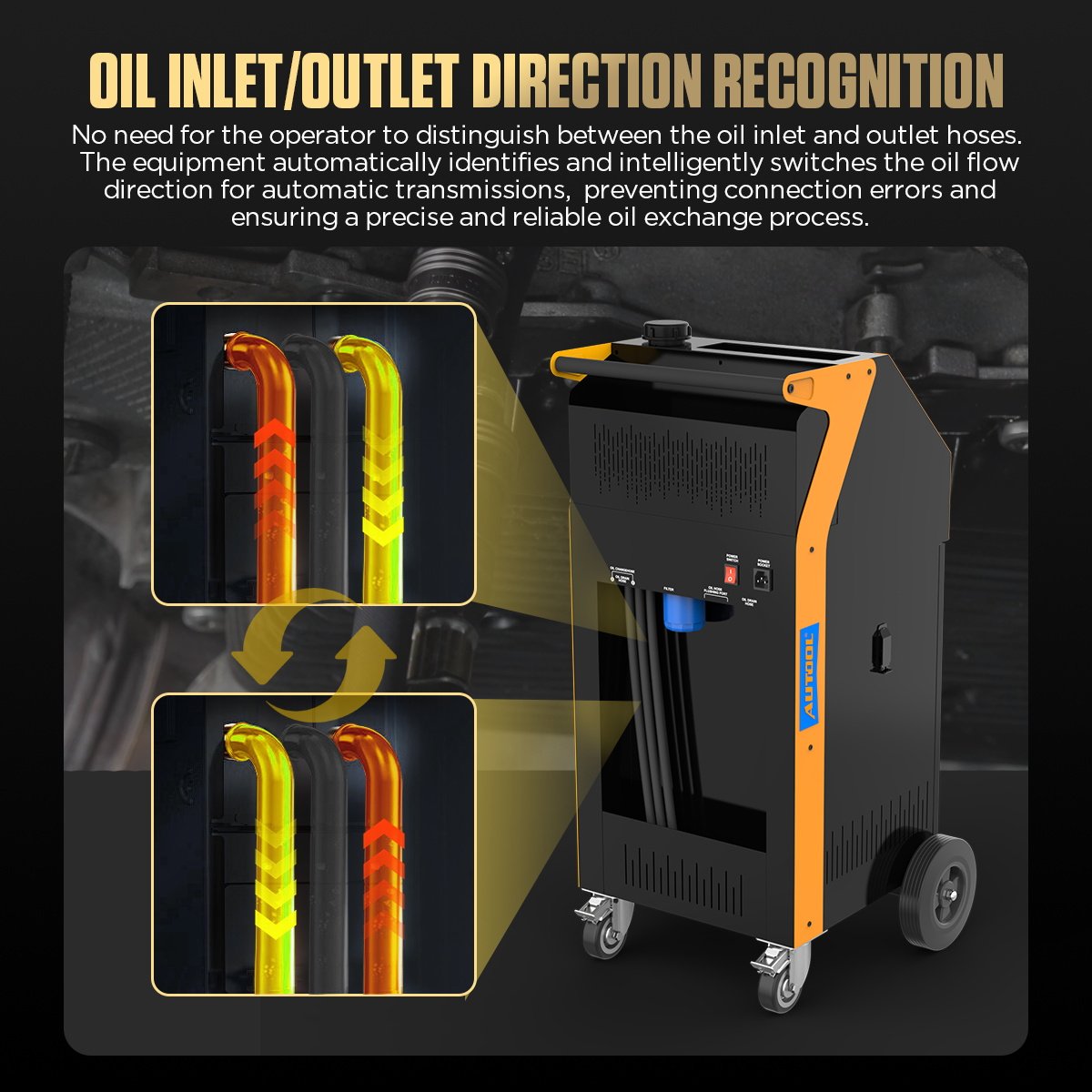

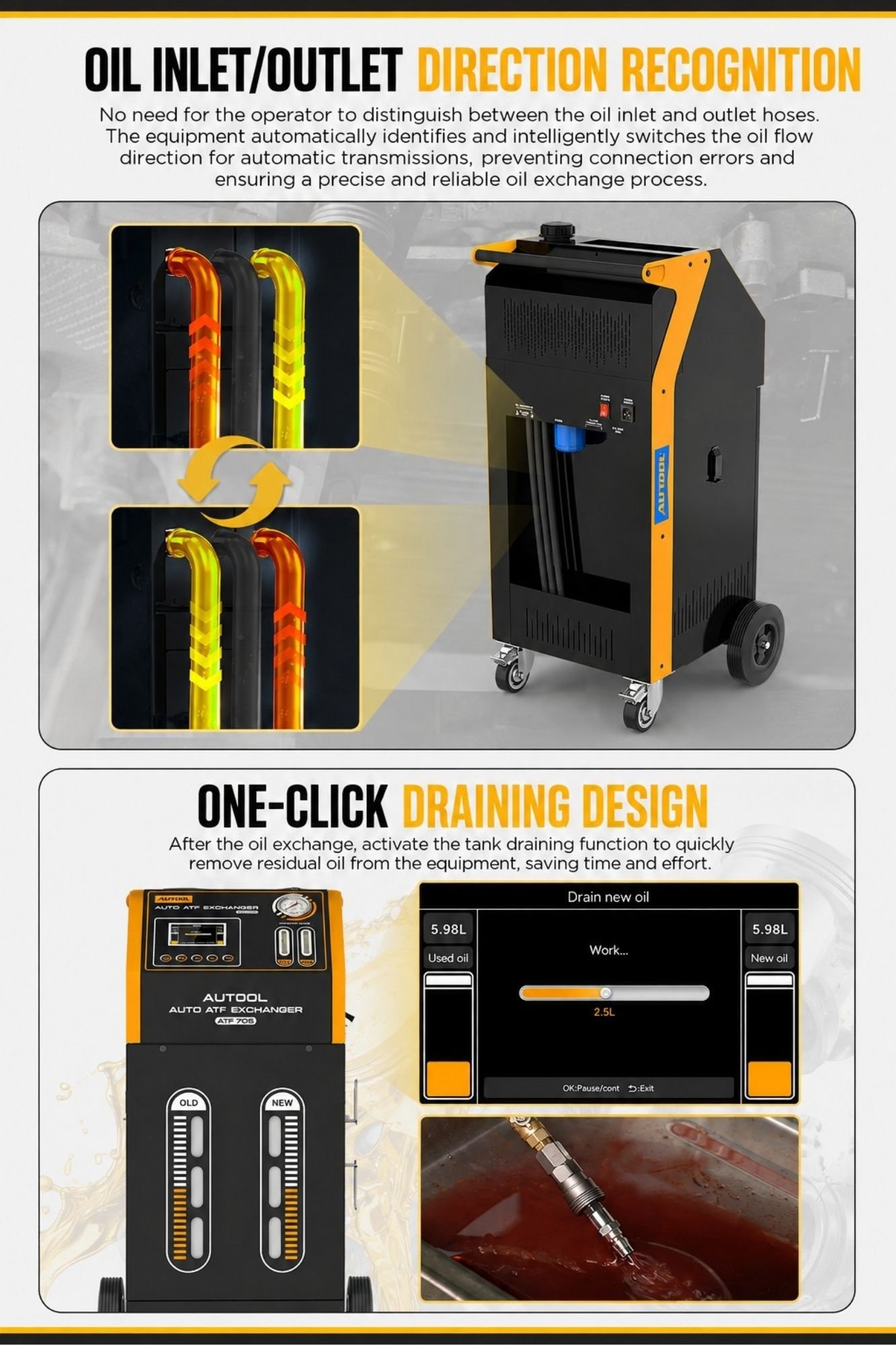

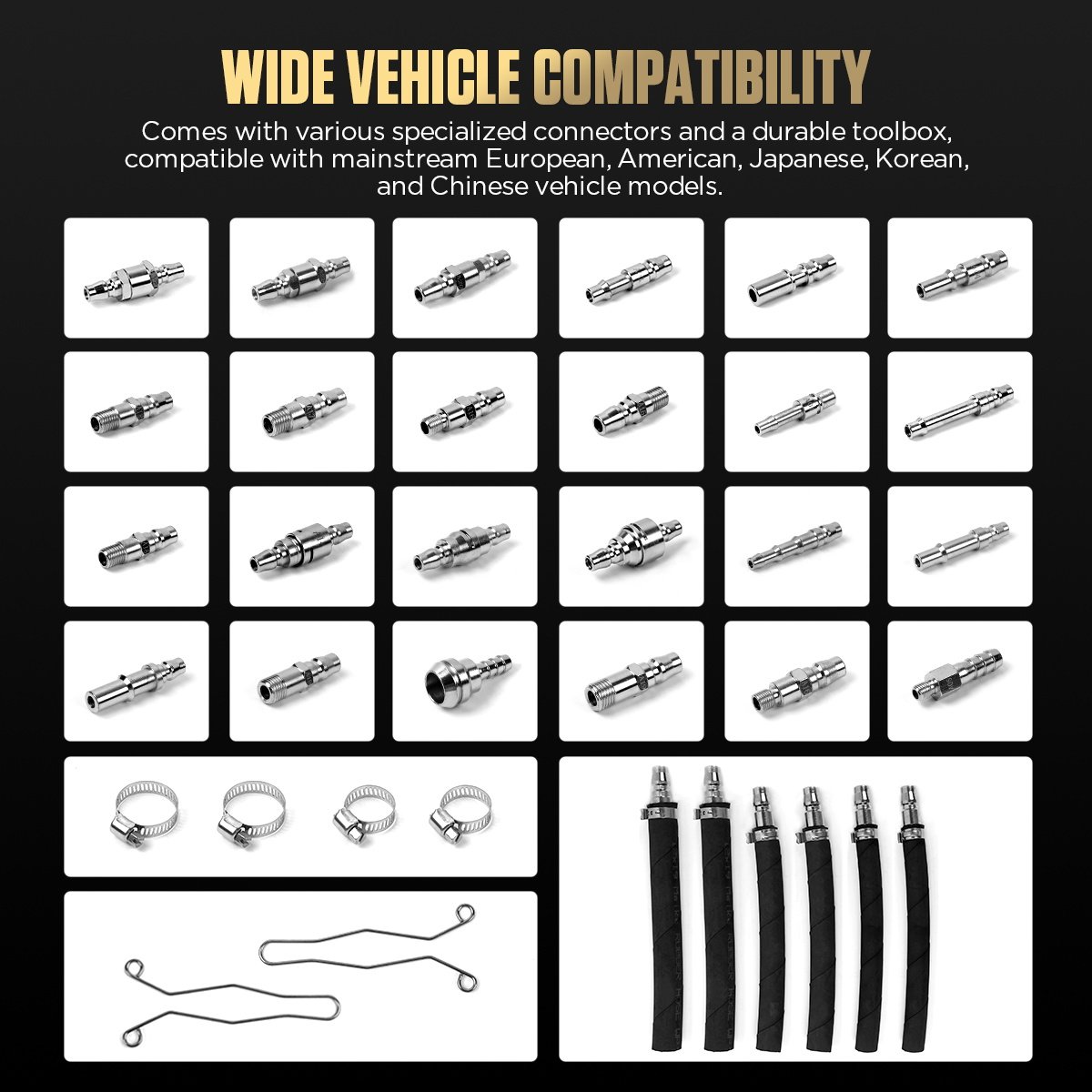

Connecting the Hoses: Find the connection oil pipe between the transmission and radiator, and disconnect the one that’s easy to take apart. Connect the appropriate connectors from the connector box to the ends of the disconnected oil pipe. Connect the device’s hoses to the connectors on the ends of the disconnected transmission oil pipes, without considering their direction of flow.
Check and Confirm: Start the engine, and ensure that the hoses are secure and leak-free, then turn on the device’s power switch
