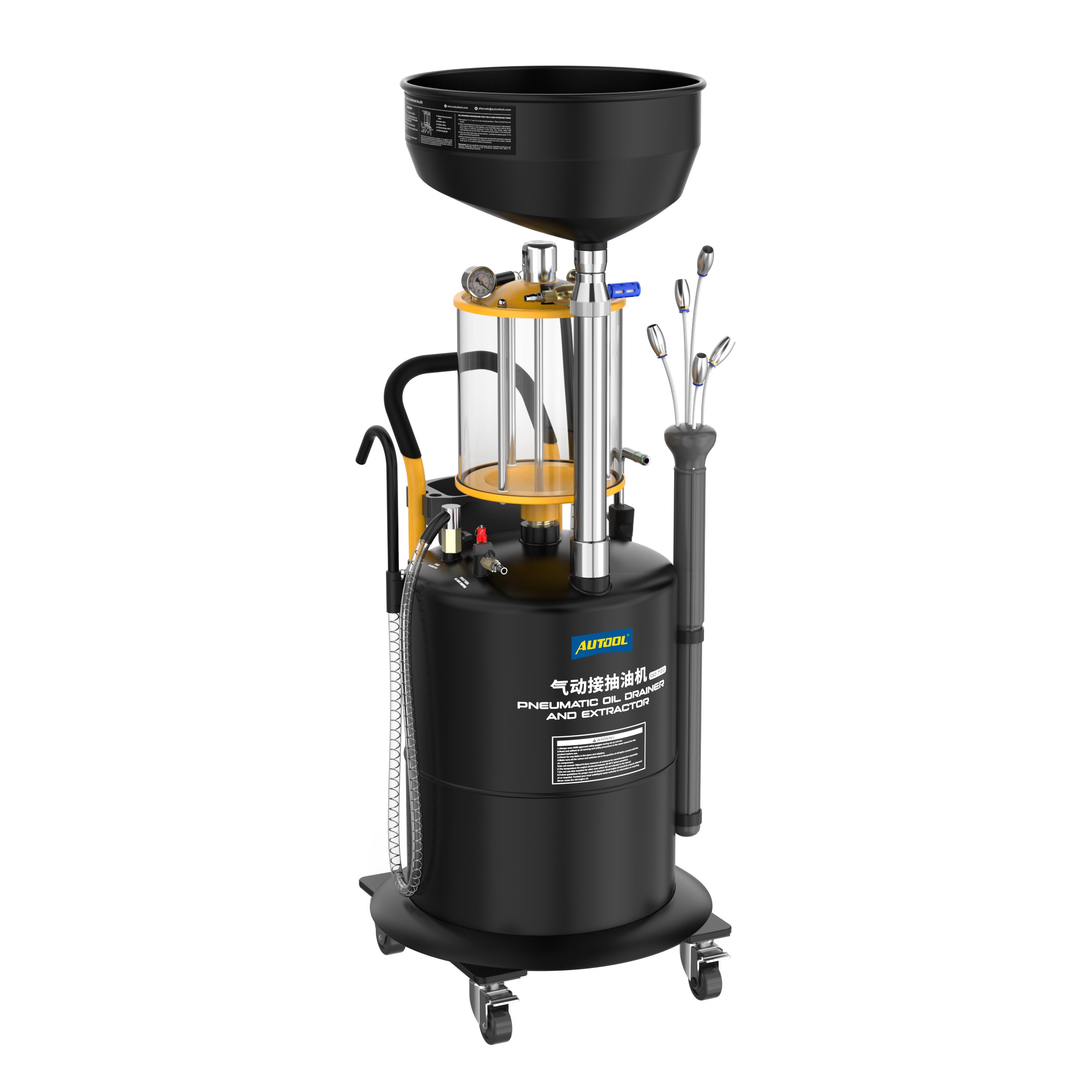

AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine

Name: AUTOOL OD720 Pneumatic Oil Picker &amp; Oil Pumping Machine
SKU: 1729
Availability: InStock

₹41,300.00

Categories: Car Testing & Repair Tools, Pneumatic Oil Drainer & Extractor

AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine uses compressed air to operate a vacuum-generating device designed with patented technology to evacuate transparent measuring cups or oil storage barrels. Therefore, a certain degree of vacuum will generate inside it. Under external air pressure, oil is drawn into a transparent measuring cup or storage barrel via the suction needle.

It has fast vacuum acquisition speed and strong negative pressure capability. It is a multi-purpose model and can use under no lifting equipment or in trench working conditions.

It features a durable, transparent measuring cup known for its strength, clarity, heat resistance, weather durability, and corrosion resistance. The cup includes a scale for easy assessment of oil quality and quantity.

All functions are powered by compressed air, ensuring safety, environmental protection, and low consumption when using this equipment.

Various specifications of oil suction needles and pipe diameters can meet the maintenance needs of different types of vehicles.

???You may want to know.

No smoking or open flames during operation. Keep away from high-temperature, high-pressure, flammable, and explosive areas.
Shut off the air supply and inspect for leaks in hoses or components immediately.
Waste oil temperature is between 40~60?C, be cautious of burns.
During operation, protect your eyes and hands (wearing gloves and safety goggles is recommended).
The engine must remain turned off throughout the operation.
Strictly prohibited for use with brake oil, gasoline, diesel, and other liquids containing methanol, ketones, or flammable liquids.
After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation.
Do not use the equipment for functions not listed in this manual.
After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to protect the measuring cup better and extend its service life.
After emptying the waste oil from the measuring cup, there is no need to close the measuring cup?s drain valve.

AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine Features

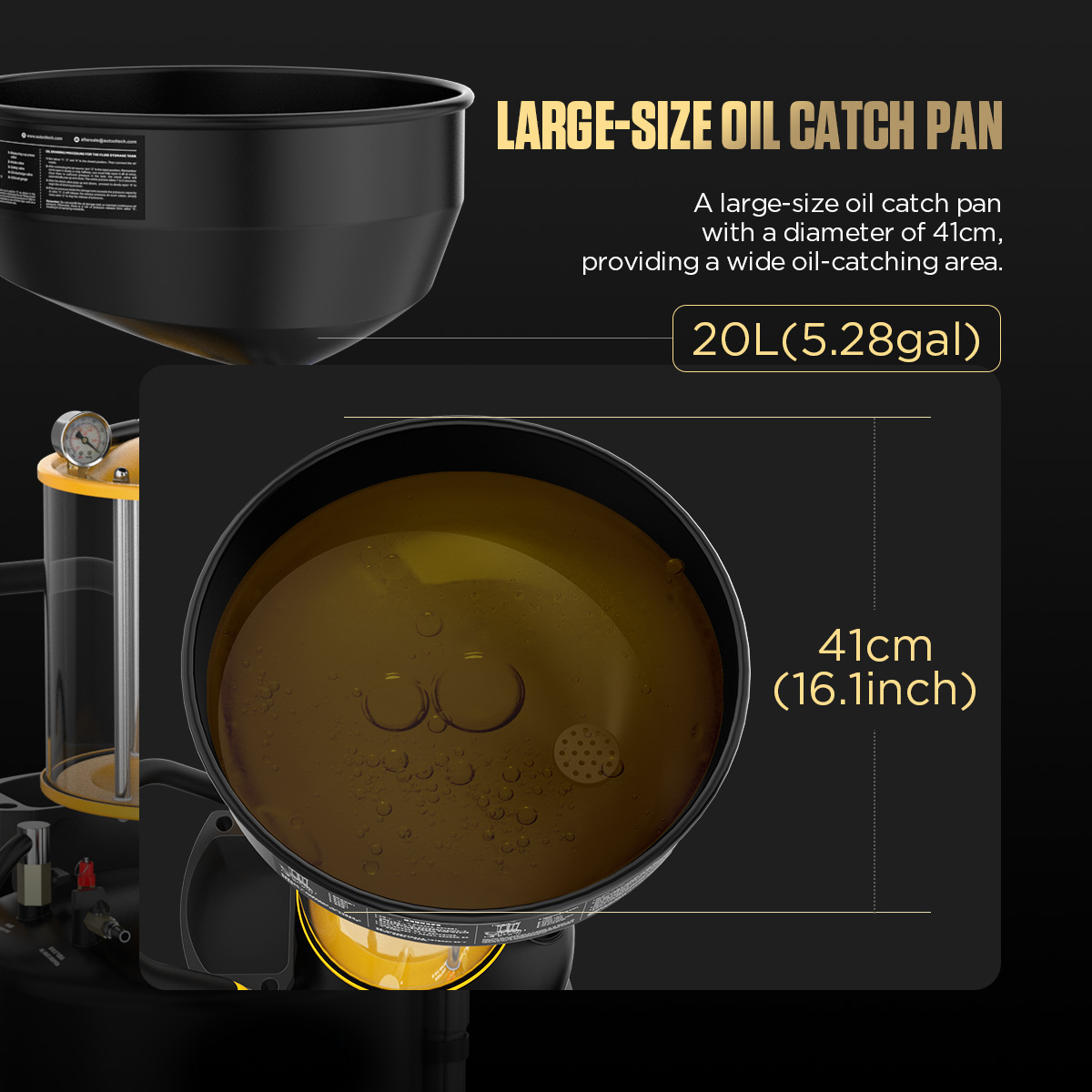

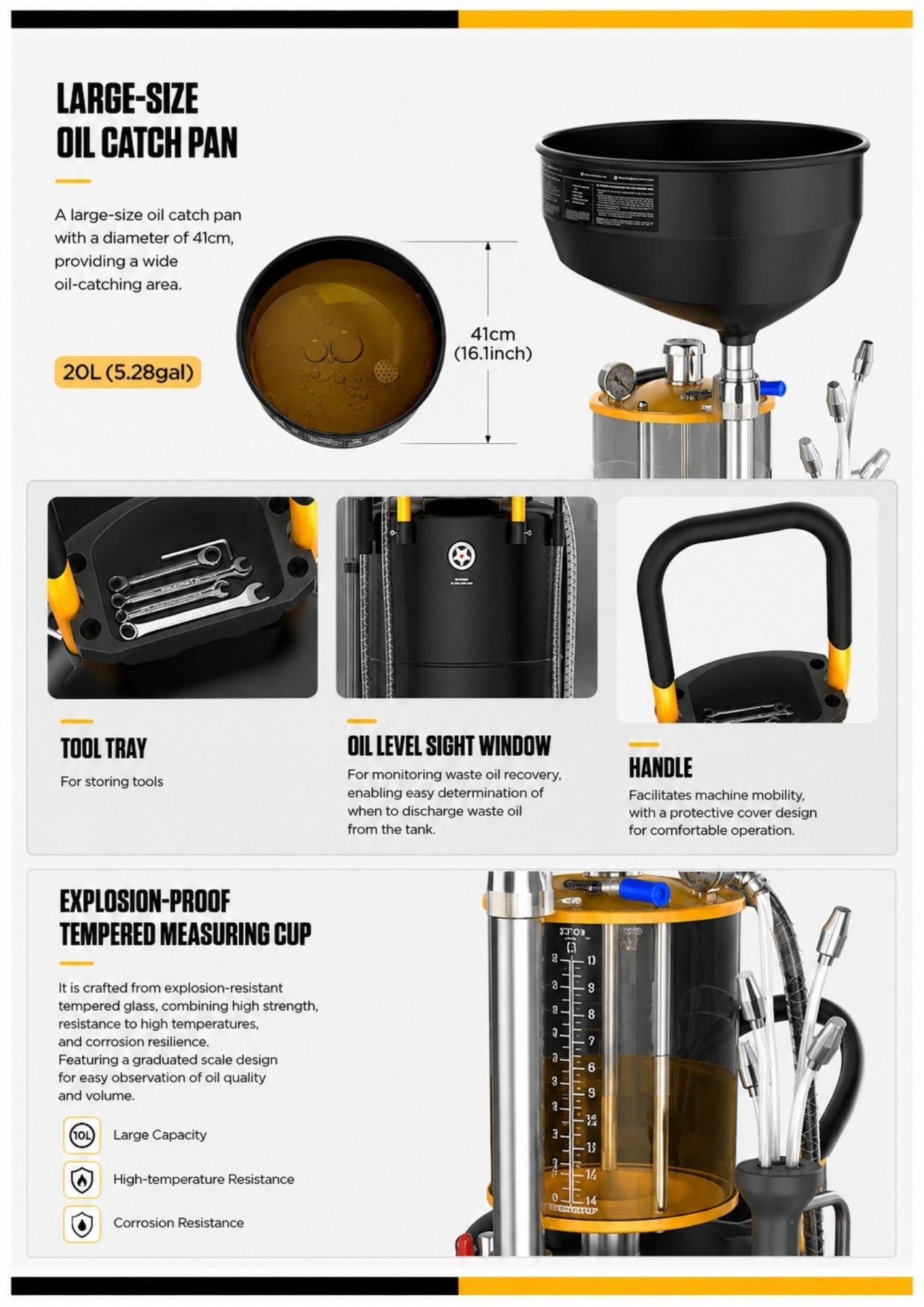

Large-size Oil Pan:? AUTOOL OD720 Pneumatic Oil Picker & Pump features a 41cm diameter oil pan, maximizing waste oil discharge efficiency. At the same time, the oil receiving pan has a large capacity of 20L, which can hold more waste oil.

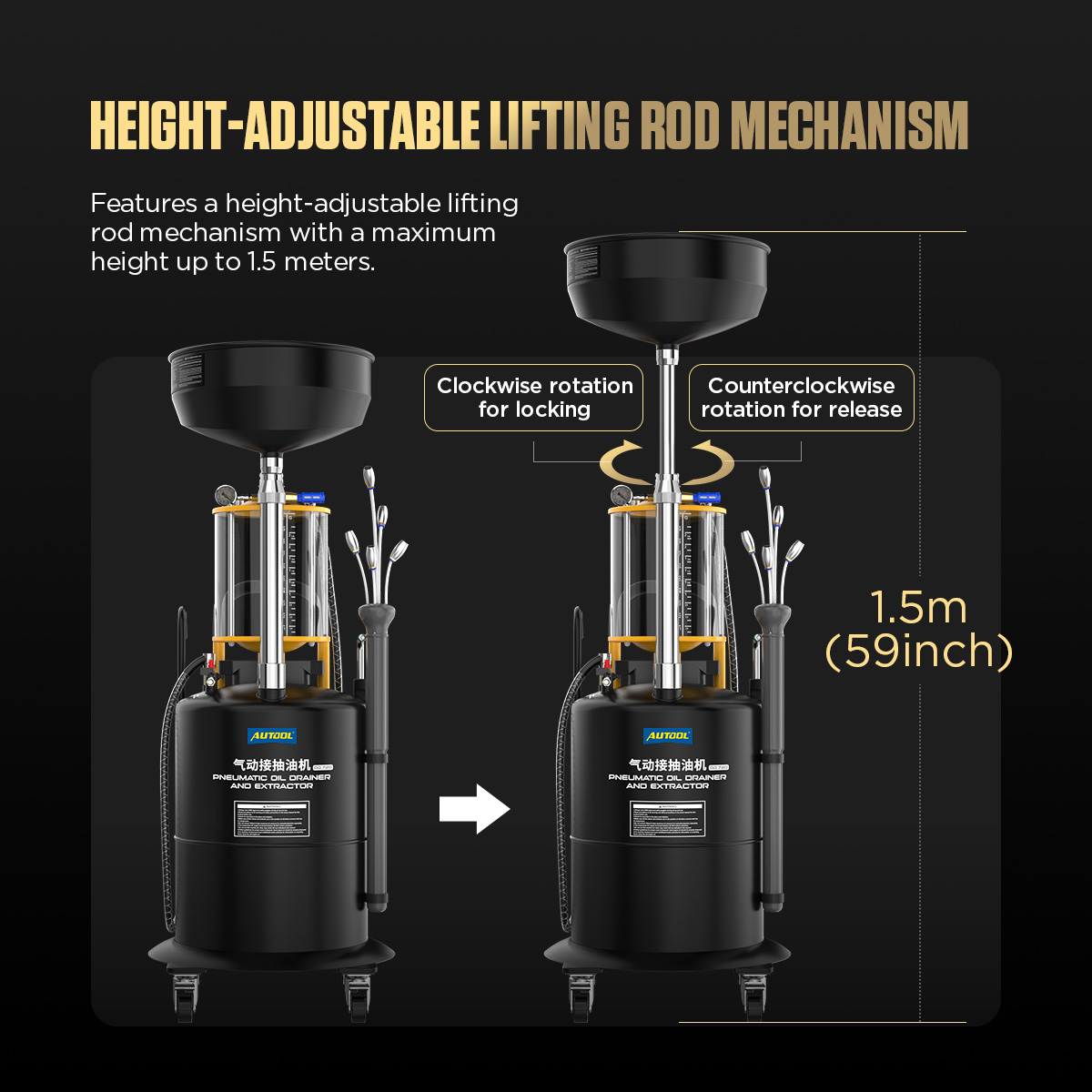

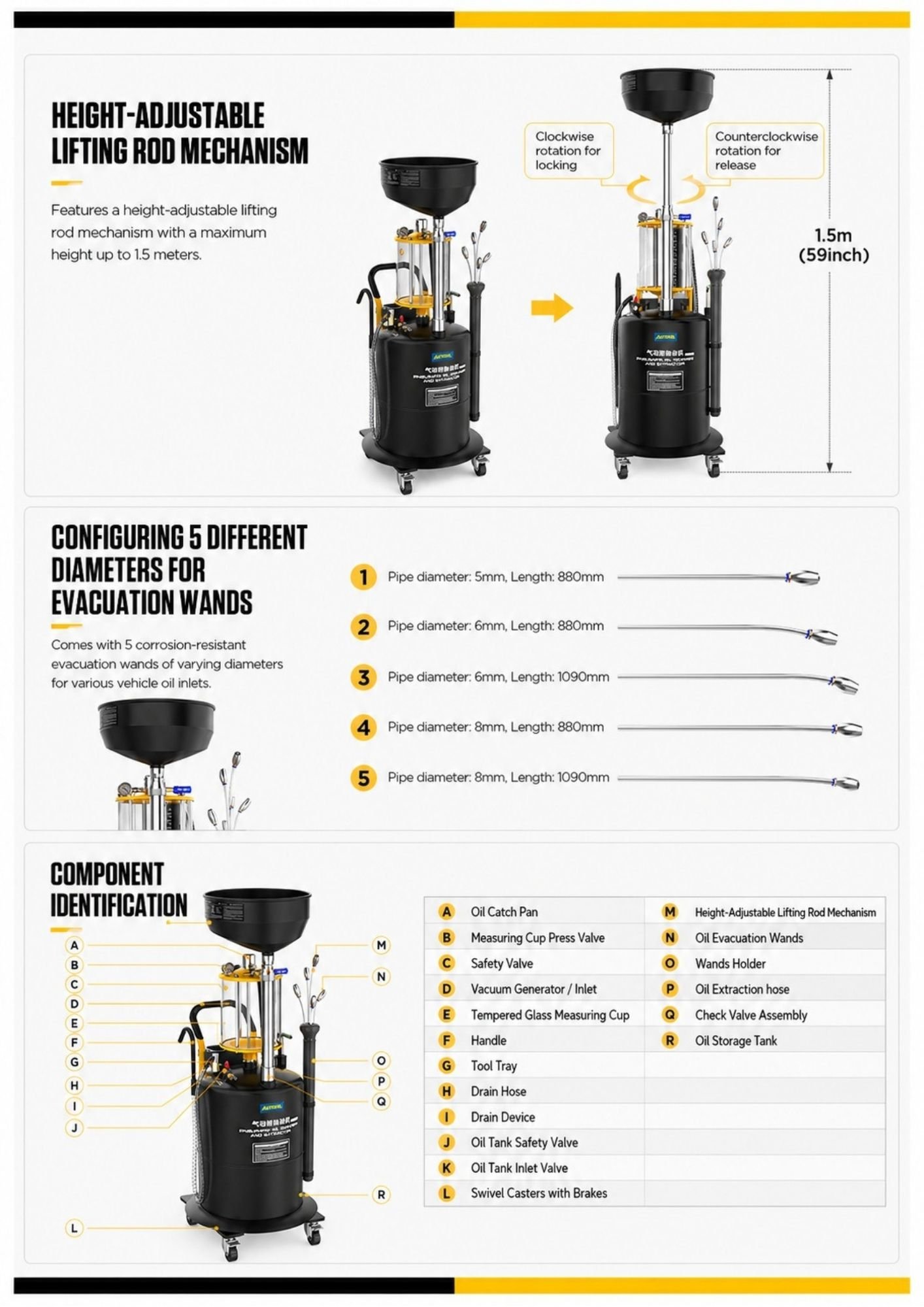

Adjustable Height:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine has a height-adjustable lifting rod structure. The maximum adjustable height is 1.5 meters. The appropriate height can adjuste as needed.

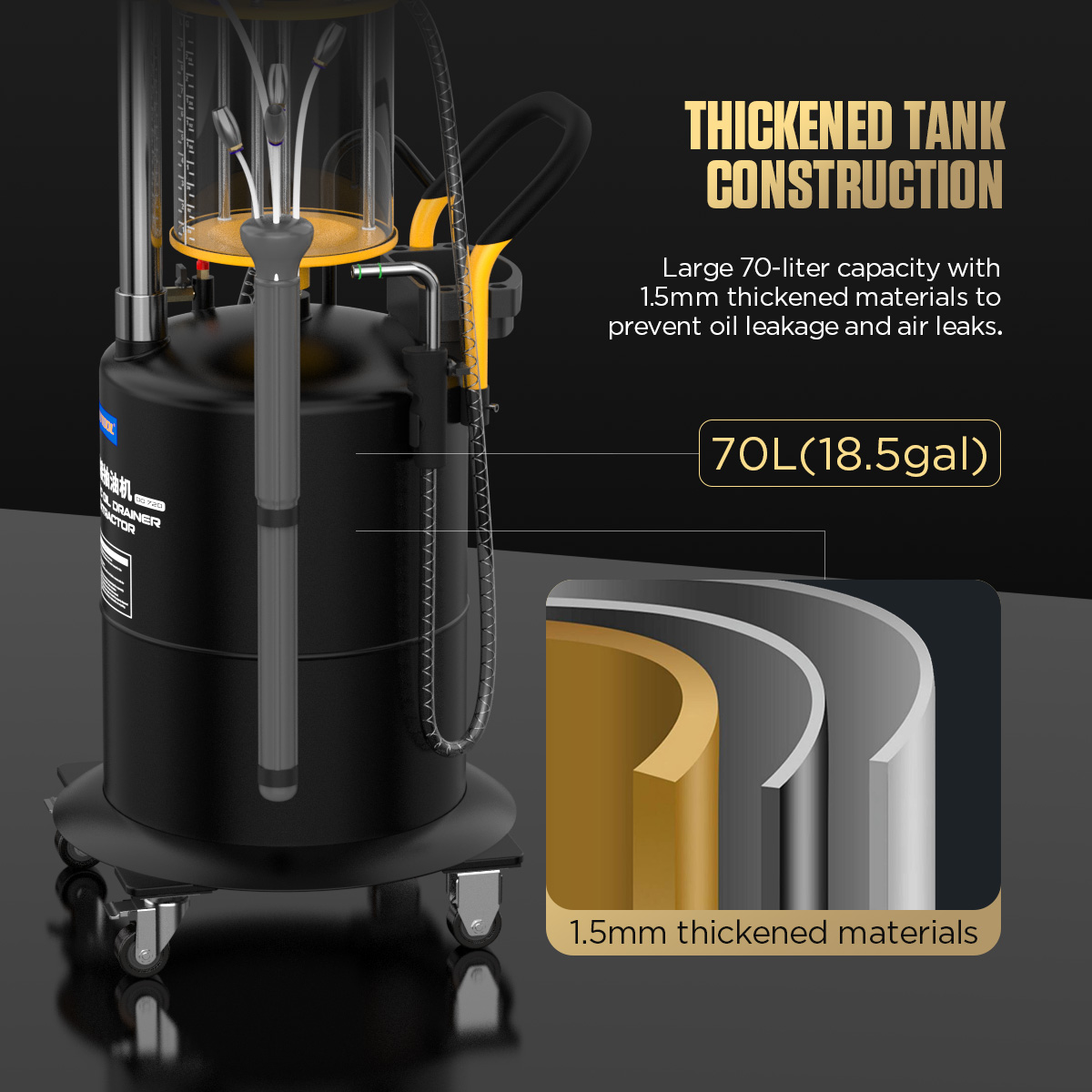

Thickened Tank Construction & 70L Large Capacity:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine?has a large capacity of 70 liters and is made of 1.5 mm thick material to effectively prevent oil and air leaks.

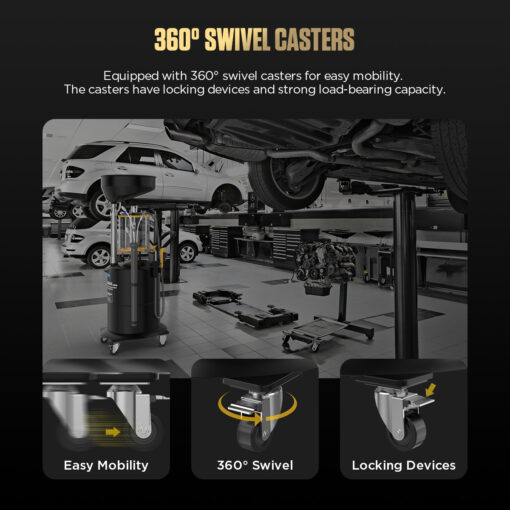

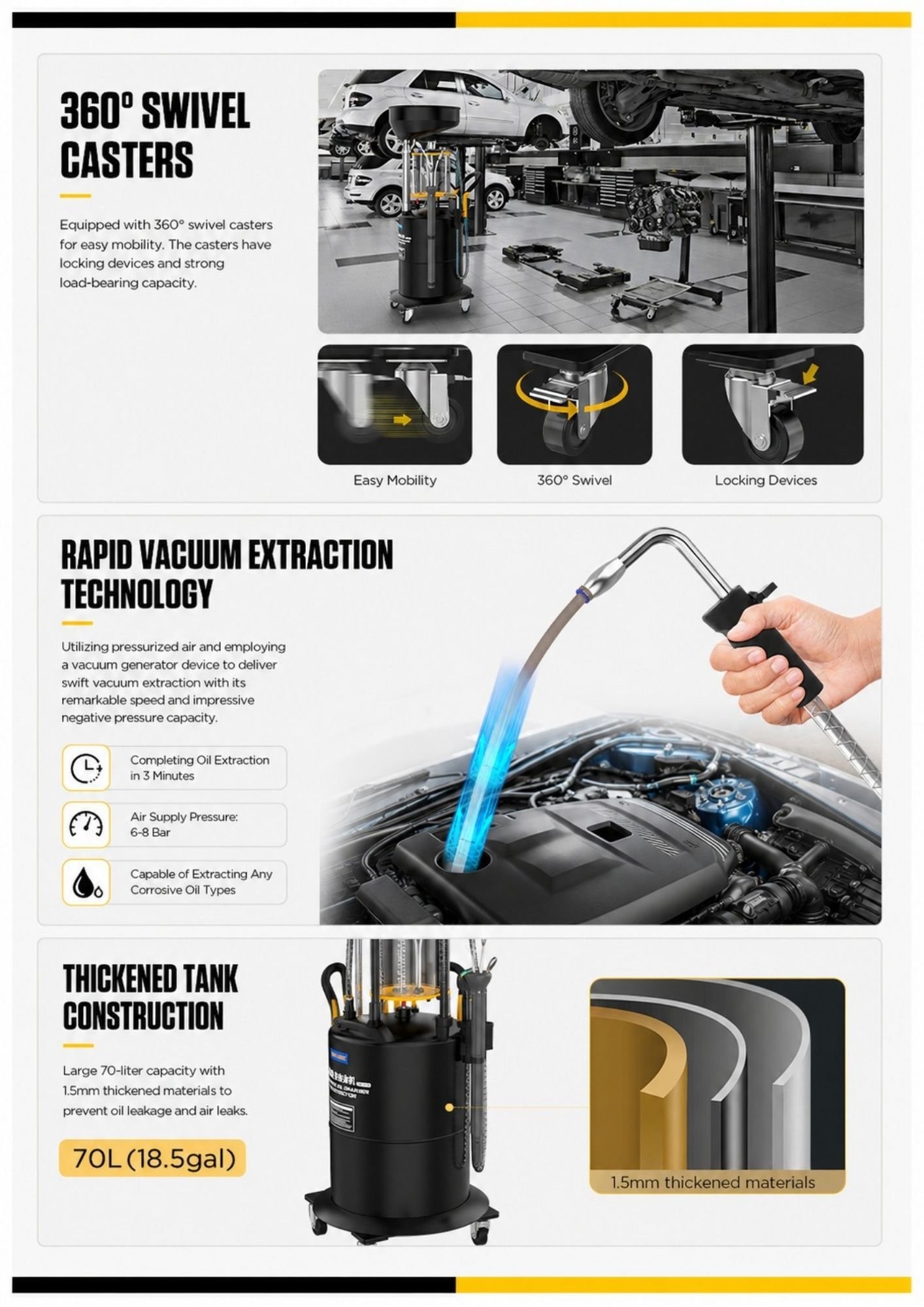

360? Swivel Casters:?It is equipped with casters that can rotate 360?, making it easy to move, and the casters have a locking device to make it more load-bearing.

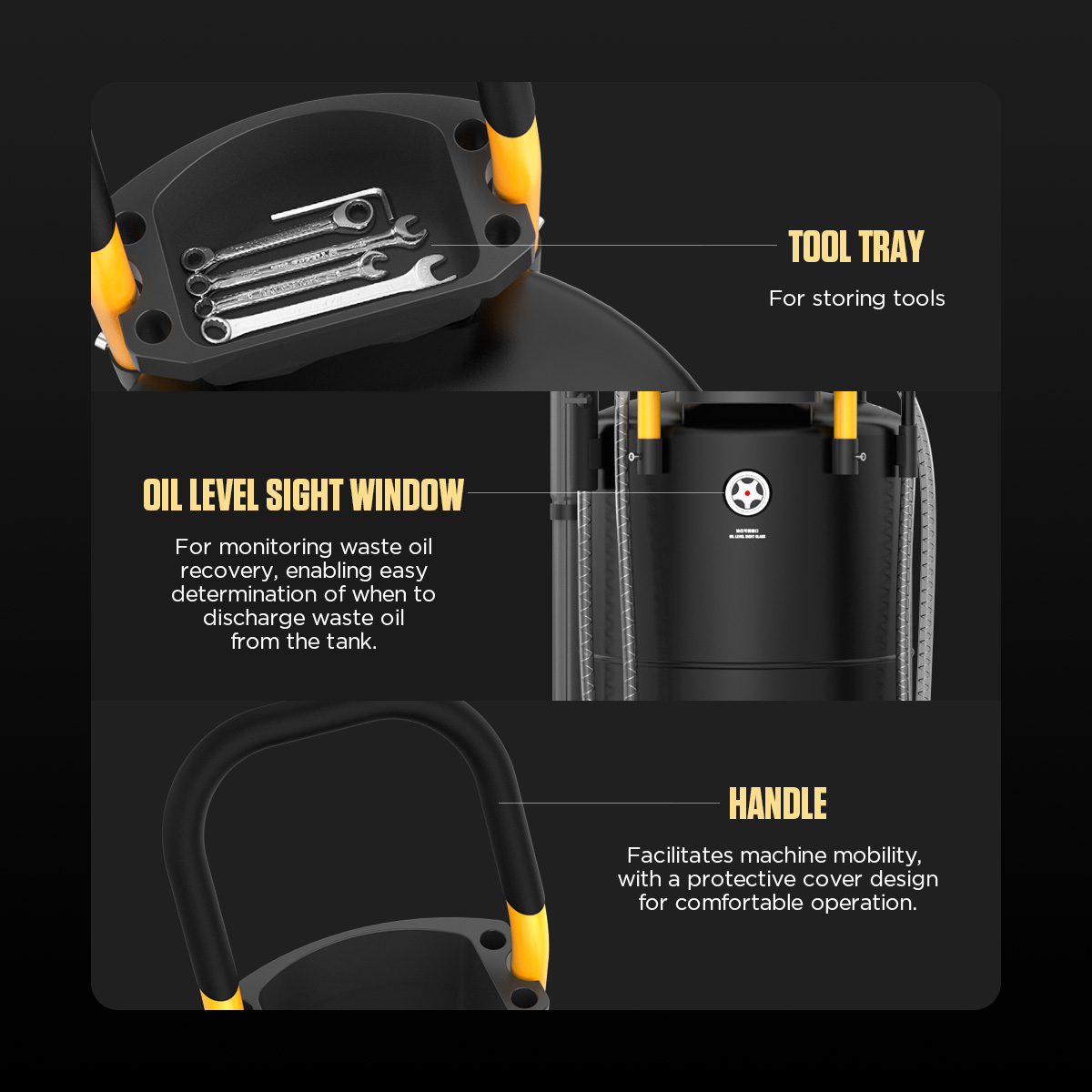

Oil Level Sight Window:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine also equips with an oil level sight window for monitoring waste oil recovery, making it easy to determine when to drain waste oil from the tank.

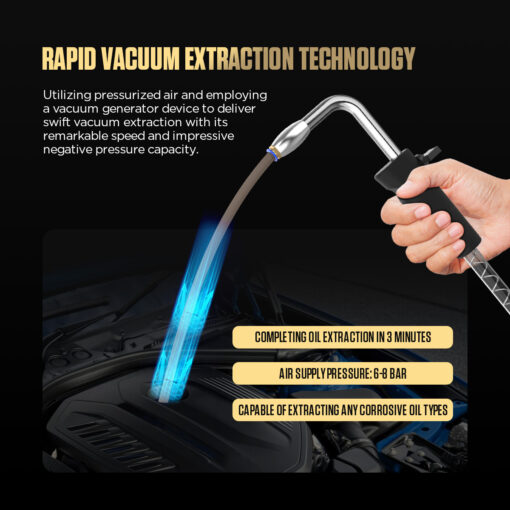

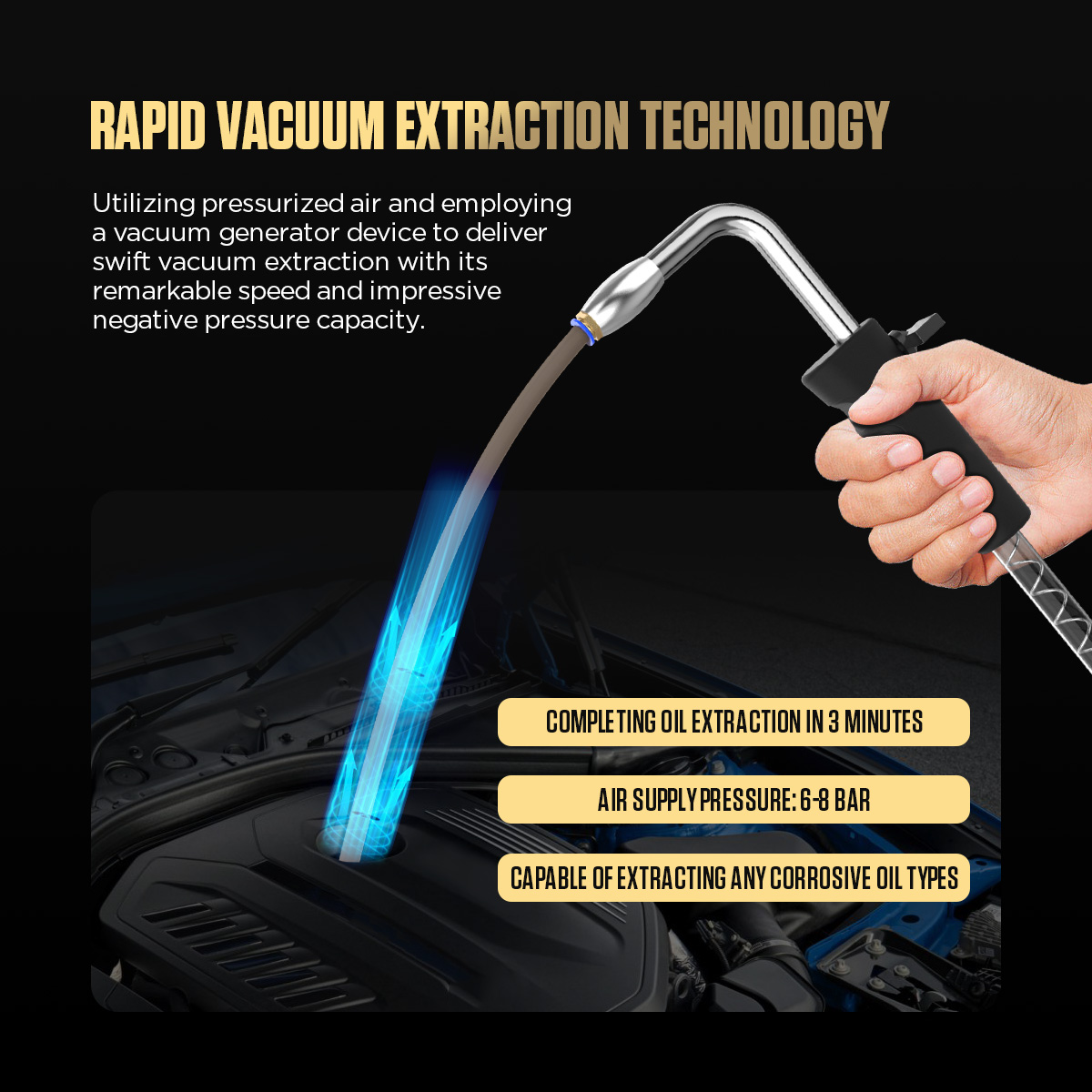

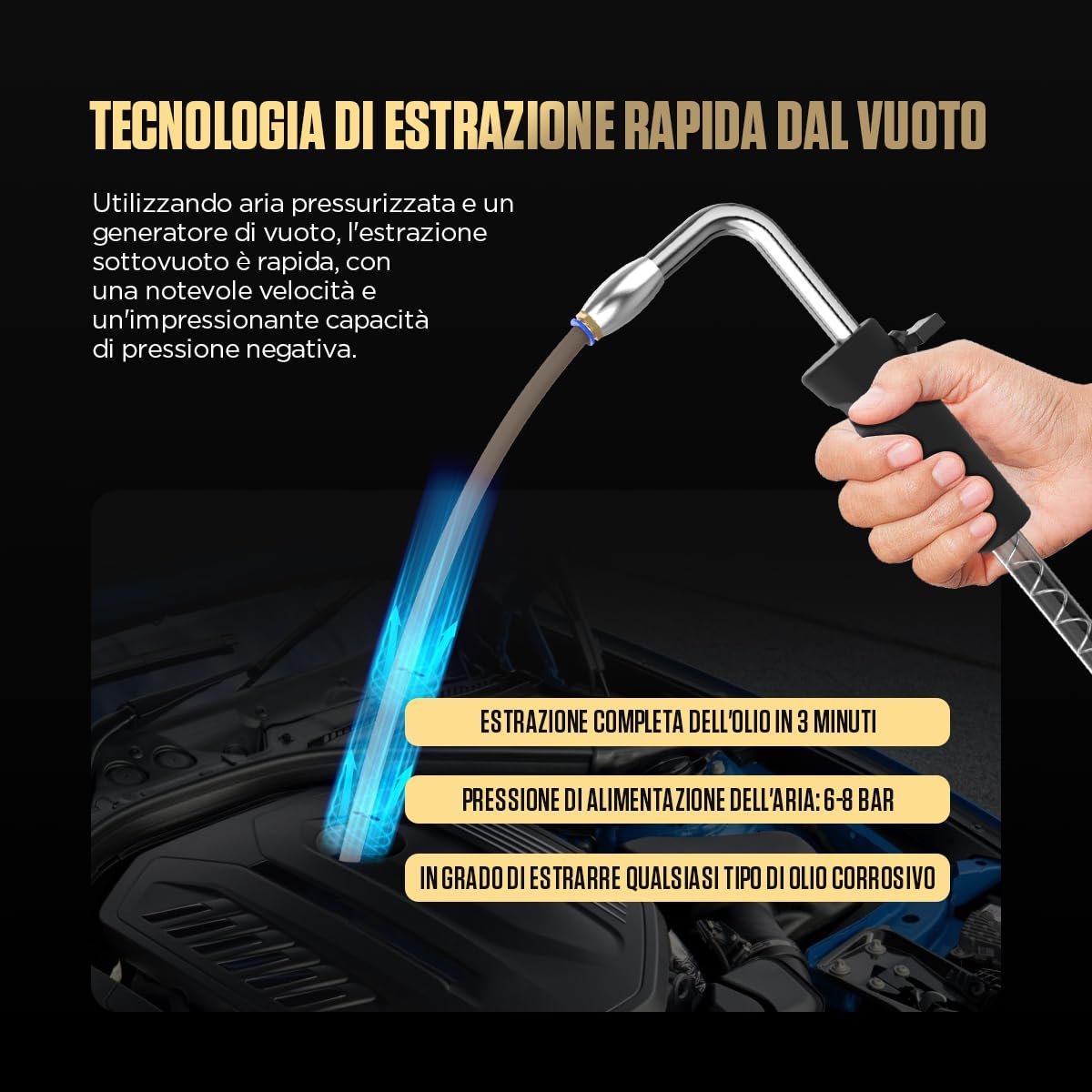

Rapid Vacuum Extraction Technology:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine uses compressed air and adopts a vacuum-generating device to quickly evacuate, with fast speed and strong negative pressure capability.

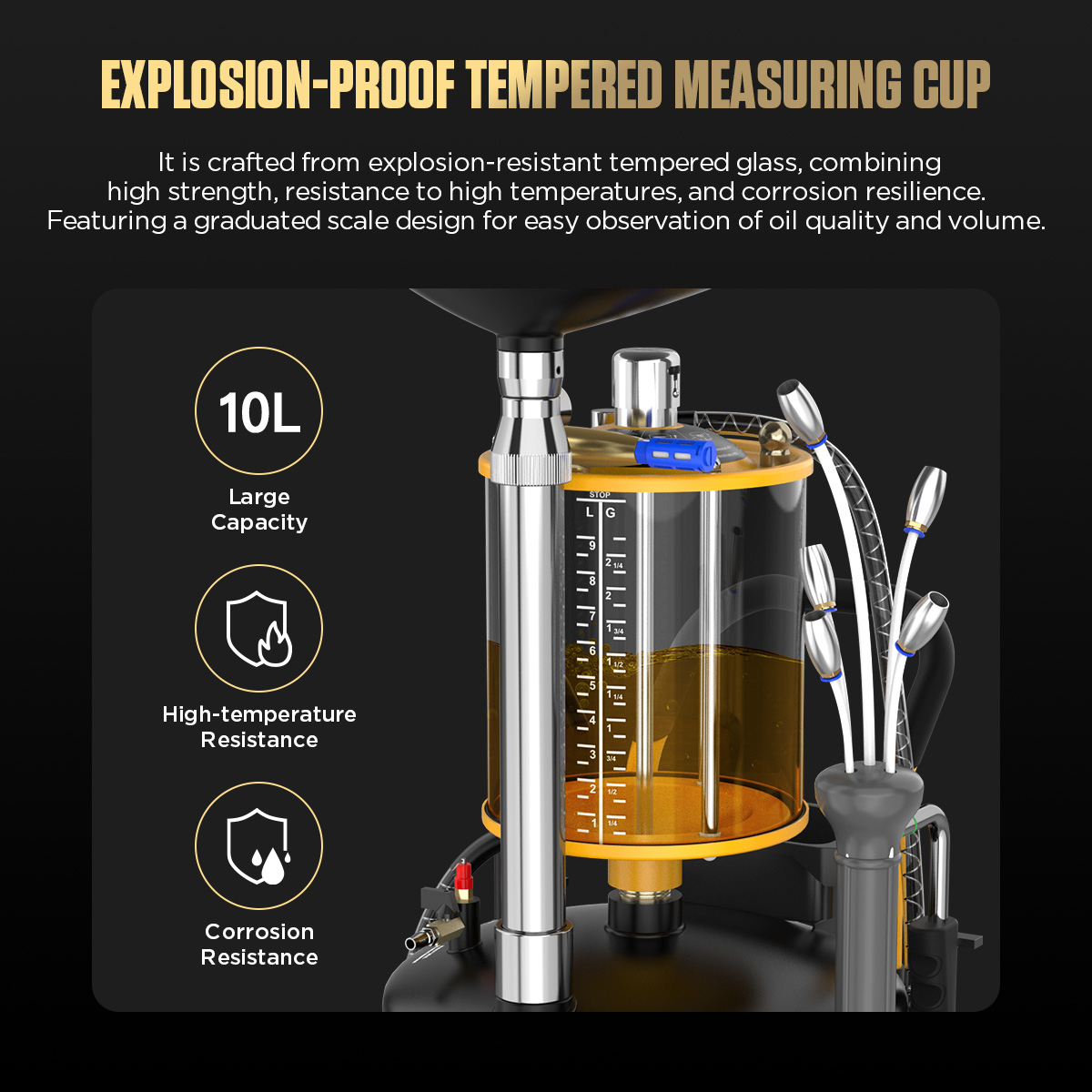

Explosion-proof Tempered Measuring Cup:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine is made of explosion-proof tempered glass, integrating high strength, high-temperature resistance, and corrosion resistance. Scale design makes it easy to observe oil quality and quantity.

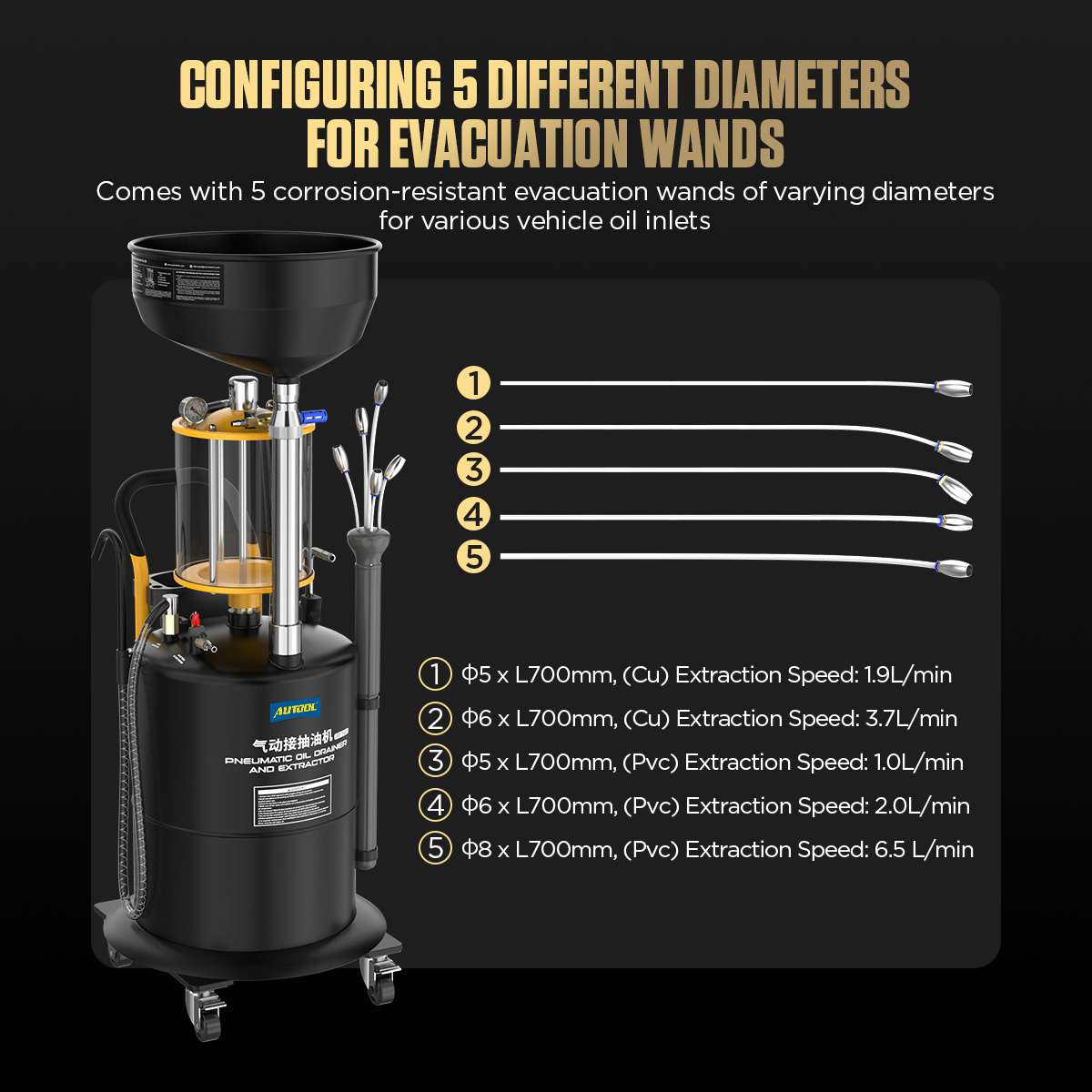

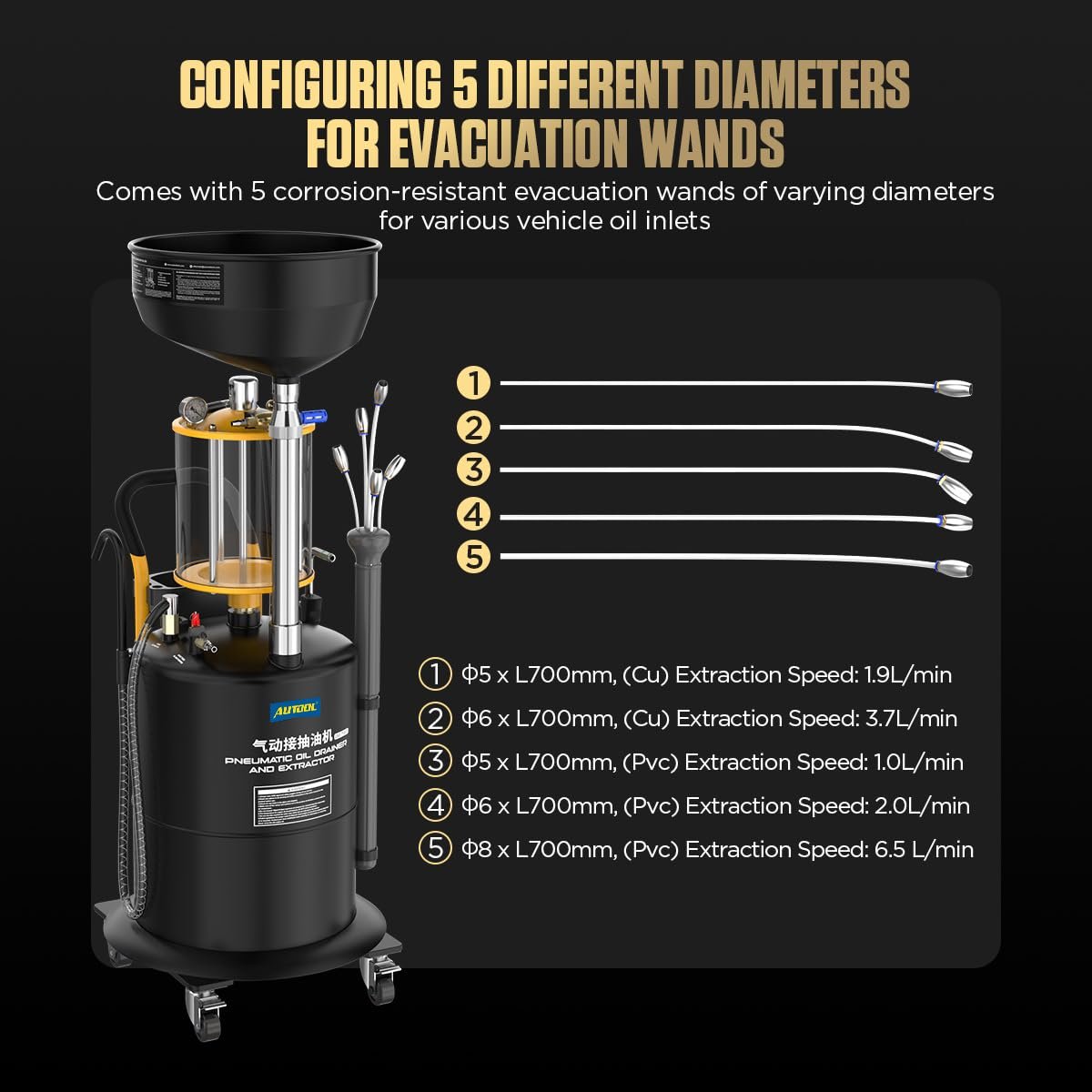

Configure evacuation rods with 5 different diameters:?AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine is equipped with 5 corrosion-resistant oil drain rods of different diameters, which are suitable for various vehicle oil inlets.
Three-Year Warranty, Lifetime Maintenance:??For damage caused by non-human factors, AUTOOL promises to resend parts for free within 3 years. For any needs, you are warmly welcome to contact us and we will get back to you ASAP within 24 hours.

Online Support?

How To Use AUTOOL OD720 Pneumatic Oil Picker & Oil Pumping Machine

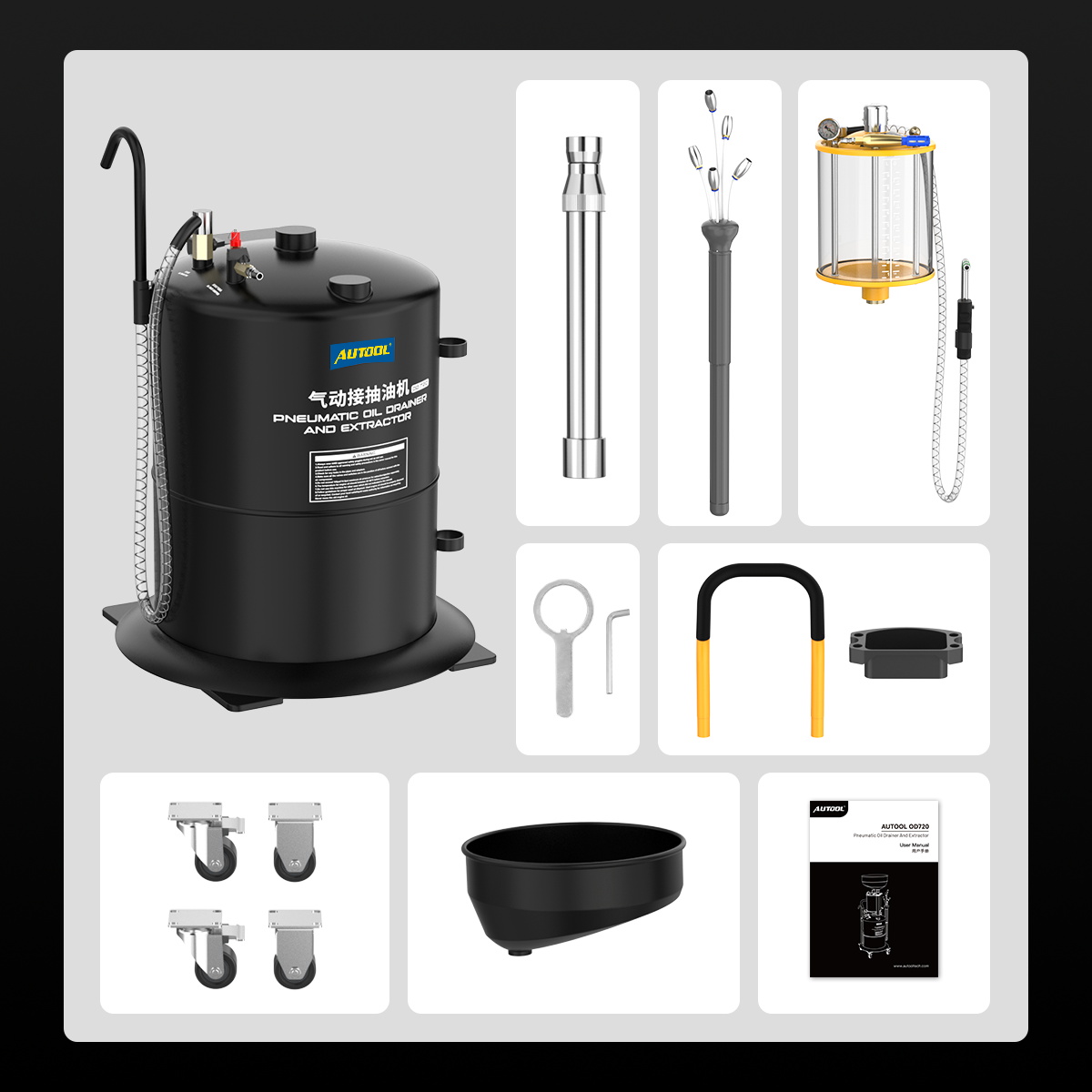

Installation

Install the measuring cup assembly onto the positioning seat of the oil storage barrel in a ?clockwise? direction of rotation.
Fix the lifting rod and oil pan in a ?clockwise? direction of rotation.
Fix the measuring cup while ensuring that the direction of the measuring cup assembly is correct.
After installation, please make sure that the lifting rod is in a perpendicular position to the equipment.
Turn the lifting rod adjustment device counterclockwise to adjust the up and down height of the lifting rod oil pan, and turn it clockwise to tighten.

Measuring Cup Oil Extraction

Press the measuring cup and adjust the valve to the middle slot position (valve closed).
Close the oil suction hose valve and connect the oil suction needle to the corresponding model.
Connect the air source to the air inlet of the vacuum generator and open the air source valve.
The negative pressure gauge needle moves to the rated negative pressure of 50~65cmHg.
Insert the oil suction needle into the engine compartment and open the oil suction hose valve to extract waste oil.

Measuring?cup oil?draining

Drain the waste oil in the measuring cup into the oil storage barrel below.
When the oil level in the measuring cup reaches the warning line, please drain the waste oil in the measuring cup.
Press and rotate the measuring cup valve to the top left or right slot position (valve open). Waste oil inside the measuring cup will automatically flow into the oil storage tank.
To extend the service life of the measuring cup assembly, do not close the oil drain valve of the measuring cup when emptying oil from a non-oil storage barrel.
When the waste oil temperature exceeds 60?C, equipment parts may damage!

Waste oil?recovery

Use lifting equipment to lift the car to the appropriate height.
In a safe workplace, move the equipment under the vehicle engine and align the oil pan with the engine oil drain hole.
Unscrew the vehicle?s engine oil drain plug.
The waste oil discharge into the oil storage barrel through the oil receiving pan.

Waste oil?discharge of?oil storage?tank

Close the measuring cup and press the valve.
Close the oil drain pipe valve.
Close the oil drum air inlet valve.
Connect the air source to the oil drum air inlet valve.
Open the oil tank inlet valve and pressurize it. Once it reaches a certain pressure, the check valve will automatically close. When the pressure inside the oil tank exceeds 1.0 bar, the safety valve will automatically release the pressure.
After 5 seconds, slowly open the oil drain pipe valve to drain the oil.
After draining the oil, please cut off the air source.
