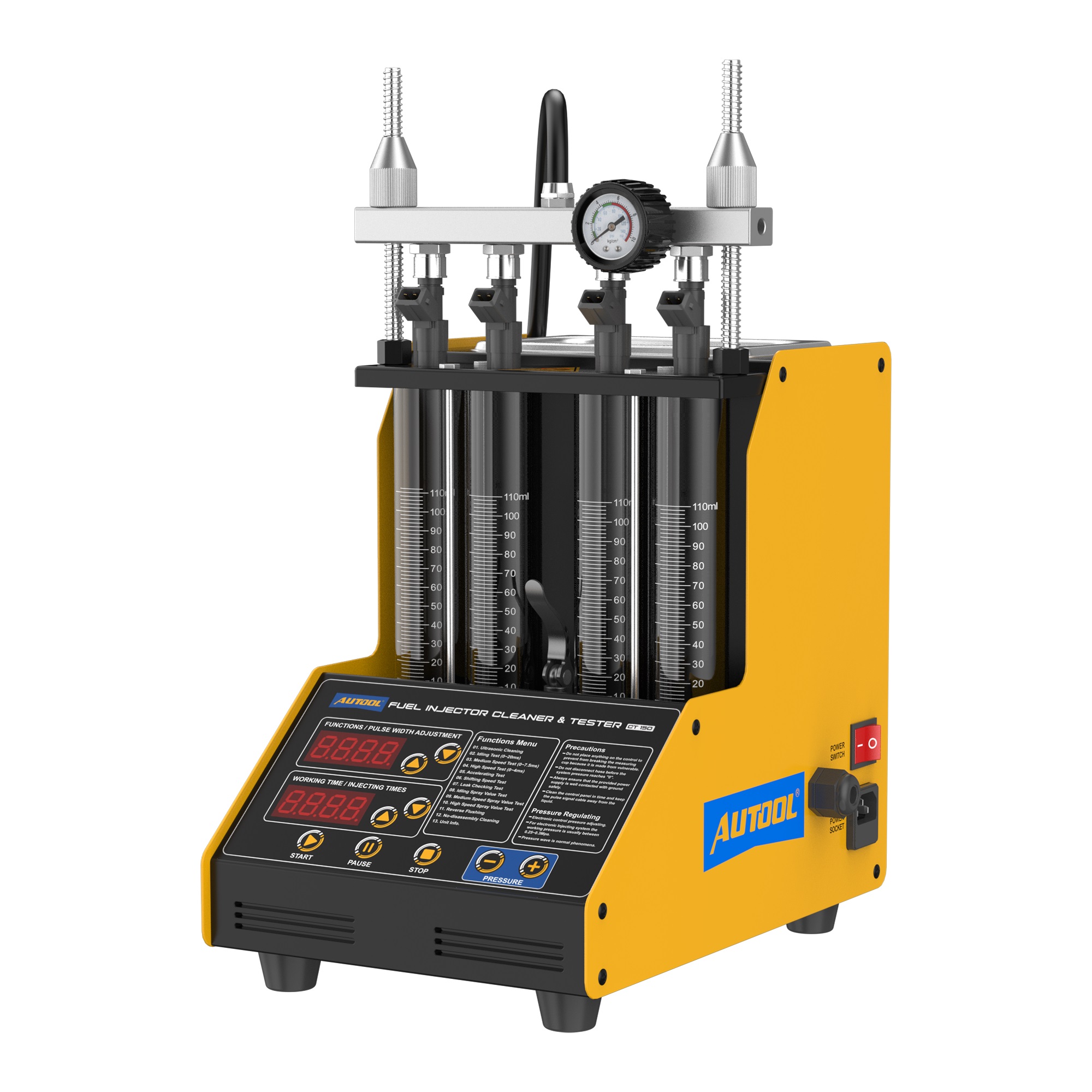

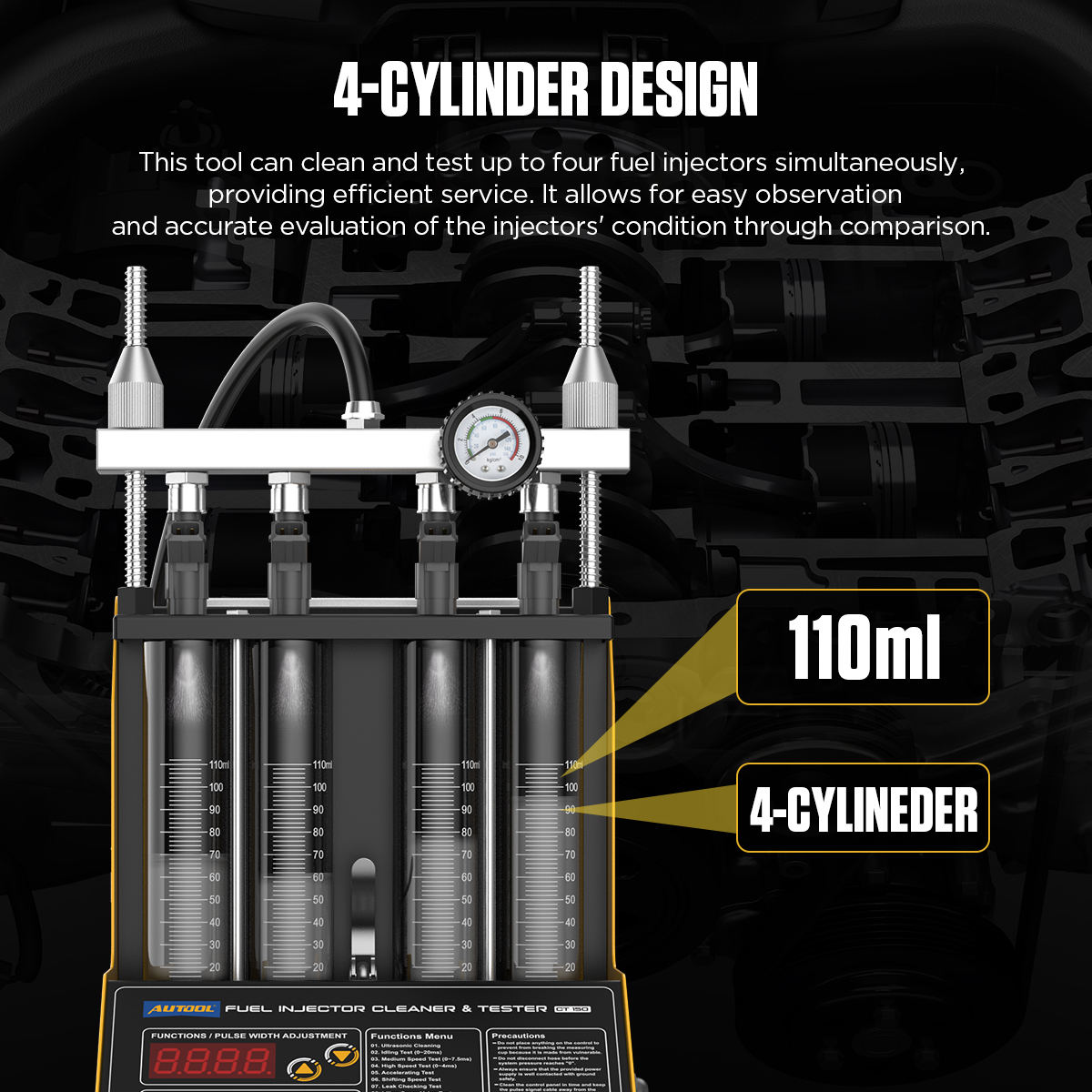

AUTOOL CT150 Fuel Injector Tester & Cleaner Machine is a professional 4-cylinder auto fuel injector testing cleaning machine. It will help us clean and test the injectors of gasoline cars and motorcycles.
Support for more cars and motorcycles.Can only be used to clean diesel fuel injectors. The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-230V. CT150 Car Fuel Injector Tester Cleaner has two versions: Russian and English.
Warm Tips:
-
-
Please use professional injector test fluid, do not use corrosive cleaning fluid, cleaning fluid will damage the equipment, if the equipment is damaged because you use the cleaning fluid when testing the injector, you need to bear the repair costs.
-
- How to choose cleaning fluid? In order to achieve the best cleaning effect, it is recommended to use a professional syringe ultrasonic cleaning fluid to clean the injector. Or you can use medical alcohol with an alcohol content of more than 75% instead of cleaning fluid, but the cleaning effect may not be good enough.
- How to choose test fluid? In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.
AUTOOL CT Series Products
- Effectively cleans fuel injectors.
- It helps restore power and fuel economy.
- Helps improve idle and throttle response.
- Helps eliminate stalling due to dirty fuel injectors.
- Helps differentiate fuel injector working status.
- Helps reduce the cost of injector replacement, especially for the expensive GDI injectors (CT400 and CT500).
AUTOOL CT150 Fuel Injector Tester & Cleaner Machine Features：
- Wide range of applications: CT150 Car Fuel Injector Tester Cleaner has good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injectors. And also can be used to ‘clean’ diesel fuel injectors.
- Easy to operate: When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of 3M cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube Industrial alcohol, the test can be completed after power on.
- Leading technology: At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
- Safety: Its working voltage range is 110-230V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
How To Use AUTOOL CT150 Fuel Injector Tester & Cleaner

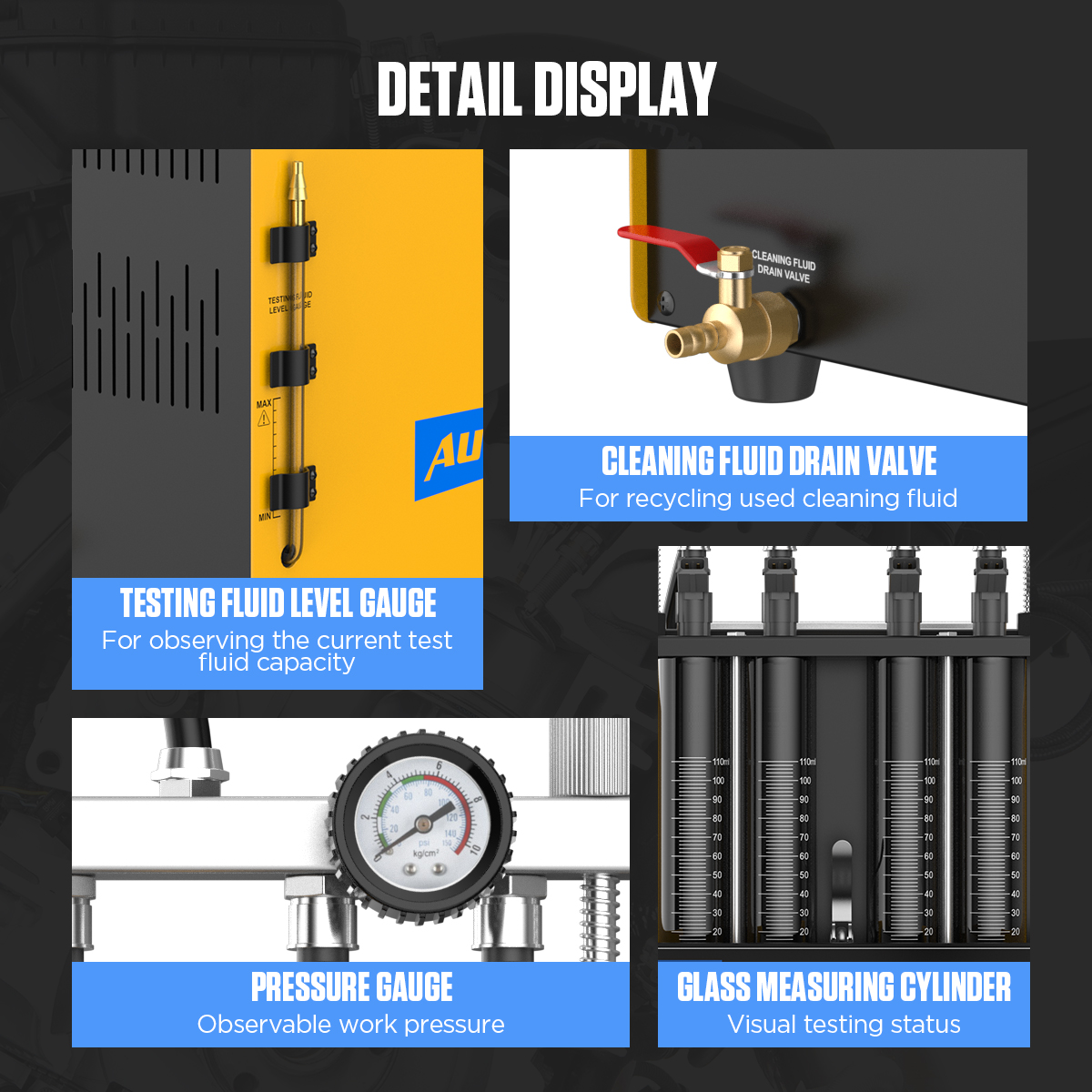

- Step 1: Clean the injector’s outside with cleaning liquid before opening the machine. Putting injectors in the ultrasonic bathtub after the outside of the injector is free of dirt. The cleaning fluid does not exceed the connection port of the pulse line.

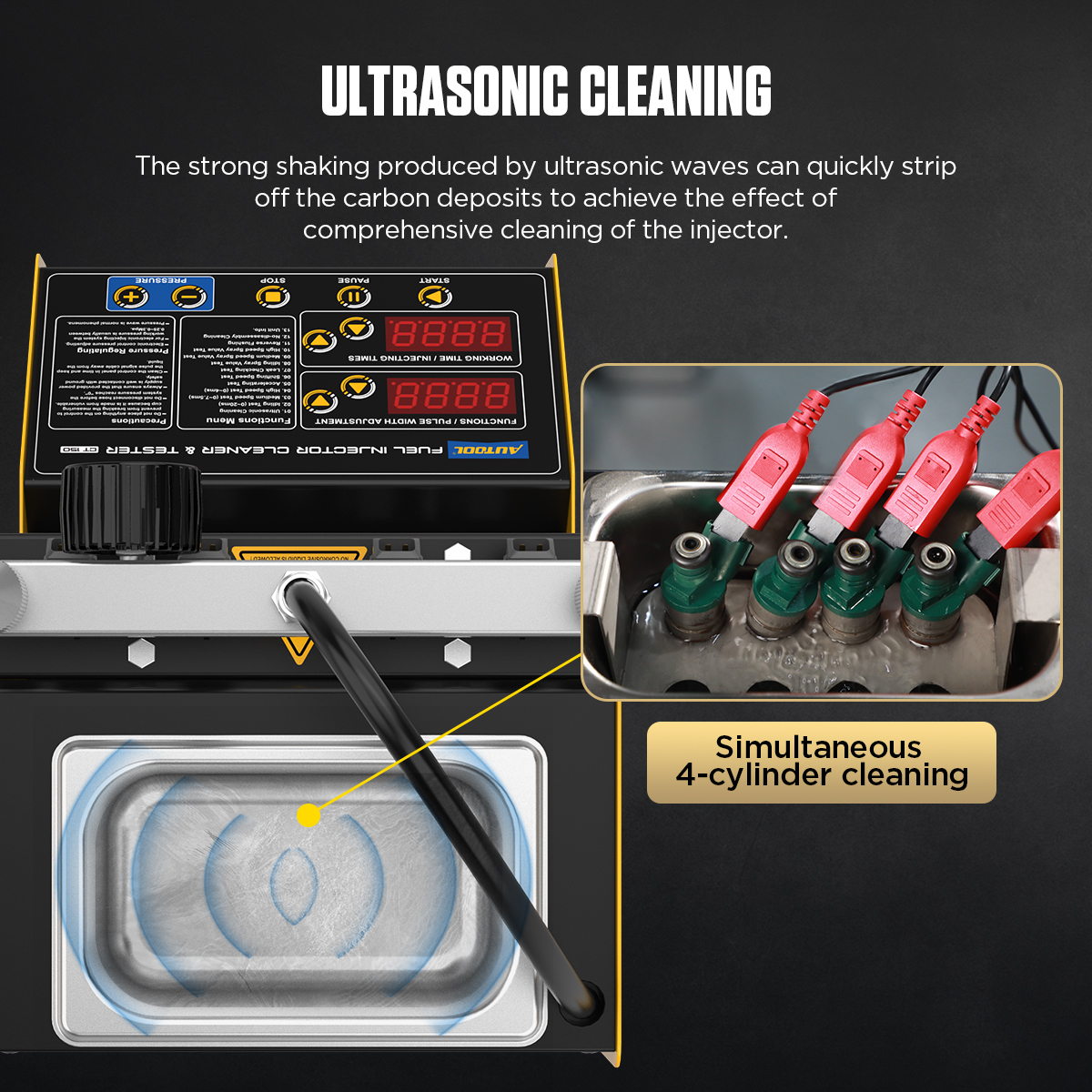

- Step 2: Turn on the ultrasonic system allowing the ultrasonic energy to dislodge any particles that build up inside the injectors. After cleaning, the remaining cleaning fluid can be recycled.
- Step 3: Fixed injectors on the main machine, testing injectors for resistance, shorts, and current draw. The test liquid can be added to the half of the glass tube.
- Step 4: Performing leak test, spray pattern, and flow rate testing on the flow bench. The injectors are now returned to the flow bench for retesting of all functions.

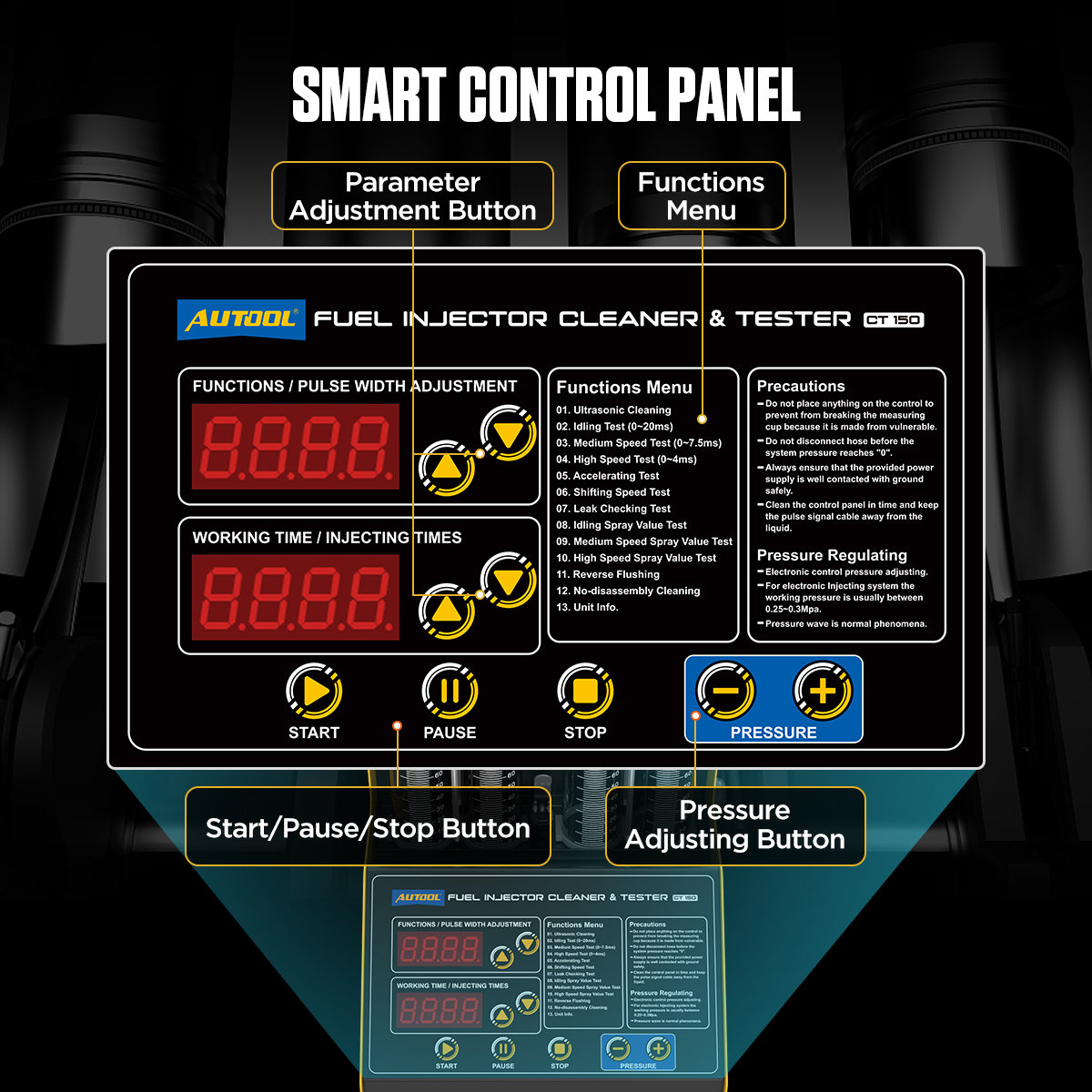

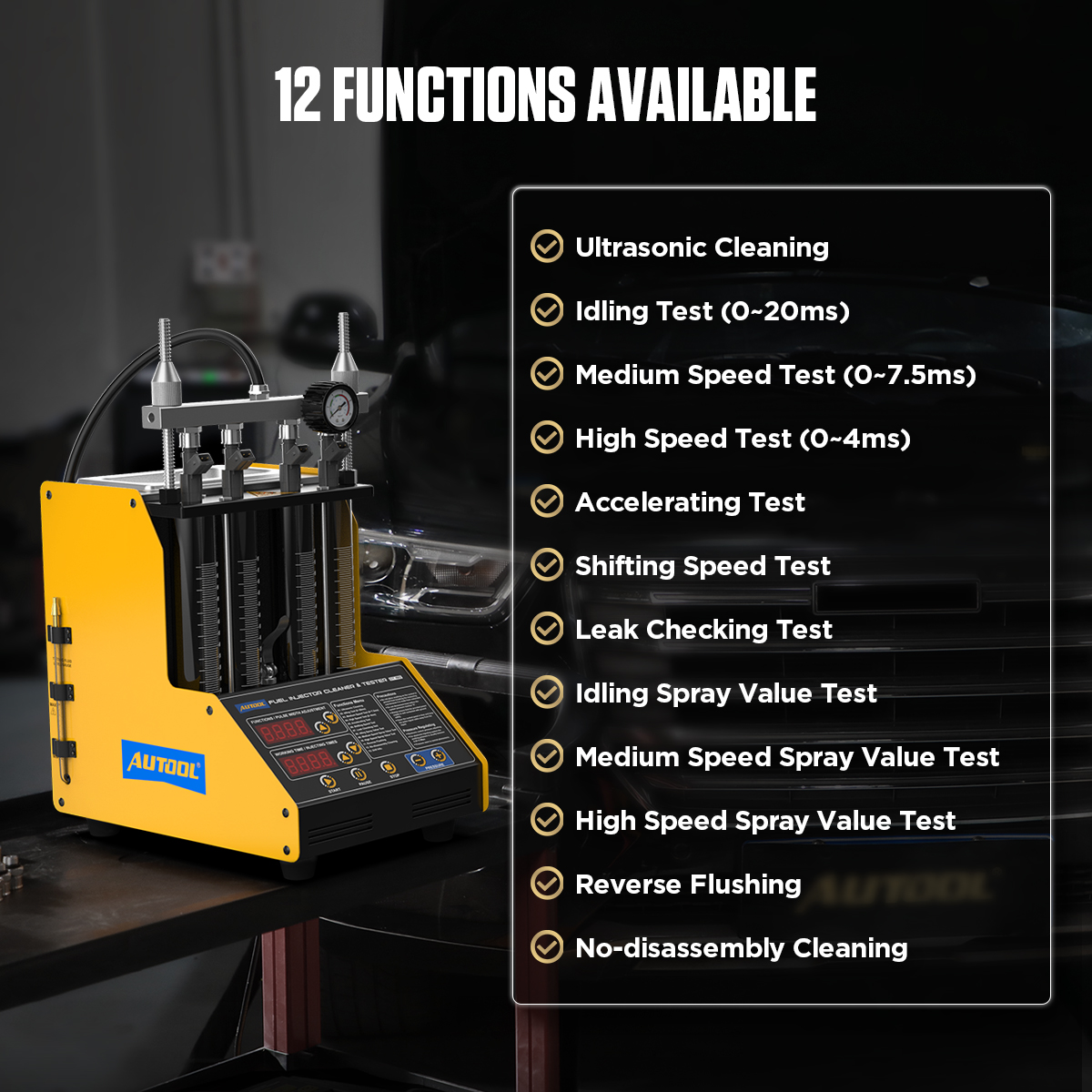

AUTOOL CT150 Fuel Injector Tester & Cleaner Machine Main Functions
- Cleaning petrol injector with ultrasonic
- Cleaning spark plug. Put spark plug into cleaning tank, input clean fluid, and begin clean
- Testing injector injection in different situations, checking leaking and blocking
- Cleaning injector without disassembly (need extra accessory and extra fee, choose by yourself)
- Cleaning throttle valve without disassembly. (need extra accessory and extra fee, choose by yourself)
- Cleaning and test motorcycle injector, testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee, choose by yourself)*Fuel Injector Cleaner- Clean Your Fuel Injectors Without Removal.

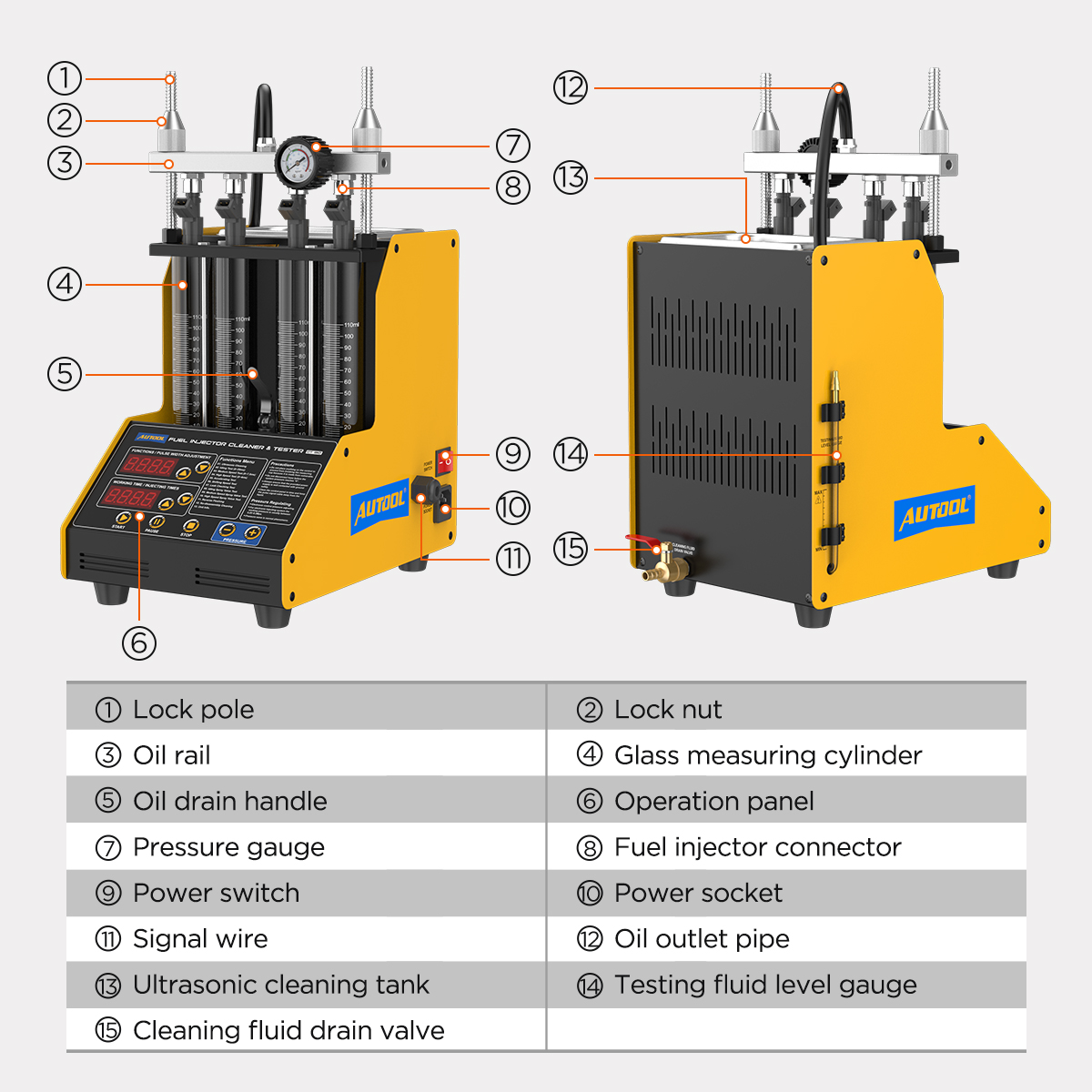

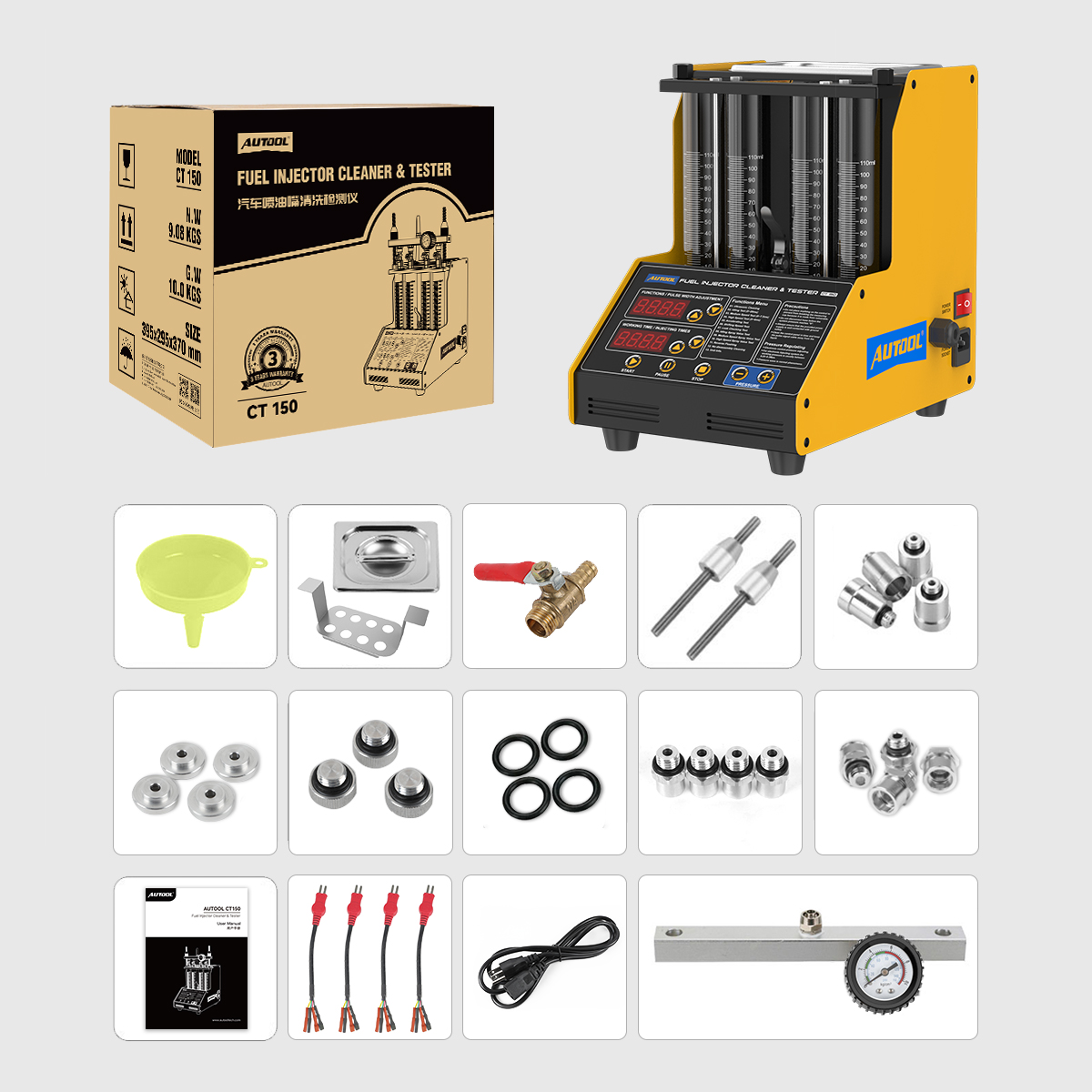

Packing List
- 1 x CT150 Unit
- 1 x Refilling Funnel
- 2 x Lock Pole & Nut
- 1 x Testing Pad
- 3 x Plug
- 2 x Extended Plug
- 1 x Oil Rail
- 1 x Oil Drain Valve
- 4 x Adapter for Fixing Injector on Machine
- 4 x Linkage

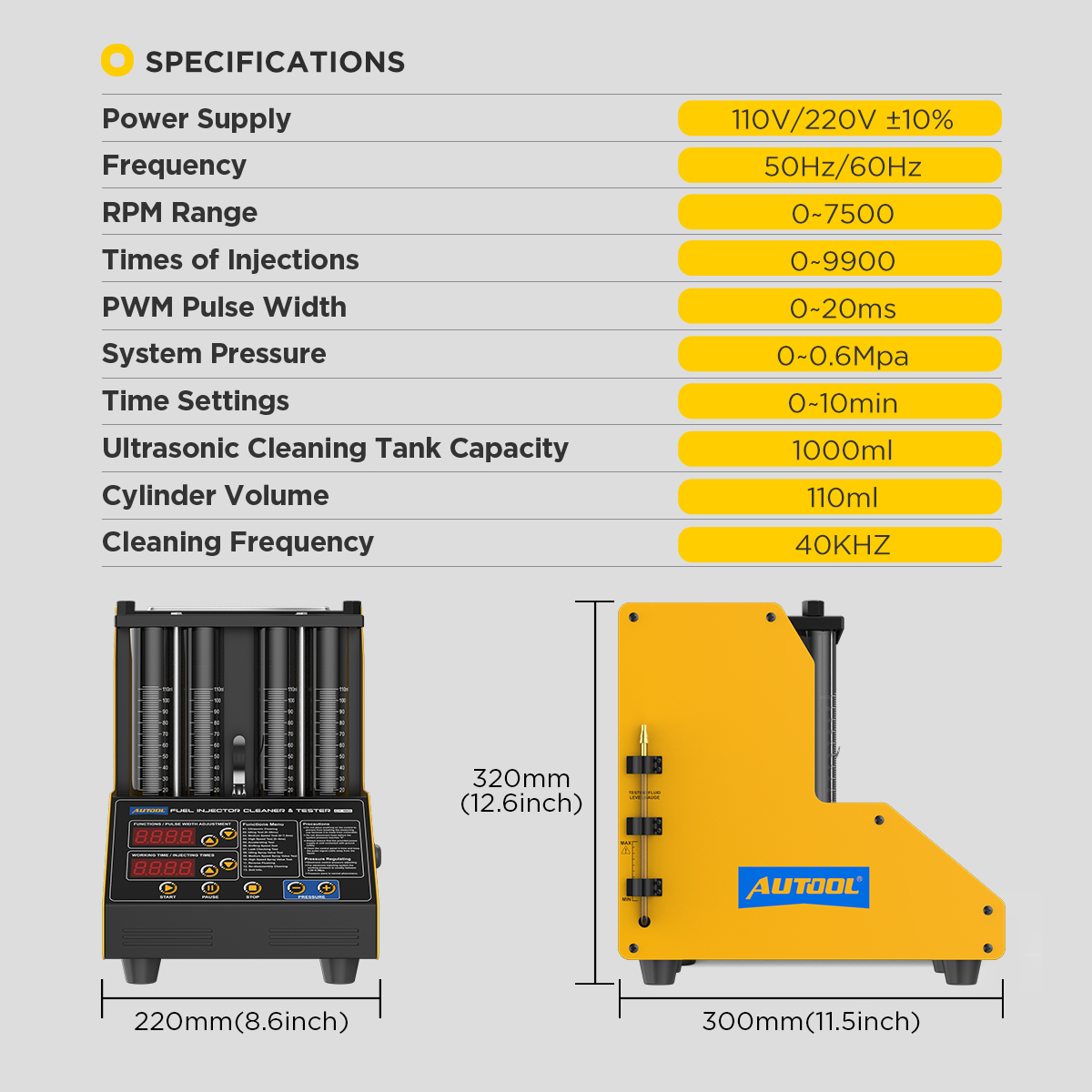

| Weight | 10 kg |
|---|---|
| Dimensions | 15.7 × 14.9 × 11.8 cm |
| Brand Name | AUTOOL |
| Support for | Automobile fuel nozzle cleaning detector |
| Function | Car/motorcycle Fuel Injector Cleaning and Testin |
| Material | Aluminum alloy |
| Feature 2 | Support almost all 12V car petrol injector |
| Feature 4 | Support Spark Plug Throttle Valve Clean |
| Fuel Tank Capacity | 1000 ml TESTER CLEANER |
| Fit for | Gasoline car motorcycle injector |
| Vehicle Type | Motorcycle, Passenger Vehicle |
| Speed Range | 0~7500 rpm |
| Injecting Times | 0~9900 Step: 100ms |
| System Pressure | 0~0.6Mpa (adjustable) |
| Power of Ultrasonic Cleaning | 70W |
| Capacity of Measuring Cylinder | 125 ml |
| OBD Interface | CAN, EOBD, OBD, OBDII |
| Frequency | 50HZ±0.5 |
